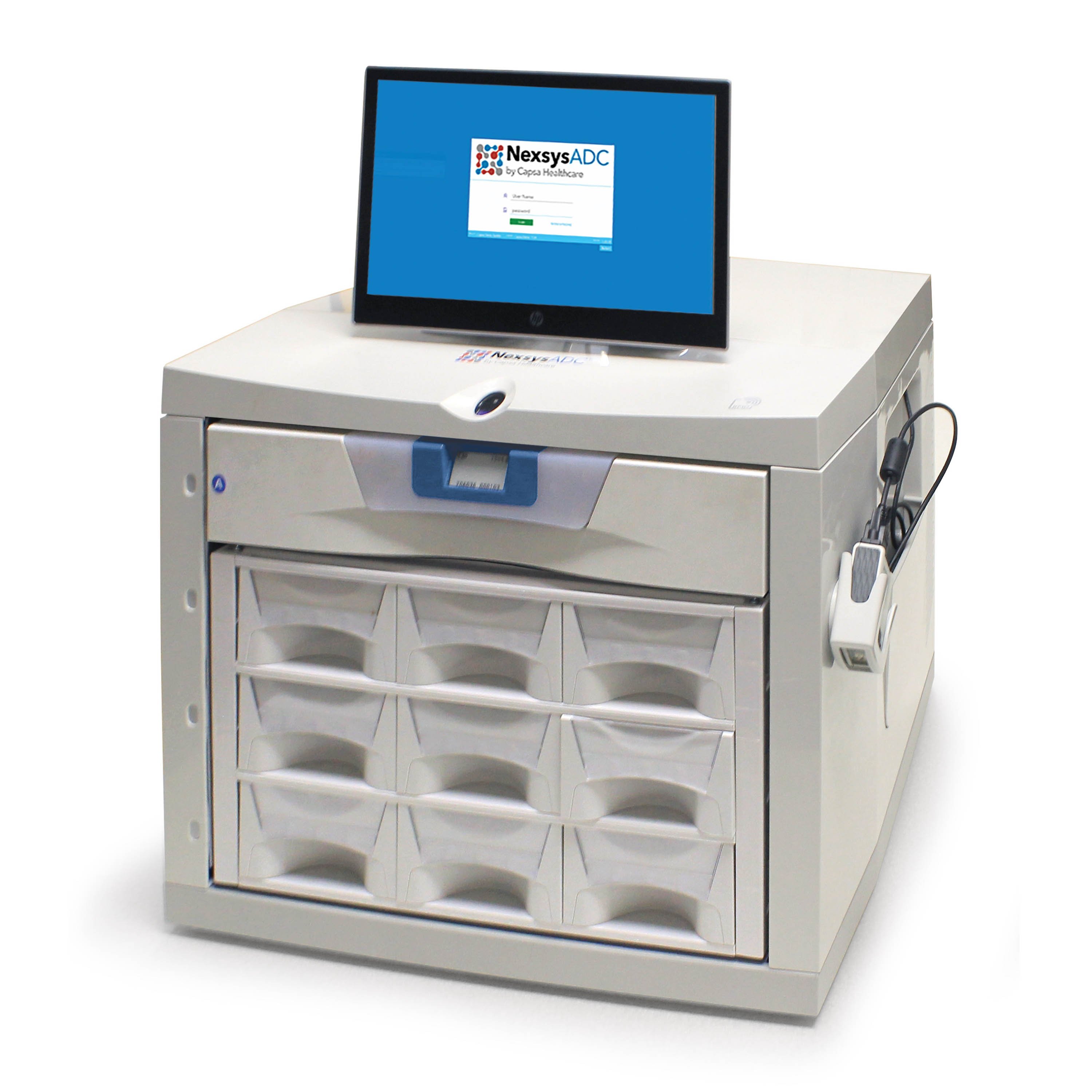

Capsa NexsysADC™ 4T Automated Dispensing Countertop Cabinet, Bundle 1

The NexsysADC™ Automated Dispensing Cabinet is a unique and innovative solution that is now available in a compact countertop size for any healthcare setting that handles controlled substances and high-value medications and supplies. Whether it is a long-term care facility, hospice, behavioral health, veterinary, or surgery center, the NexsysADC™ 4T provides cutting-edge technology and safeguards to safely store and dispense medications and supplies at the point of care. What makes the NexsysADC™ 4T different from the main cabinet version is its smaller size, which can accommodate smaller formulary requirements, budgets, and spaces. This makes it a more cost-effective option (about 40% lower cost than alternative automated dispensing cabinets) that can benefit even more healthcare settings.

With NexsysADC™ 4T Compact Automated Dispensing Cabinet, you can have a high-powered, safe medication dispensing system wherever higher security is needed. At all times, you know what medications are inside each NexsysADC 4T, who is accessing them, and what medication is pulled or dispensed for a specific patient or procedure. Tamper-evident hardware and software deter diversion and misplacement.

Key Features:

• Storage zones for:
  • Controlled Medications & Substances: Controlled and high-value medications are safely guarded in CAMs (controlled access modules), which are individual cells with tamper-evident locking lids designed to hold single doses of medication
  • Open Cell Medication Bins: Routine meds and non-controlled doses are efficiently managed in dividable, locked open-matrix bins with pick-to-light guidance. Bins can be set up to accommodate a wide variety of package types and sizes
• Touch screen computer with integrated barcode scanner
• 100% Tracking & Tracing, from log-in to log-out, with advanced security and sign-in
• Infinitely safer than manual 'tackle box' methods for stat doses/starter doses/"E-Kits"
• Cloud-based, HIPAA-compliant system provides 24/7 access to inventory information, user tracking, electronic ordering, and integration with your management software system
• Full reporting package to give valuable data and feedback on system operation, grouped by Inventory, Activity, User, Billing, and Patient
• NexsysADC™ meets the highest standards for cyber security and HIPAA compliance (ISO 27001:2013 Certified)

NexsysADC™ 4T Cabinet Bundle 1 Includes:

• Cabinet Configuration:

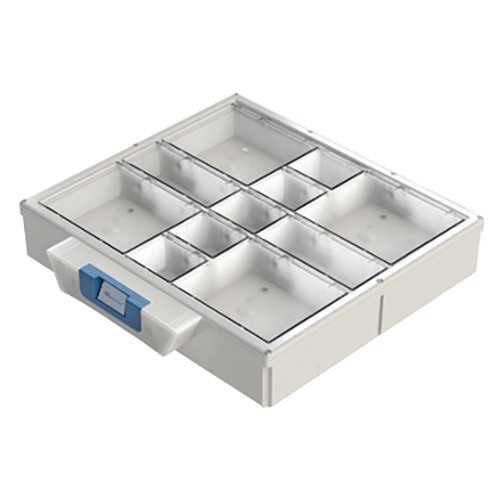

  • One 3" CAM (Controlled Access Module) with 11 locking cells

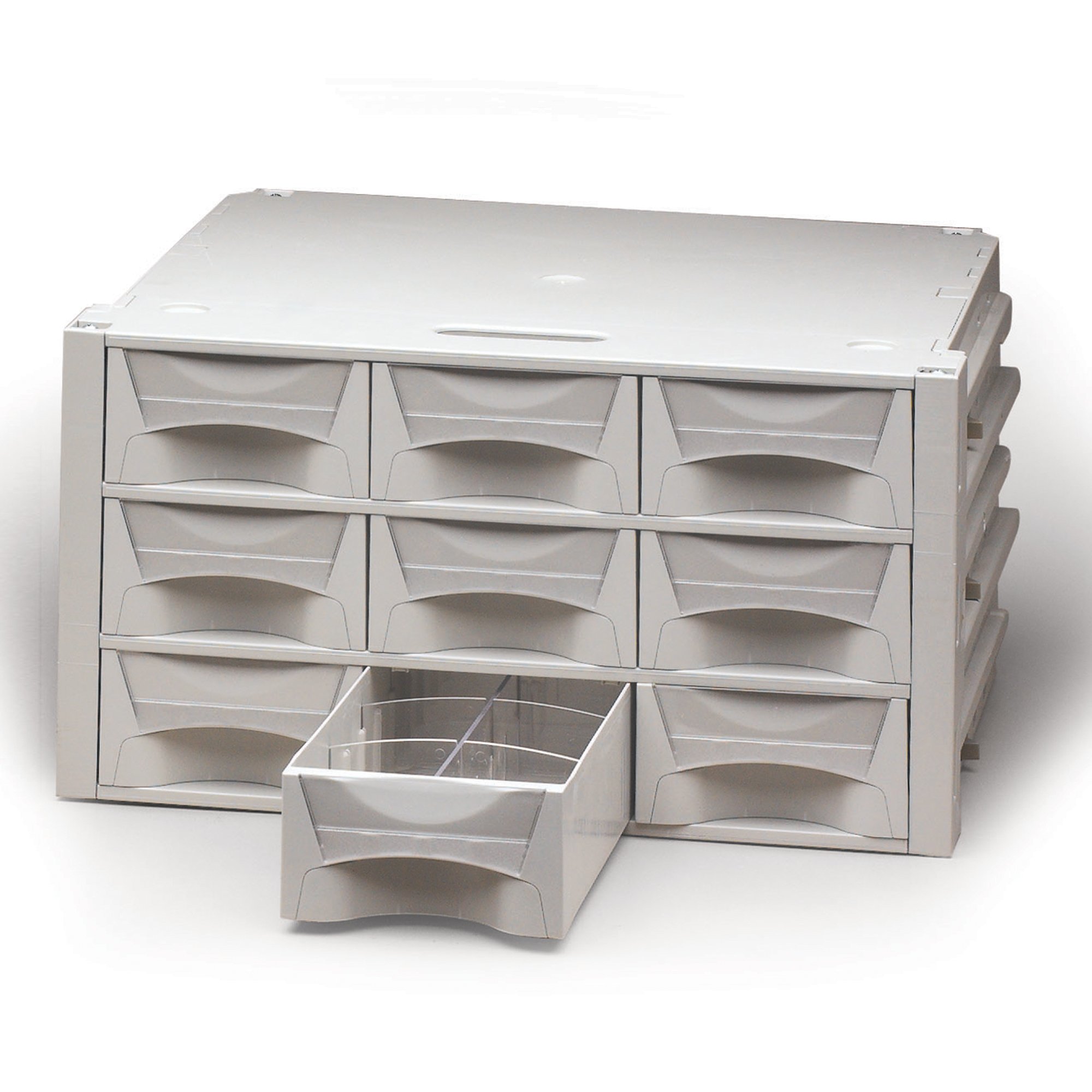

  • One three-tier open cell medication bins (9 bins, self-configurable)
• 14" Touchscreen Monitor
• Side-mounted barcode scanner (2D)
• Biometric finger scanner
• Keyboard
• Remote implementation/training
• First year annual license & software fee (please note that an additional annual license and software fee are required for subsequent years)
• 1-year warranty

Technical Specifications:

• Overall Dimensions (with Monitor): 23.5" W x 20.4" D x 26" H
• Cabinet Size: 23.5" W x 20.4" D x 17.7" H
• Product Weight: 110 lbs
• Medication Capacity: holds up to approx. 150 SKUs
• Tiers: 4
• CAM (Controlled Access Modules):
  • CAM Size: 16.25" W x 13.375" D x 3" H
  • Cell Size:
    • 1 x 1 Cell: 2.76" W x 2.37" D x 2" H
    • 1 x 2 Cell: 5.78" W x 2.37" D x 2" H
    • 2 x 2 Cell: 5.78" W x 4.86" D x 2" H
• Open Cell Medication Bins:
  • 3-Tier (9 Individual Bins): 18" W x 16" D x 9.75" H, 21.5 lbs
  • Single Cassette Bin: 5.25" W x 11.5" D x 2.5" H
• Monitor: 14" HD LTC with multi-touch interactivity, adjustable, attached (distance behind monitor to wall must be 13" minimum)
• Windows 10 embedded (IOT) operating system
• Ethernet, WiFi networking
• Uninterrupted Power Supply (UPS) 900W, 1500VA APC Backup UPS Pro
• Power Requirements: Supports 100-240VAC, 50/60 Hz, 10 Amps (Power supply auto-senses input voltage)
• Standard 120V Power Cord
• USA Patents: 10,045,899; 10,045,900
• Metal mounting plate, hardware, and template included
• Mounting requirements for atop a countertop or cart:
  • Weight Capacity: approx. 150 lbs. (loaded)
  • Minimum footprint of 25" W x 27" D to allow for 2-3" around the side of the cabinet to provide airflow to the electronics
  • Ability to drill through countertop or cart top to attach mounting plate
  • Suggested standard countertop height (30"-35") for ergonomic access
• Construction: Formed steel, aluminum, high-density polymer work surface
• Finish: Powder coat

Also Available:

• NexsysADC™ 4T Automated Dispensing Countertop Cabinet, Bundle 2 (NX-4TBDL-2)
• NexsysADC™ Automated Dispensing Main Cabinet (10-Tier), Bundle 1 (NX-MAINBDL-1)
• NexsysADC™ Automated Dispensing Main Cabinet (10-Tier), Bundle 2 (NX-MAINBDL-2)

NexsysADC™ 4T is Designed For:

• Secure drug storage at healthcare facilities with smaller formulary requirements and compact spaces
• Offsite control of all medications or supplies, especially controlled and high-value medications
• Full tracking of all interactions
• For Senior Care/LTC facilities to manage onsite starter doses, STAT doses, 1st doses, electronic emergency kits ("E-Kit")
• For Any Care Site handling controls and expensive doses or supplies (hospice, behavioral health, ambulatory surgery centers, veterinary, education simulation)
• A locked-down drug safe to mitigate the theft and loss of controlled medications
• Tight inventory management and secure narcotics storage
• Cost-cutting (decrease or eliminate local pharmacy delivery fees)
• Billing control
