Product Description

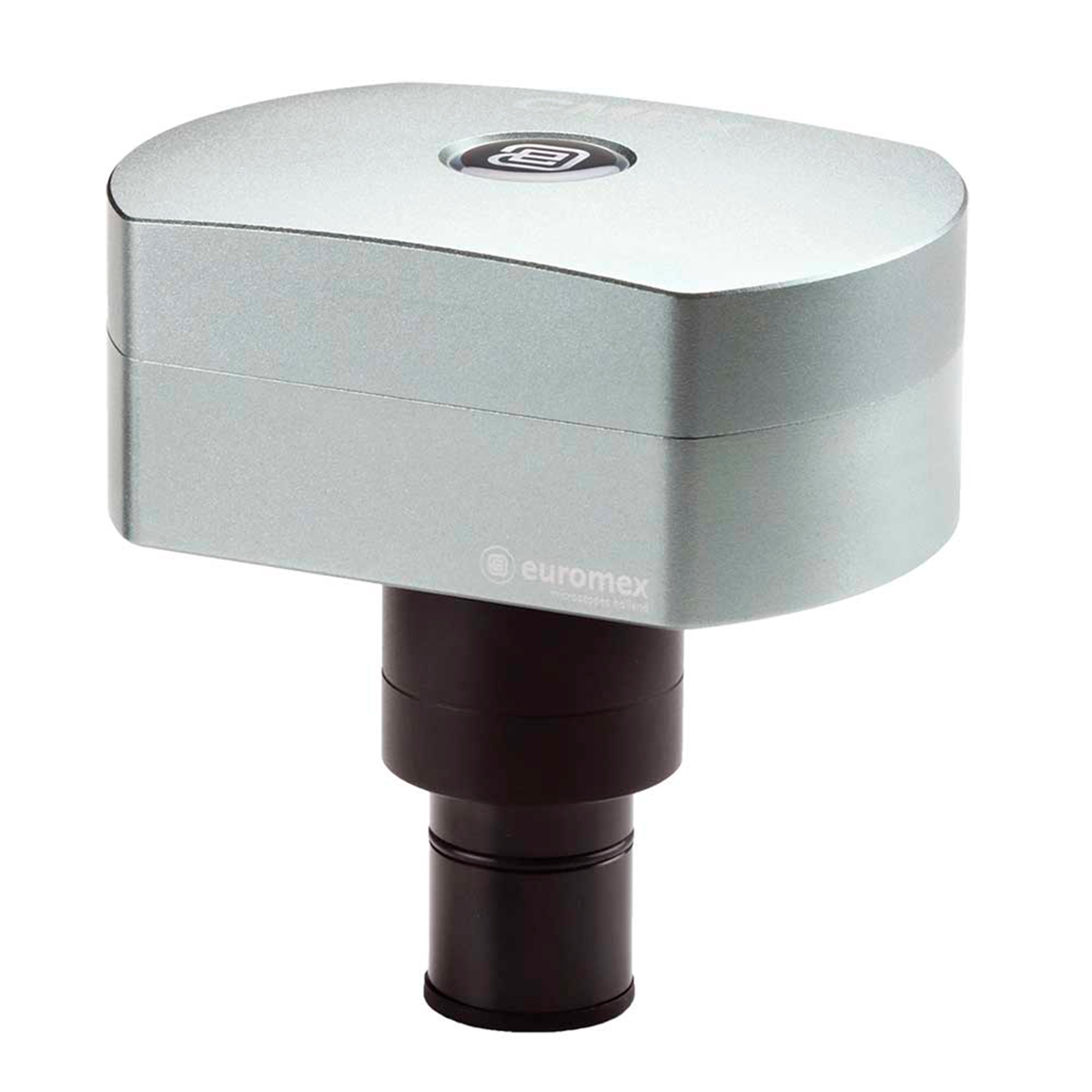

The CMEX-18 Pro High-Speed USB-3 Cameras with ImageFocus Alpha capture and analysis software are the perfect solutions for today’s educational, laboratory and industrial microscopy needs. Besides taking images and videos, the ImageFocus Alpha software allows measurements on still and live images and to perform annotations on captured images.

Features:

  • High speed camera

  • 18MP CMOS sensors with 12-bits grayscale conversion and a 24-bits color rendering

  • Excellent software

  • USB- 3 data interface enabling fast frame rates (USB 2.0 compatible)

  • Low signal/noise ratio

Technical Information:

Sensor CMOS 1/2.3-inch
Pixels 4912 x 3684 pixels, 18.0MP
Scan Mode Progressive, rolling shutter
Pixel Size 1.25µm x 1.25µm
Filter RGB
Mount C-mount
Max Frames (p/sec)

Up to 6 frames per second (4912 x 3684 pixels)

Up to 18 frames per second (2456 x 1842 pixels)

Up to 32 frames per second (1228 x 922 pixels)

Exposure Time 0.1ms – 2000ms
Exposure Automatic or manual
White Balance Automatic or manual
Grayscale Conversion 12-bits
Color Rendering 24-bits
Dynamic Range 65db
Signal / Noise 42db
Sensibility V/lux-sec 1.3
Data Interface USB 3.0 high speed 80Mb/s
Operation 0 – 50°C, 30 – 80% humidity
Storage Temperature -20 to 60° Celsius
Power Supply 5VDC over PC USB Port
Housing Integrated CNC aluminum alloy

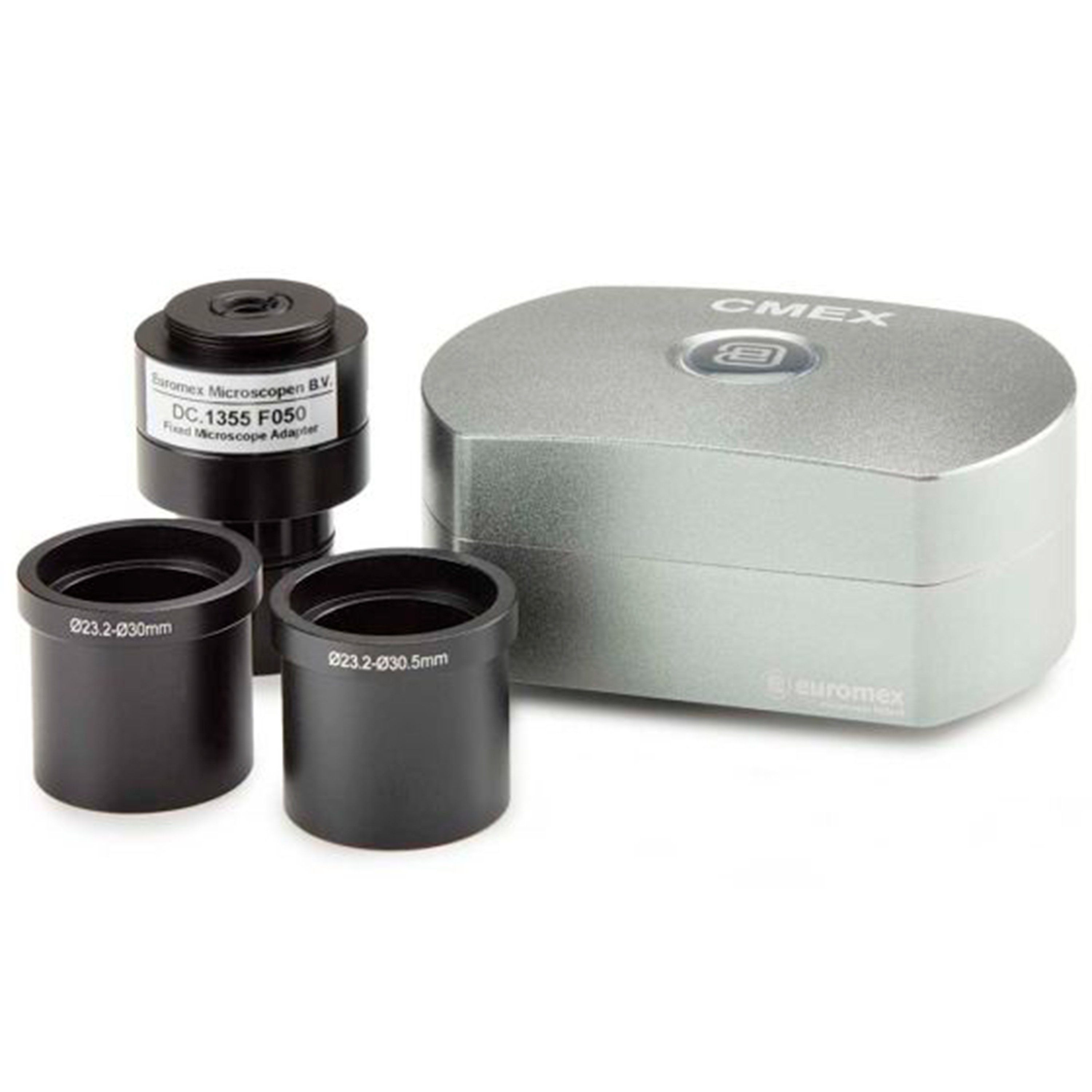

Supplied With USB 3 cable, 30 and 30.5mm adapters for stereo microscopes, 76x24mm calibration slide (1mm/100), carton box
Software ImageFocus Alpha capture and measuring software for Win 10/11 (32- and 64-bit configurations). A Mac OS version is available.
PC Requirements

Compatible with Intel Core 2, 2.8GHZ or higher, 2GB, USB-3 high-speed.

17-inch display is recommended as a minimum requirement.

Specifications

Specifications
Manufacturer Globe Scientific
Country of Manufacture China
Item Ships From New Jersey
