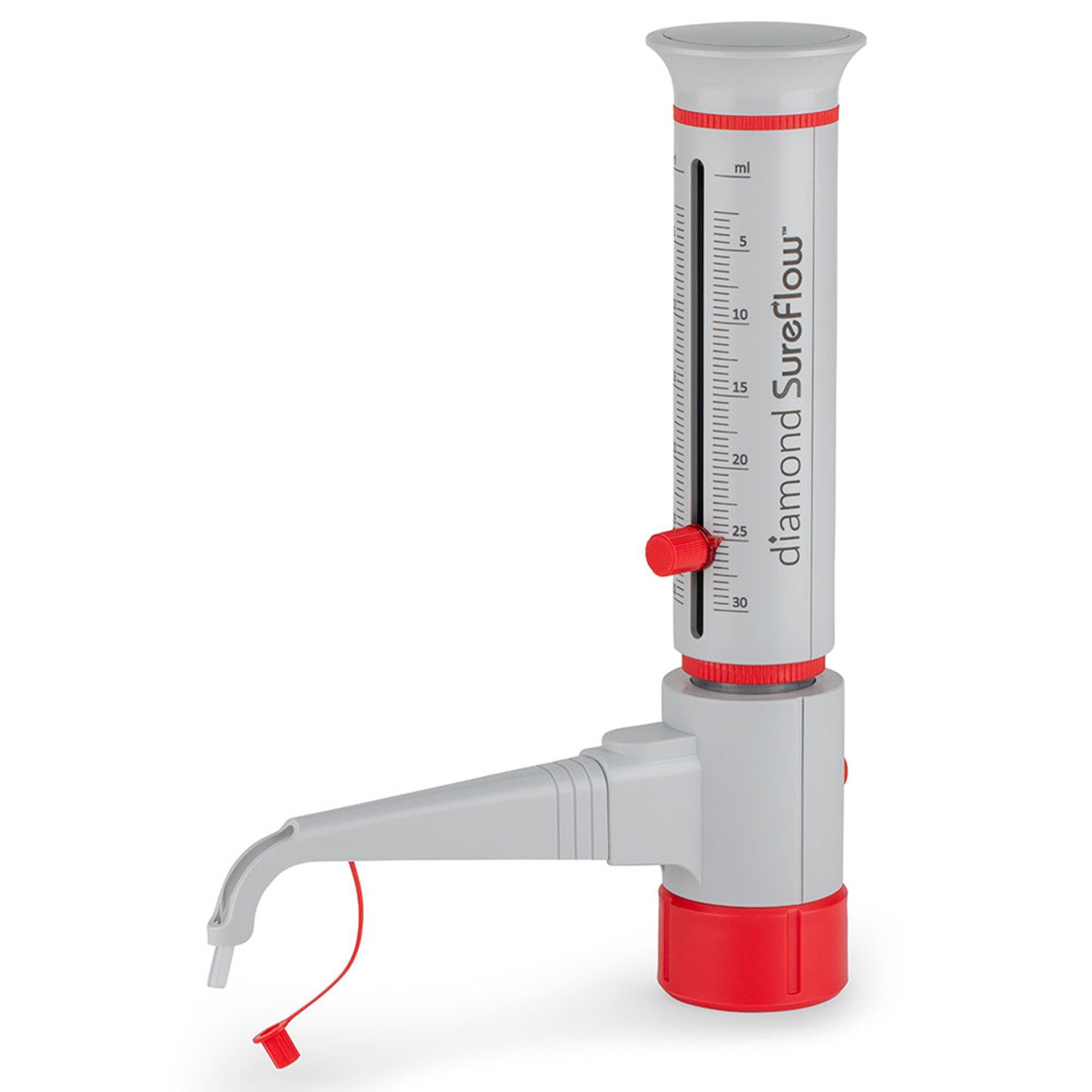

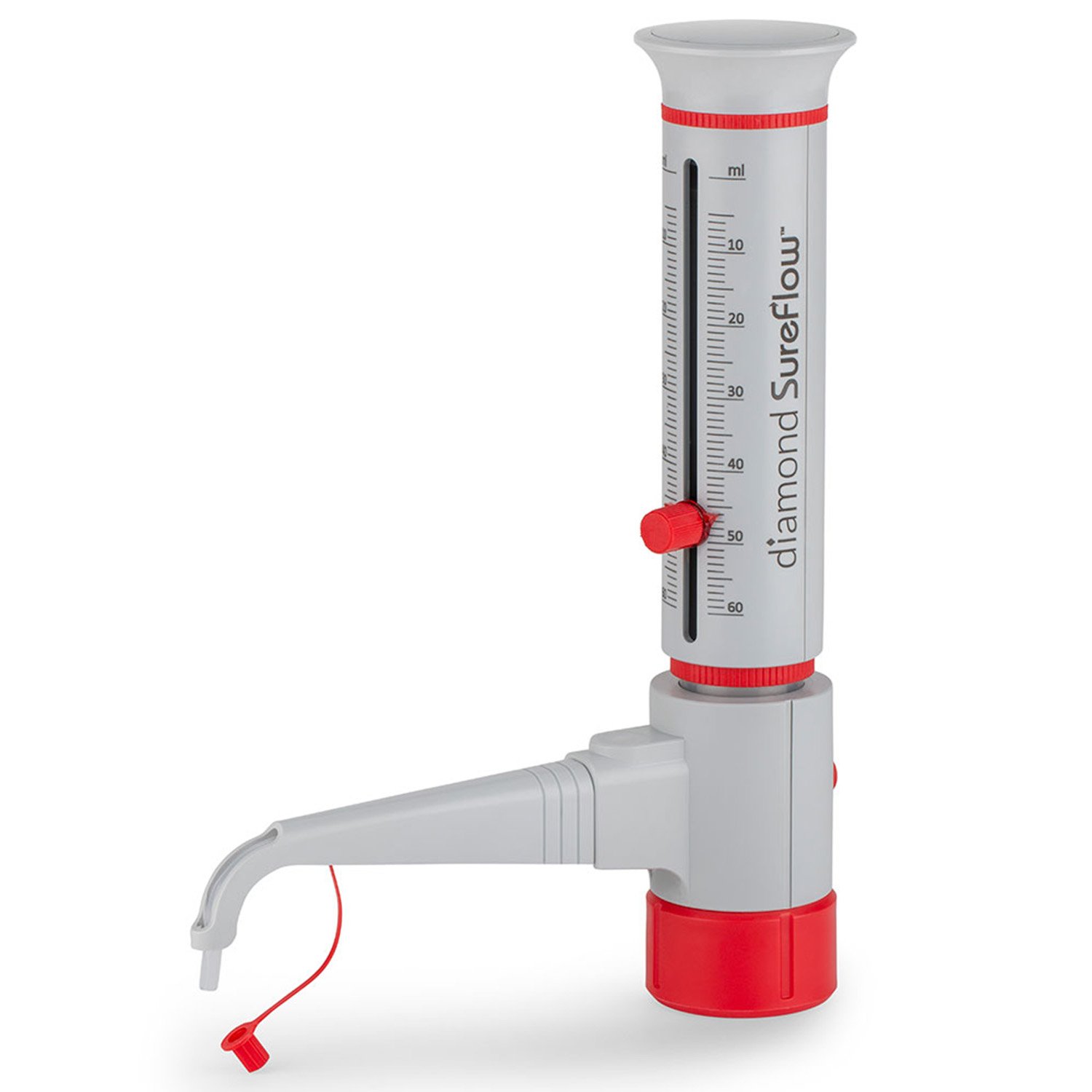

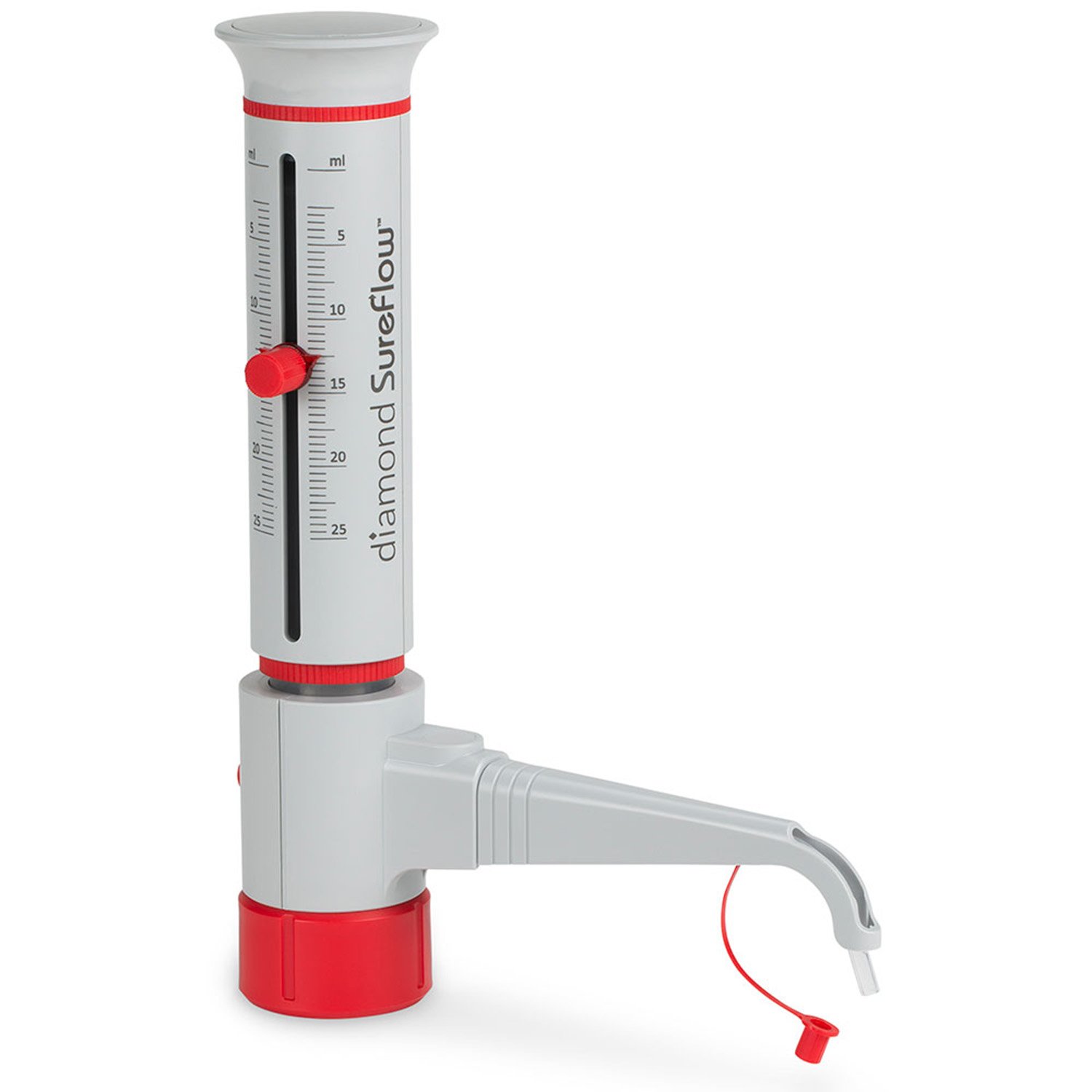

Diamond® SureFlow™ Standard Bottle Top Dispenser
Product Description
The Diamond® SureFlow™ Standard Bottle Top Dispensers is designed with several features to make the dispensing of your valuable laboratory reagents easier than ever. Its features include a unique piston design that allows cleaning and servicing without changing the calibration, a low-maintenance springless valve for higher reliability, and added chemical resistance. It also has dual graduations, a volume lock, and four additional bottle thread adapters apart from the 32 mm, no adapter needed, built into the bottle top dispenser.
Features:
- Unique piston design
- Springless valve
- Dual graduations

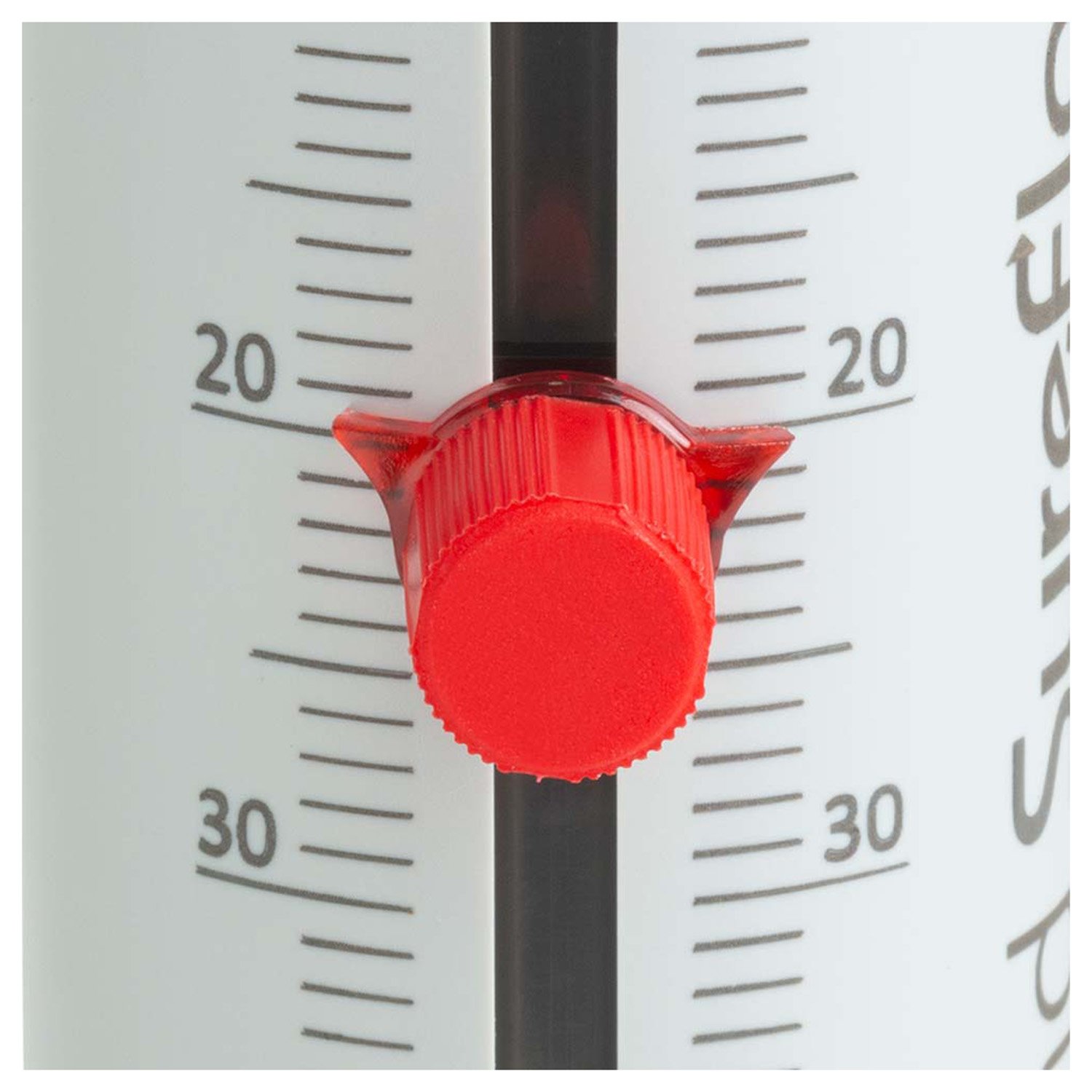

- Volume lock
- Fully autoclavable
- Single tool recalibrations
- Ergonomic design for easy dispensing
- Calibration meets EN ISO 8655-5 for uniform dispensing with a fully assembled dispenser
- Lower pressure for larger volumes helps reduce splashing
- Telescopic fill tube for bottles ranging in height from 170 mm to 300 mm
- Four Bottle Thread Adapters:
- Thread sizes: 28 mm, 38 mm, 40 mm, and 45 mm
Technical Specification:
- Operating Conditions:
- Temperature: +15°C to 40°C (59°F to 104°F)
- Vapor Pressure: Up to 500 mbar
- Density: Up to 2.2 g/cm³
- Kinematic Viscosity: Up to 500 mm²/second
- Autoclaving Conditions:
- Temperature: 121°C / 250°F
- Pressure: 1.05 bar / 15 psi
- Time: 20 minutes or less
Technical Information:
| Volume | Increment | Accuracy ± | Precision ± | ||
|---|---|---|---|---|---|

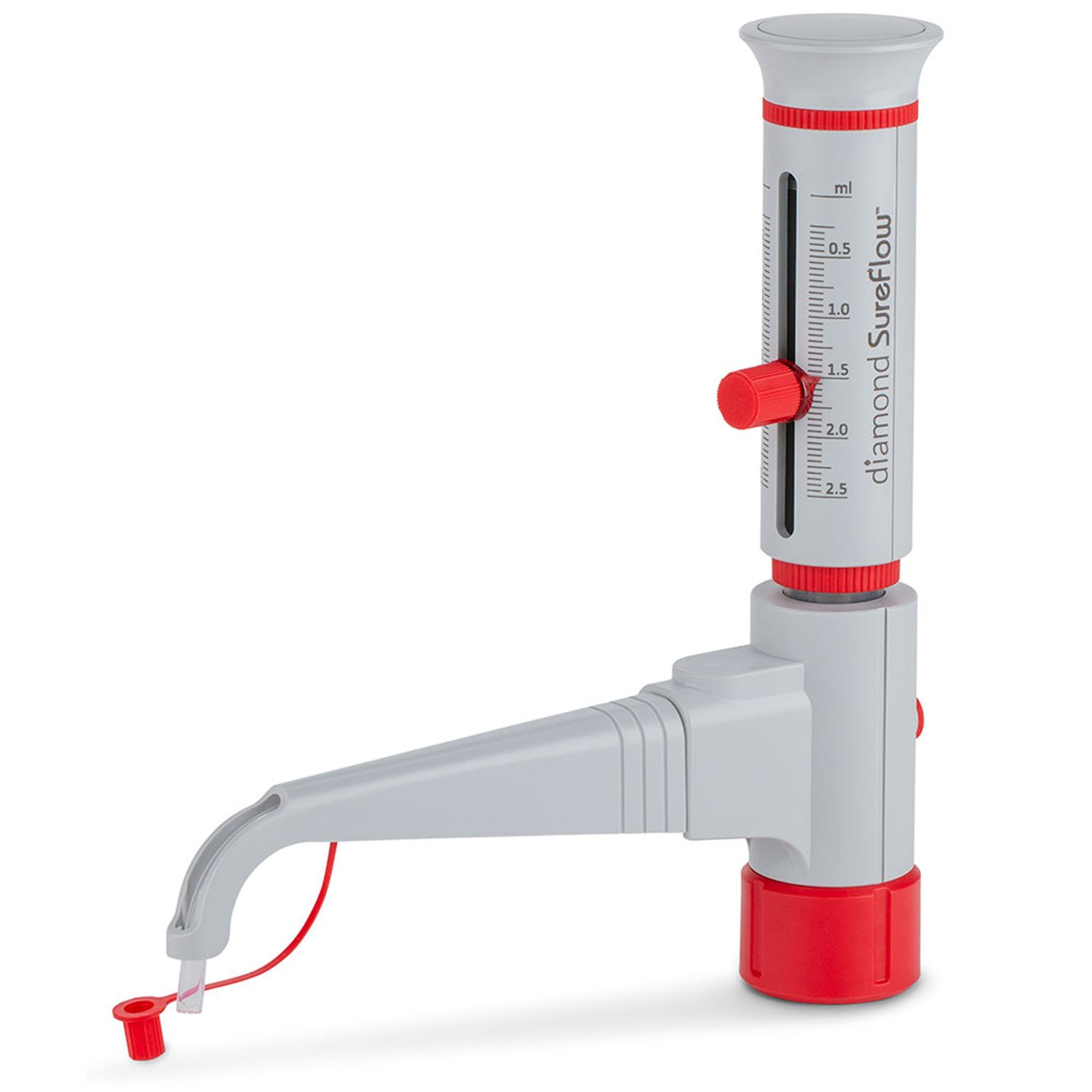

| 0.25 - 2.5 mL | 0.05 mL | 0.6 % | 0.015 mL | 0.2 % | 0.005 mL |

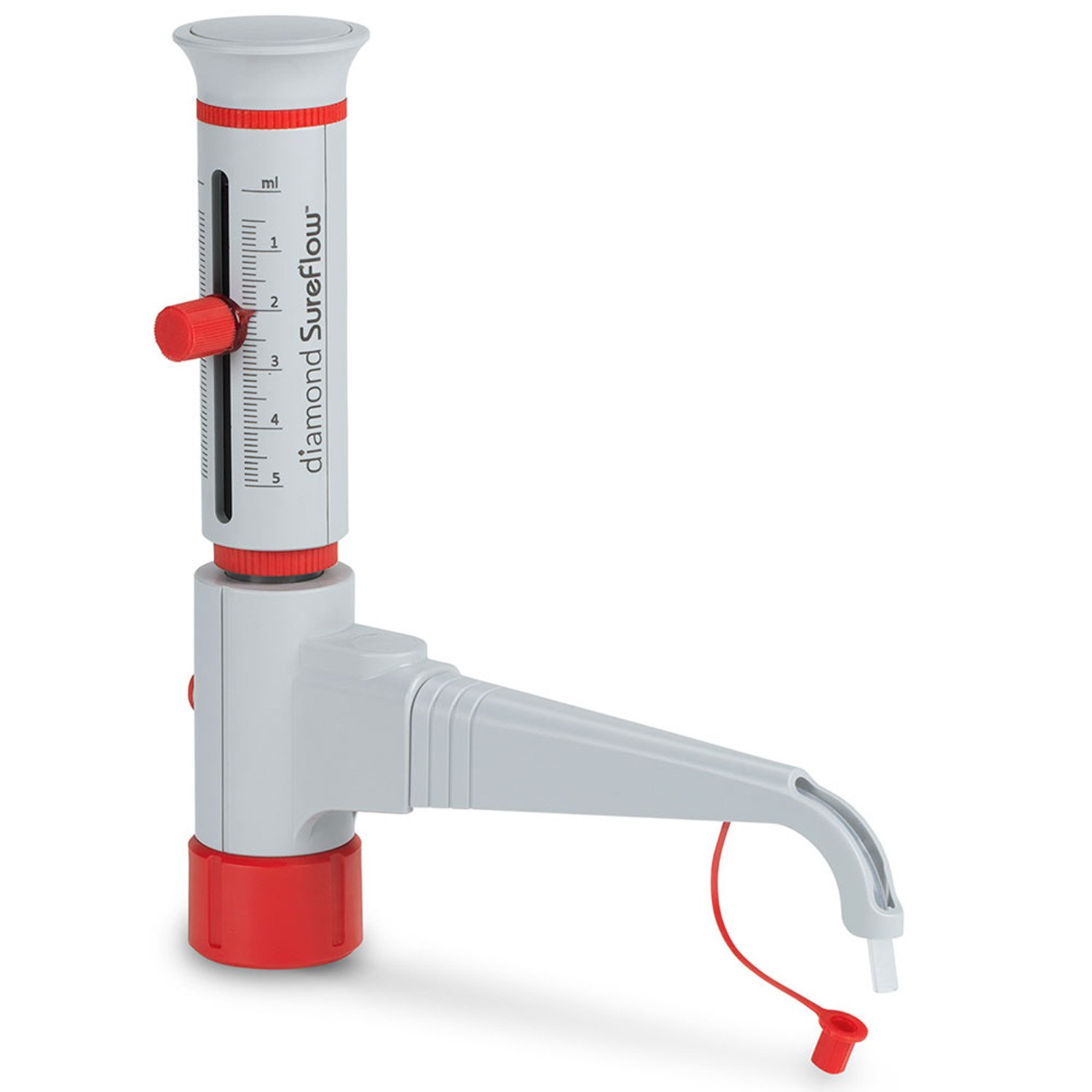

| 0.5 - 5 mL | 0.1 mL | 0.5 % | 0.025 mL | 0.2 % | 0.01 mL |

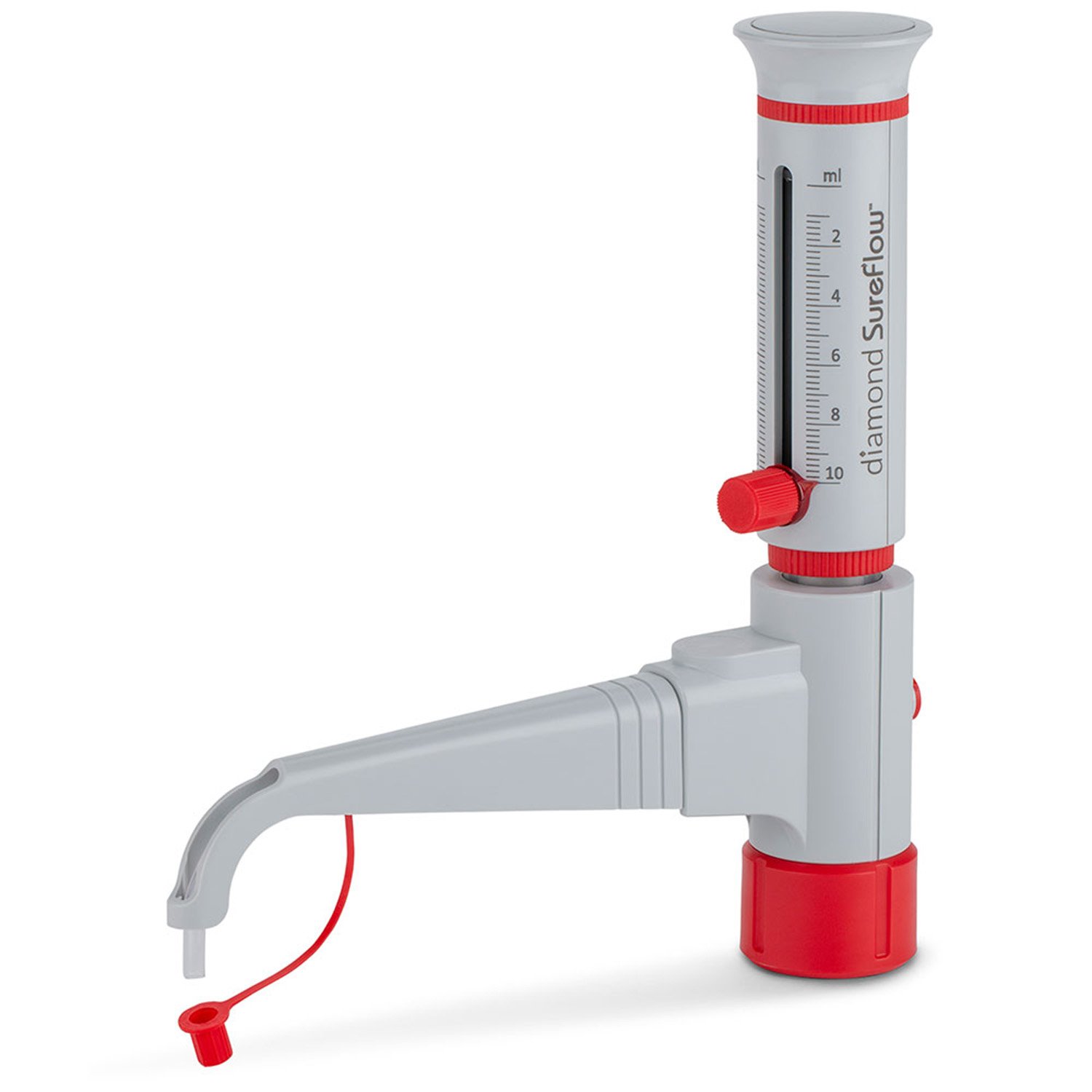

| 1 - 10 mL | 0.2 mL | 0.5 % | 0.05 mL | 0.2 % | 0.02 mL |
| 2.5 - 25 mL | 0.5 mL | 0.5 % | 0.125 mL | 0.2 % | 0.05 mL |
| 2.5 - 30 mL | 0.5 mL | 0.5 % | 0.15 mL | 0.2 % | 0.06 mL |

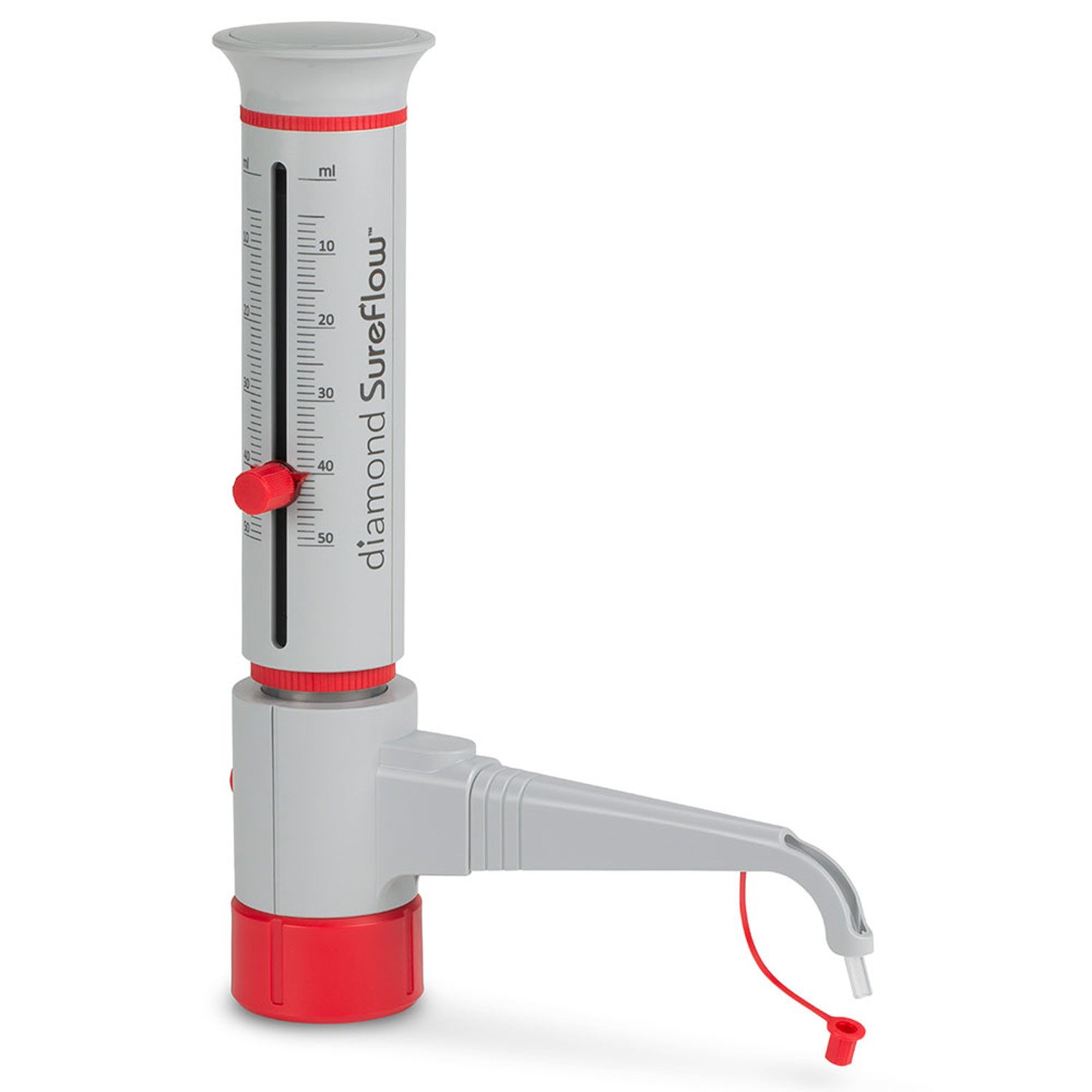

| 5 - 50 mL | 1.0 mL | 0.5 % | 0.25 mL | 0.2 % | 0.1 mL |
| 5 - 60 mL | 1.0 mL | 0.5 % | 0.3 mL | 0.2 % | 0.12 mL |

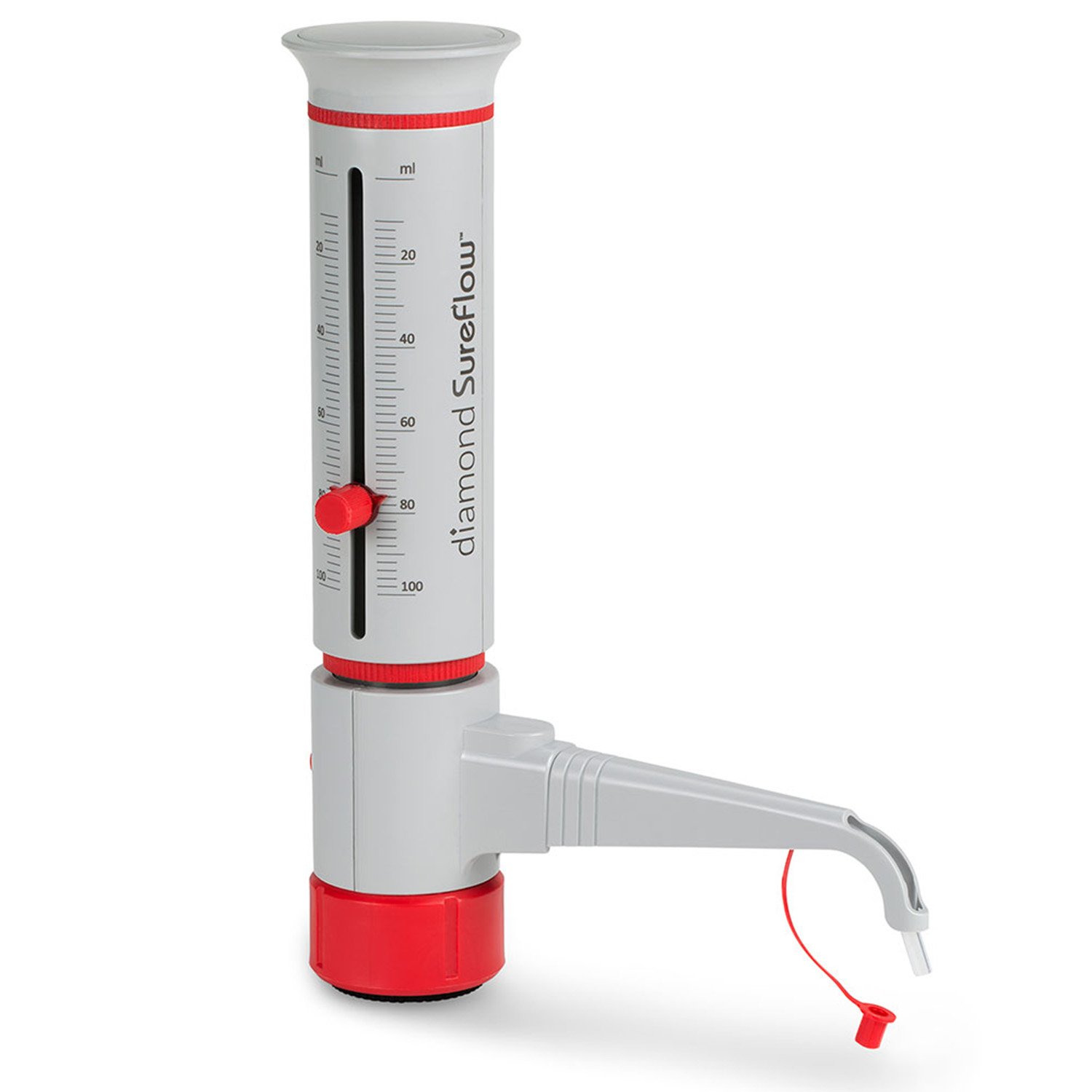

| 10 - 100 mL | 2.0 mL | 0.5 % | 0.5 mL | 0.2 % | 0.2 mL |

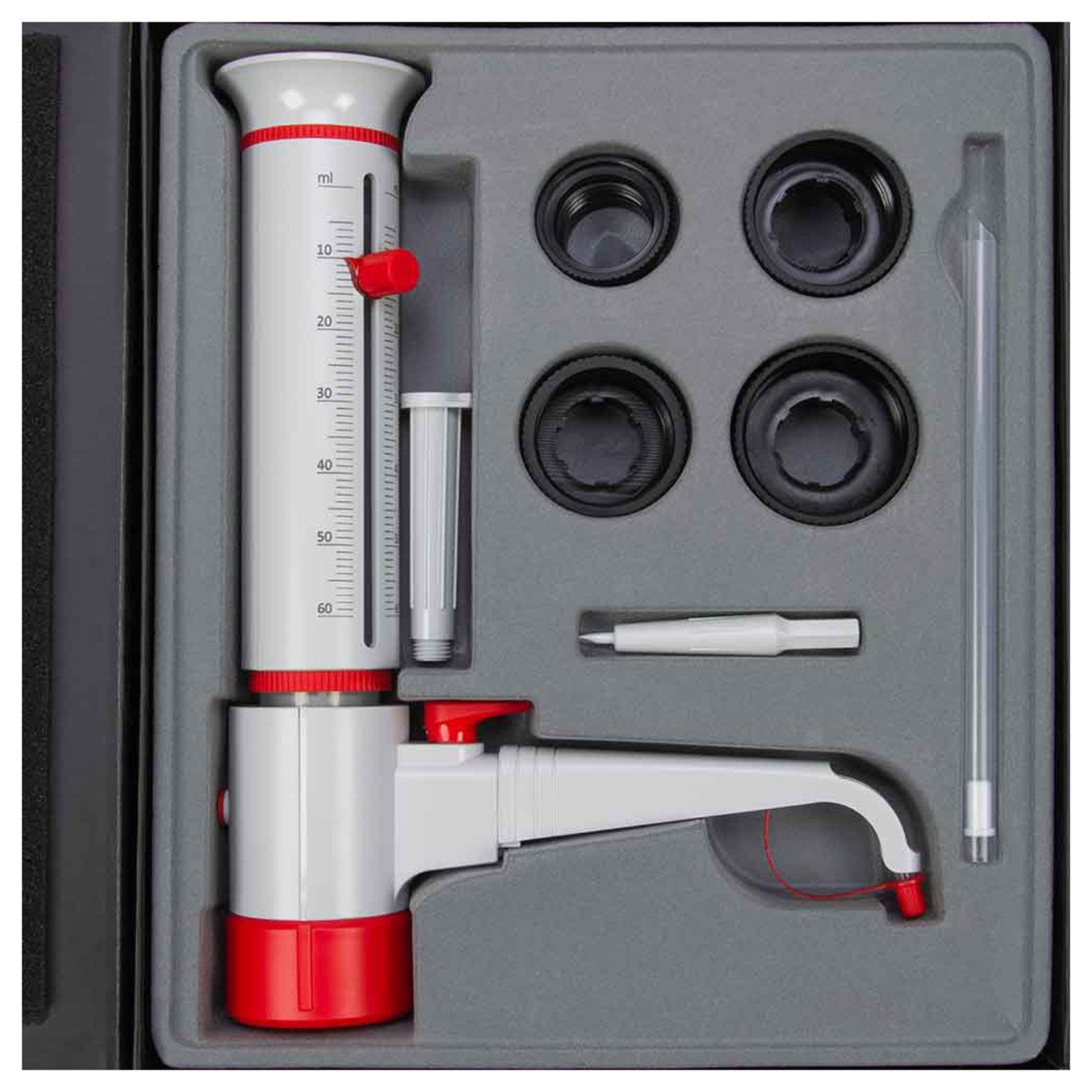

Package Contents: Bottle top dispenser, 4 Threaded bottle adapters, Telescopic fill tube, Calibration tool, Service tool, Connector (for 100 mL only) Thread size 40/32 mm, User manual, Certificate of conformity, Calibration certificate, and Warranty card.
Specifications
| Manufacturer | Globe Scientific |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | India |
| Item Ships From | New Jersey |
Literature
Returns
No return will be accepted by the seller for any reason without prior written authorization. Returns will be accepted within 30 days of shipment, only if products are in new and unused condition (must be in original, unopened carton/packaging) and accompanied by a health and safety declaration as regards potential contamination with hazardous materials due to customer use of the product. The manufacturer reserves the right to assess a minimum 20 percent restocking fee at their discretion. All shipping charges remain payable. This manufacturer assesses order cancellation fees if a submitted order is cancelled prior to shipment.
NOTE: Discontinued items, sterile products, and prefilled containers are NOT returnable. Also, Special Order Items are non-cancellable and not able to be returned as these are made to order.
