Product Description

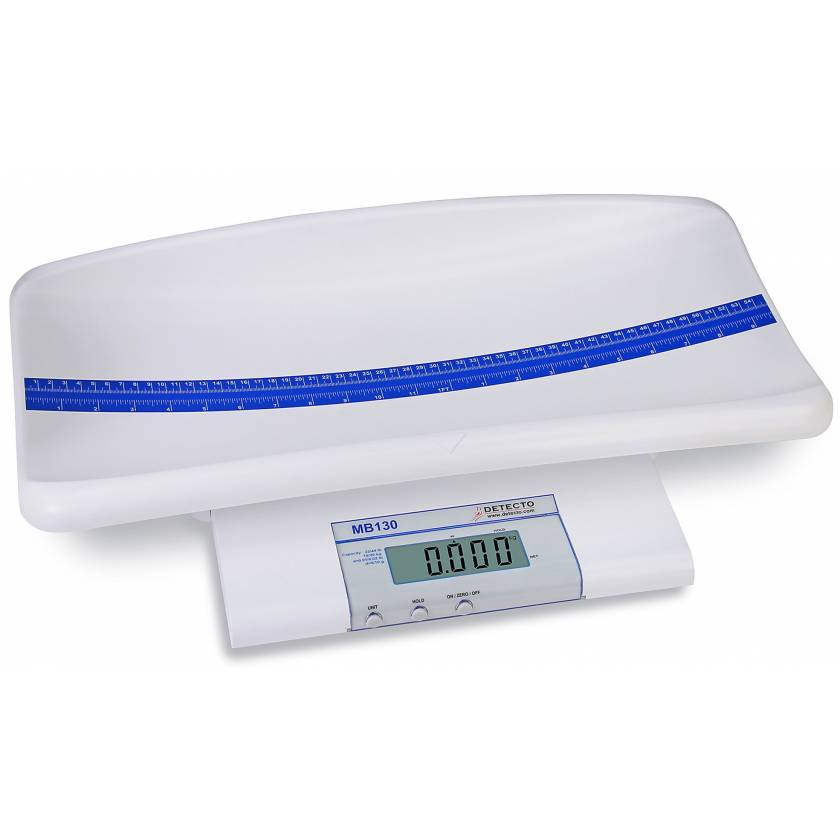

Babies feel at ease and safe in the extra-large weighing tray of DETECTO's MB130 scale.

  • With dual graduations ranging from neonatal to pediatric care (accurate to 0.01 lb / 5 grams), the MB130 digital scale features a removable tray which automatically converts the scale into a low-profile step-on toddler scale with a maximum capacity of 44 lb / 20 kg
  • Powered by one 9V alkaline battery (not included) or AC adapter (included) with Auto Shut-off feature after 2 minutes to conserve battery life
  • The 1" (25-mm) high LCD with 5-digit display provides highly-visible readouts in pounds and kilograms
  • The integral analog measuring tape (included) reads up to 21 9/16" (55 cm) with 1/16" (1 mm) increments
  • The convenient HOLD buttons on the scale retain the infant’s measurements on the display even after they are taken off the scale, so the patient can be attended to first before recording measurements
  • The easy-to-clean plastic tray is ideal for sterile environments and features a roomy space for babies to lay comfortably. The surface material is kind to the skin and is easy to disinfect.
  • The convenient Zero function allows the user to automatically subtract the weight of a blanket, toy, or diaper from the infant’s weight measurement
  • Weighing only 5 lbs, the MB130 is handy and lightweight for transporting to different locations
  • The optional model DLM digital length measuring rod can be easily mounted to the scale for an all-digital measuring station
  • The optional carrying case model MB-CASE eases portability and provides safe storage when not in use

Please Note: Image #3 and #4 shown MB130 with Digital Length Measuring Device DLM (not included)



  MB130
Capacity (lb)
0 - 22 lb x 0.01 lb / 22 - 44 lb x 0.02 lb
Capacity (kg)
0 - 10 kg x 5 g / 10 - 20 kg x 10 g
Unit of Measure
kg / lb
Function Keys
ON/ZERO/OFF, HOLD, UNIT
Stabilization Time
1-2 seconds
Operating Temperature
40°F - 105°F / 5°C - 40°C
Power one 9V battery (not included) or AC adapter (included)
Display 1" / 25 mm high, 5 digit LCD
Measuring Tape (included)
Up to 21 9/16" / 55 cm with 1/16" / 1 mm increments
Dimensions (Scale Base Only) 12.2" W X 12.6" D x 1.3" H / 31 cm W x 32 cm D x 3.3 cm H
Dimensions (Scale with Tray)
22" W X 13.1" D x 4" H / 55.9 cm W x 33.3 cm D x 10.2 cm H
Dimensions (Scale with Tray and Optional DLM)

24.6" W (expands to 34.4" W) x 16" D x 6.3" H / 62.5 cm W (expands to 87.4 cm W) x 40.6 cm D x 16 cm H

Dimensions (Weight Tray) 22" W x 11.3" D x 3.7" H / 55.9 cm W x 28.7 cm D x 9.4 cm H
Net Weight 5.4 lb / 2.4 kg
Shipping Weight 8 lb / 3.6 kg

Specifications

Specifications
Manufacturer Detecto Scales
Latex Free Yes
Actual Product Weight 5.4 lb
Overall Height 4"
Overall Width 22"
Overall Length 13.1"
Weight Capacity 44 lb
Country of Manufacture China
Item Ships From Missouri

Literature

pdf
(Size: 890.2 KB)

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.

Reviews

Ask a Question (1)

Customer Questions
Can this product do the Breast Milk Intake Function and if so, how?
This feature addendum to the user manual has been added as a .pdf to the item detail page in the Literature section.
