Product Description

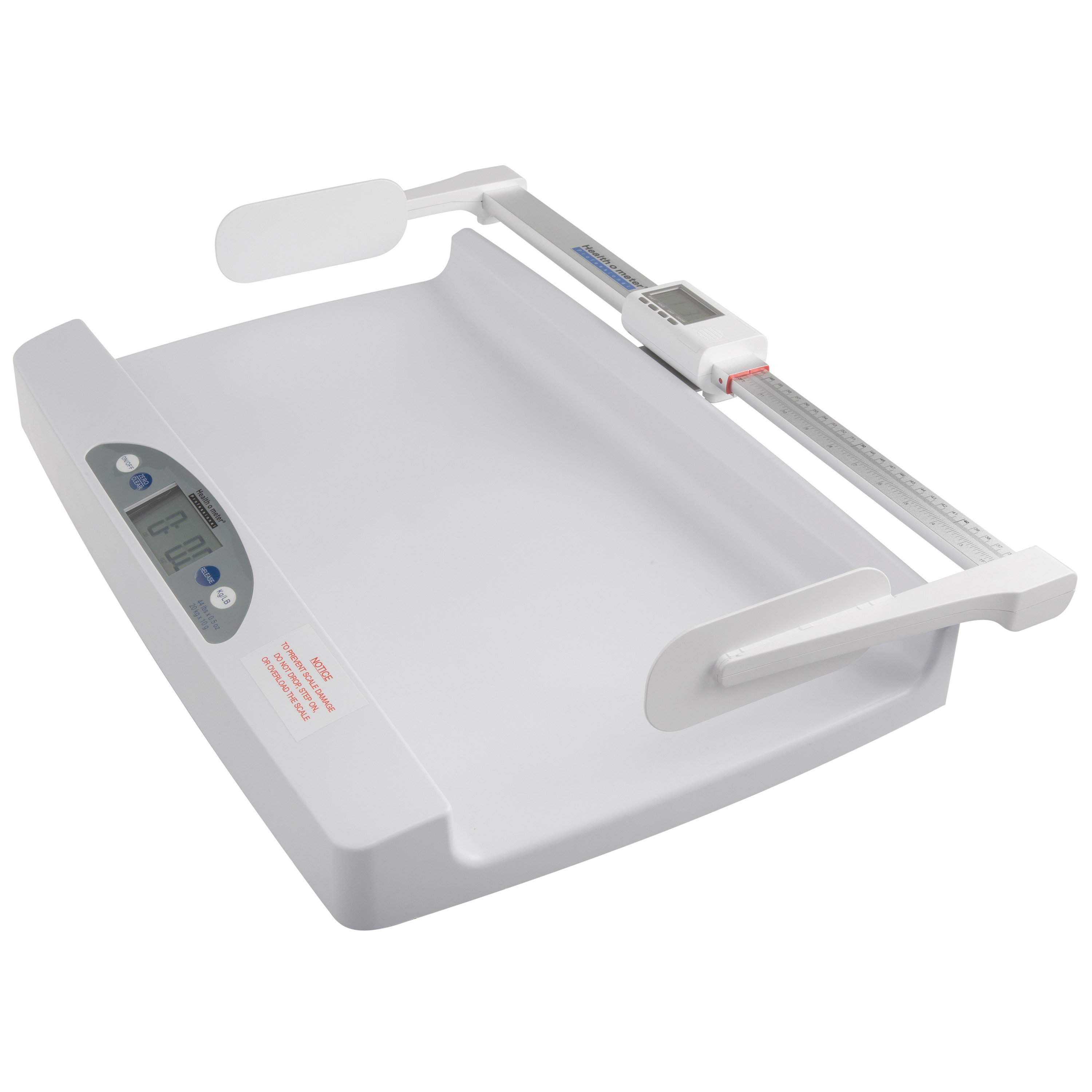

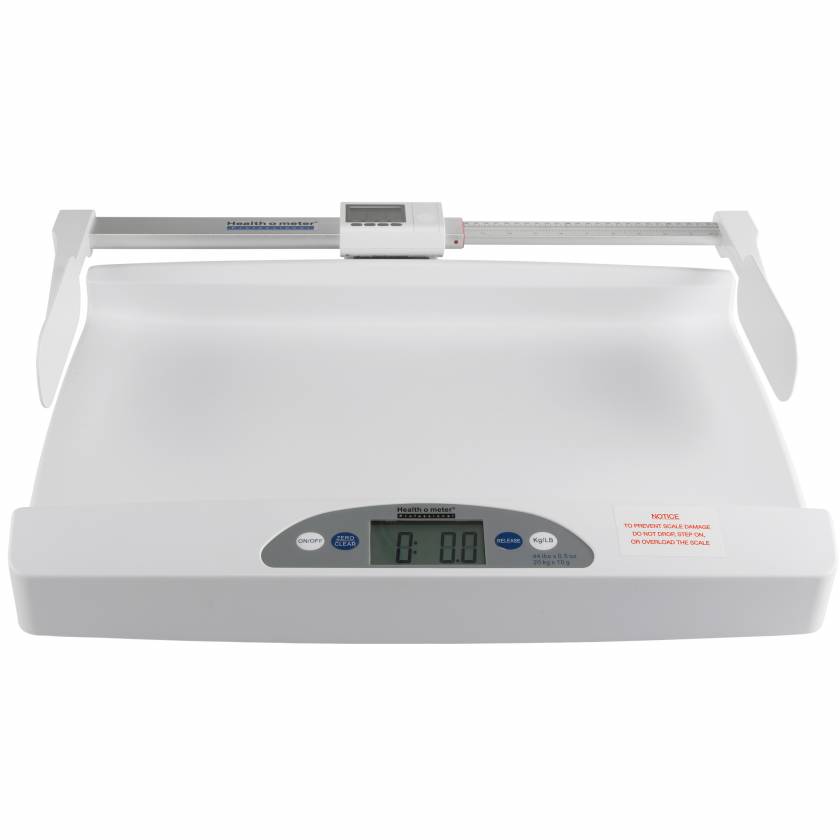

The 553-EHR Series Digital Pediatric Extra-Wide Tray Scale with Digital Height Rod was specifically created for nurseries, delivery rooms, and pediatric practices, making it an ideal choice for newborns, infants, and toddlers. This scale offers providers and patients a range of benefits, including safety, comfort, and flexibility. The scale ensures a secure platform, keeps patients calm for accurate readings, and accommodates infants lying down to toddlers sitting up. With its digital height rod practitioners can measure both weight and height simultaneously.

Features:

  • Motion Detection - The scale can weigh accurately despite the movement of the subject on the scale
  • Digital Height Rod Included - Easy-to-read height rod allows users to measure both weight and height simultaneously
  • Easy integration and seamless communication with today's EMR applications

Functions:

  • LB / KG Conversion
  • LB / KG Lock Out
  • Zero
  • Tare
  • Hold / Release
  • Auto Zero
  • Auto Off

Technical Specifications:

  • Weight Capacity: 44 lbs / 20 kg
  • EMR Connectivity: USB, Via optional Pelstar® wireless technology
  • Resolution: 0.5 oz / 10 g
  • Display: 1" / 25 mm, LCD Display
  • Power Source: 6 AA batteries included or optional 120V Adapter (ADPT30)
  • Height Rod:
    • Measuring Range: 13 3/4" - 31 1/2" / 35 cm - 80 cm
    • Resolution: 1/16" / 0.1 cm
    • Actual Product Dimensions: 24 3/4" W x 11 1/2" D x 2 3/4" H
    • Display: LCD, 5/8" / 16 mm digit height
    • Power Source: 2 AAA batteries (included)
  • Tray Size: 24 7/8" W x 13" D x 1 3/8" H
  • Overall Product Dimensions: 24 7/8 W x 16 1/2" D x 3 7/8" H
  • Actual Product Weight: 20 lbs (Without Height Rod)

Comparison Table:

SKU Measurement System
553KL-EHR Kilograms & Pounds
553KG-EHR Kilograms Only

About this Brand

Specifications

Specifications
Manufacturer Pelstar LLC
Actual Product Weight 20 lbs
Overall Height 3 7/8"
Overall Width 24 7/8"
Overall Depth 16 1/2"
Weight Capacity 44 lbs / 20 kg
Country of Manufacture China
Item Ships From Illinois
