Product Description

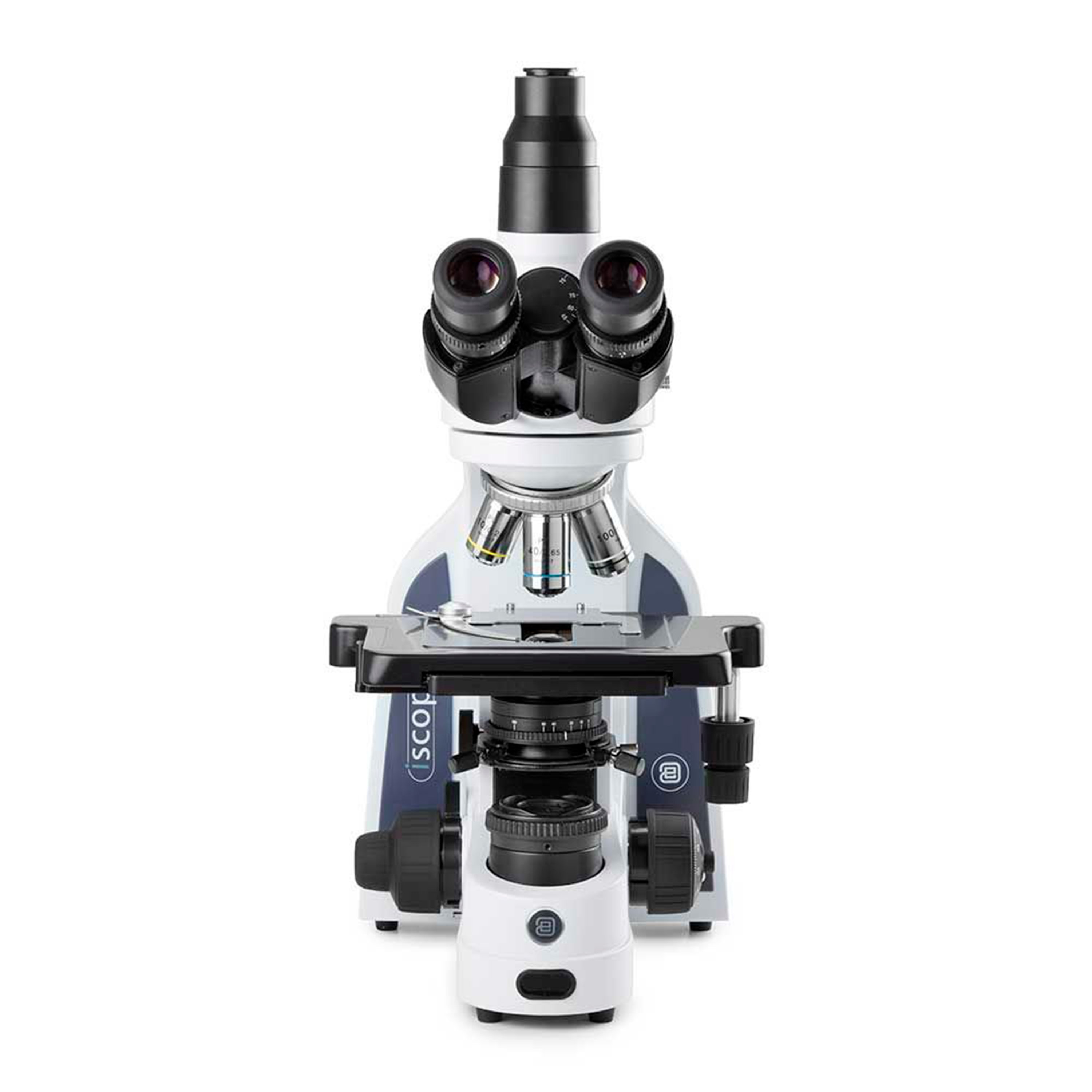

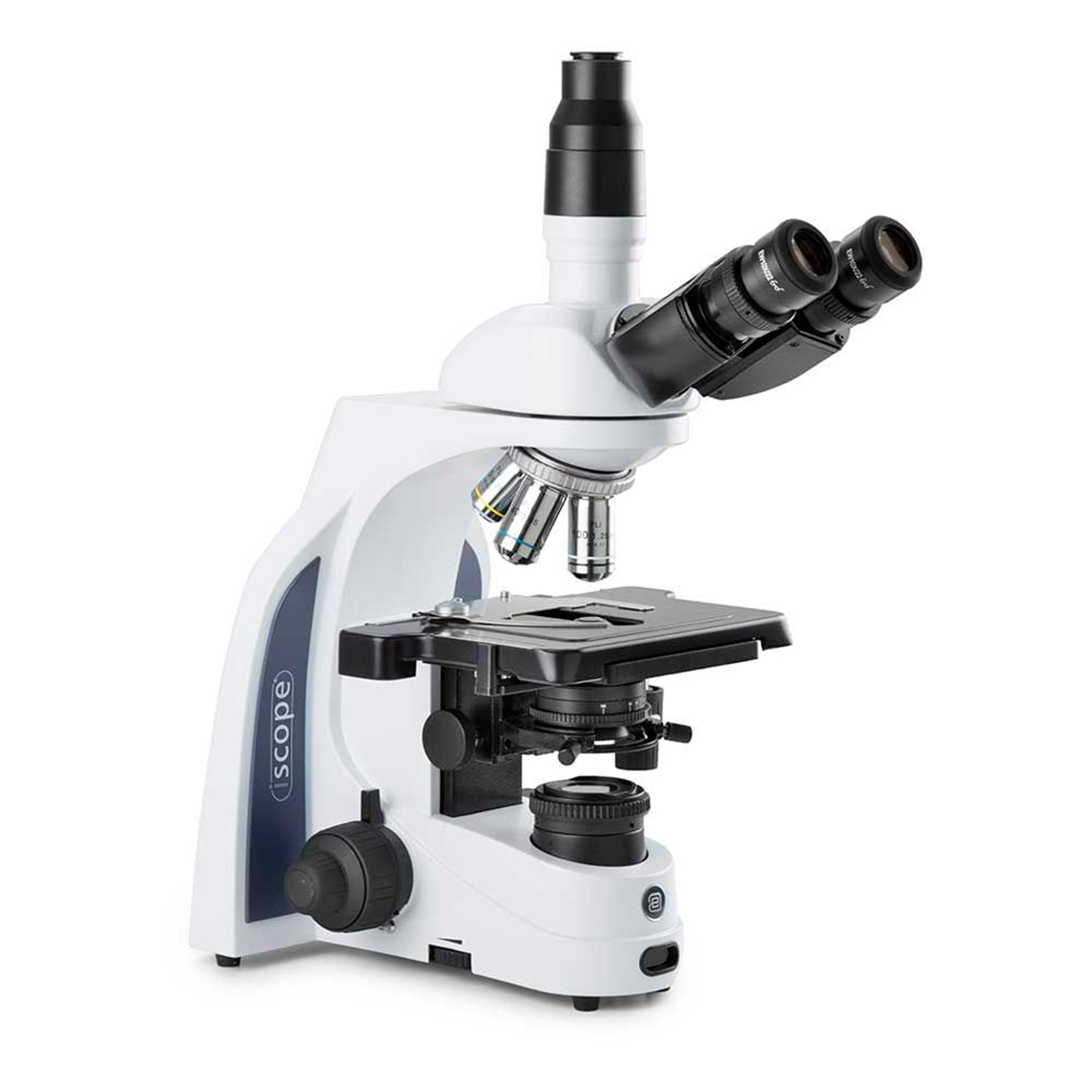

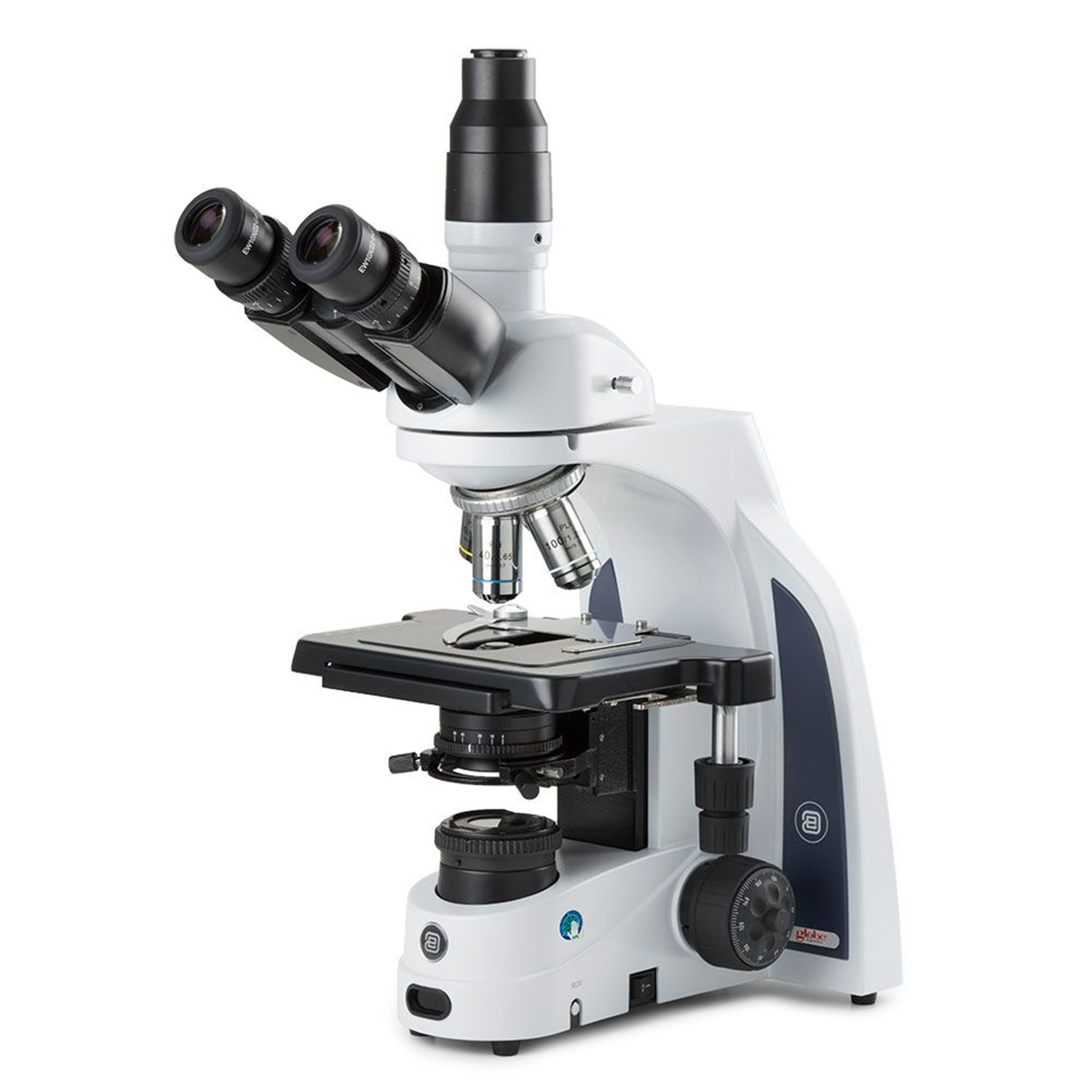

The iScope Trinocular Compound Microscope, EWF 10x/22mm Eyepieces, Quintuple Nosepiece with Plan PLi delivers clear and vivid images at every level of magnification. The sleek and compact design of iScope® microscopes not only enhances your workspace but also ensures safer operation and easy storage. Whether you are in high schools, universities, or engaged in life and biomedical sciences, we have various configurations to meet your needs.

Features:

EWF 10x/22mm eyepieces for enhanced viewing comfort.
Rackless integrated X-Y mechanical stage.
Quintuple (5) reversed nosepiece for seamless objective change.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Coaxial Coarse and Fine Adjustments with Rack Stop achieve precise focusing and control, ensuring accurate and smooth image manipulation. The rack stop prevents damage to samples and objectives.
Intensity adjustable 3W NeoLED™ Köhler illumination.
APL (Antimicrobial Protection Layer): Developed with a protective microbe-resistant coating, the iScope® microscope utilizes a revolutionary paint treatment that helps restrict the growth of microorganisms, including bacteria and mold, which makes it an ideal solution for any laboratory environment.
These microscopes meet the stringent quality and safety standards of CE certification.

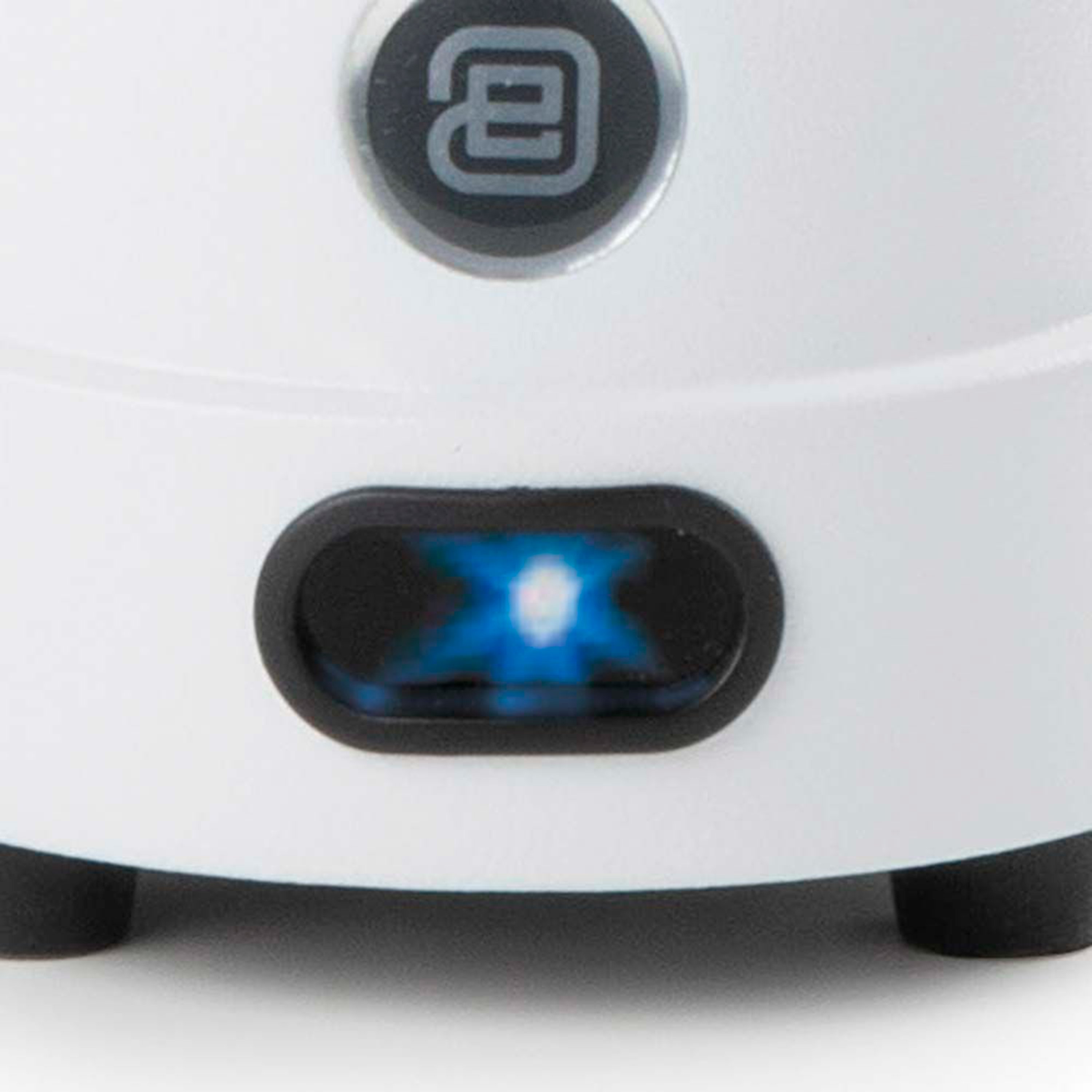

The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position.
Cable Storage System (CSS) allows users to easily insert the power cable into the back of the instrument, which enables easy storage.
The Integrated Carrying Grip at the back of the microscope ensures safe transportation of the microscope.
10-Year Warranty

Technical Information:

Head	Trinocular Siedentopf type head, 360° rotatable and 30° inclined Ø30mm tubes, +/-5mm diopter adjustment on both eyepieces tube. Adjustable interpupillary distance between 48 to 76mm. Optical path selector (100:0 / 50:50).

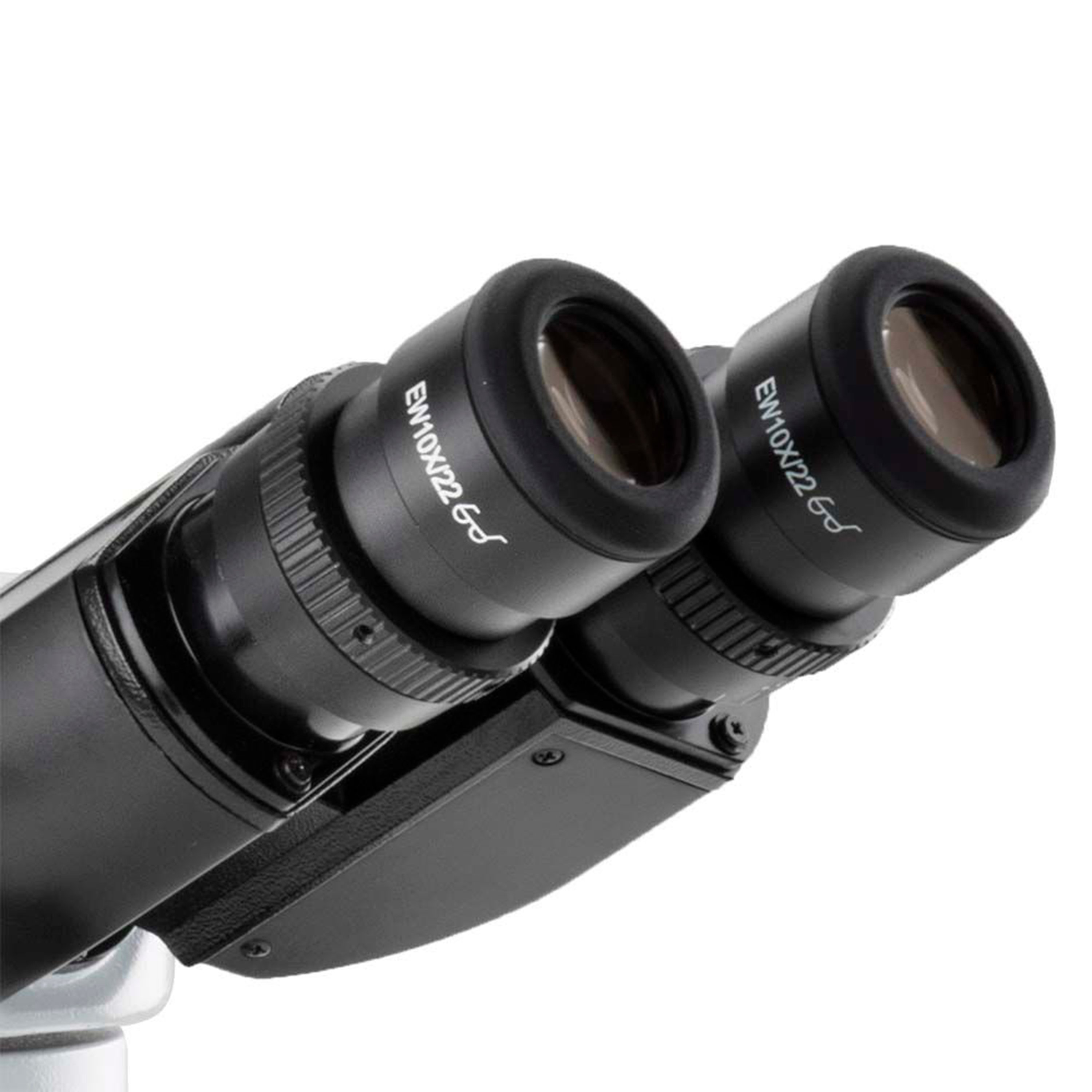

Eyepieces	Extended plan widefield EWF10x/22mm eyepieces with 22mm field of view and adjustable diopter on both eyepieces tube for infinity corrected IOS Plan System.
Nosepiece	Reverse quintuple (5) nosepiece on ball bearings.
Objectives (45mm parfocal)	Plan IOS infinite PLI 4x/0.10 WD 15.4mm PLI 10x/0.25 WD 10mm PLI S40x/0.65 spring WD 0.54mm PLI S100x/1.25 spring, oil immersion, WD 0.13mm Total magnification: 1000x
Stage	Designed for 2 slides. 187/230 x 140mm stage equipped with integrated 79 x 52mm X-Y mechanical stage.
Condenser for Brightfield	Height adjustable Abbe N.A. 1.25 iris diaphragm & slot for sliders (PH or DF)

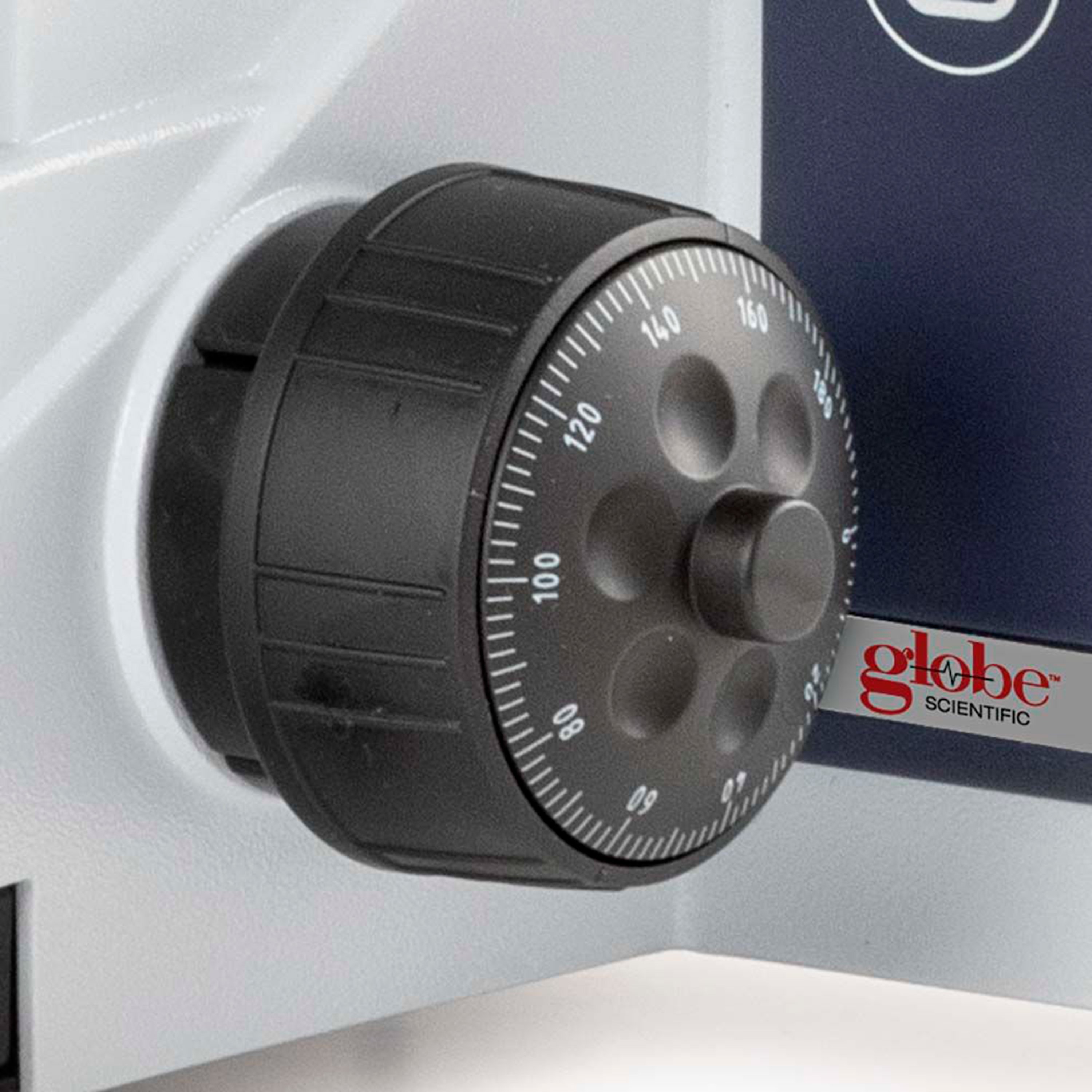

Focusing	Coaxial coarse and fine adjustments, 200 graduations, 1μm per graduation, 200μm per rotation, total travel range is approximately 24mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control.
Illumination	Intensity adjustable 3W Kohler NeoLED™ illumination with internal 100-240VAC power supply. The innovative NeoLED™ design offers larger apertures, allowing the optical system of the iScope® to produce images at higher resolutions. Other benefits of NeoLED™ are low energy consumption, no heating and long operating lifetime. The Kohler settings provide homogeneous illumination and high contrast.
Microscope Package Content	Supplied with power cord, dust cover, a spare fuse, 5mL immersion oil bottle, and user manual. All packed in polystyrene boxes

Specifications

Specifications
Manufacturer	Globe Scientific
Country of Manufacture	China
Item Ships From	New Jersey
