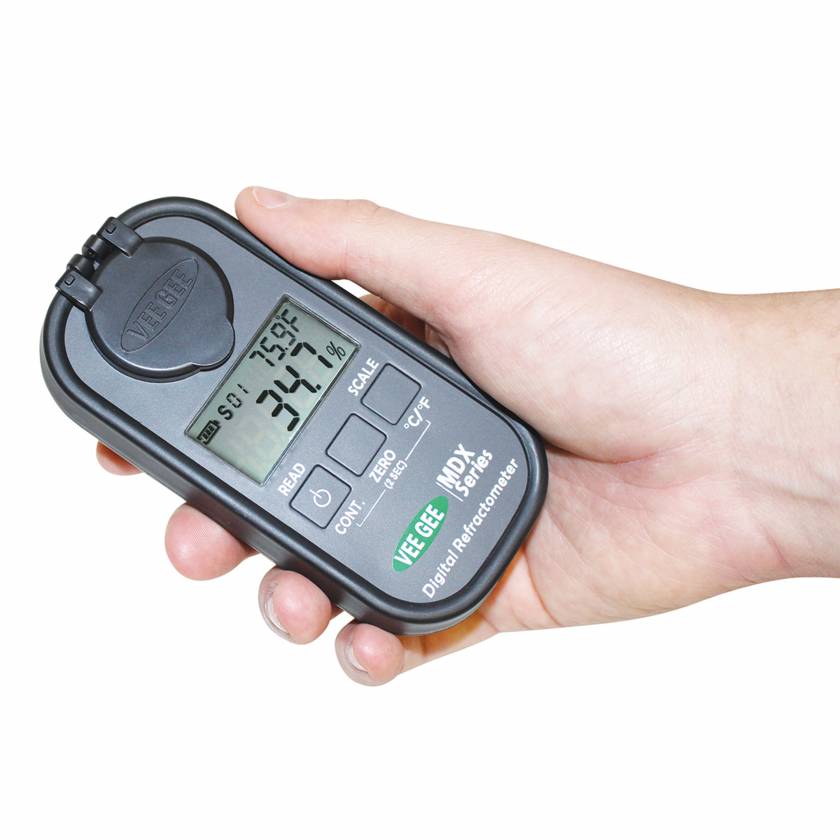

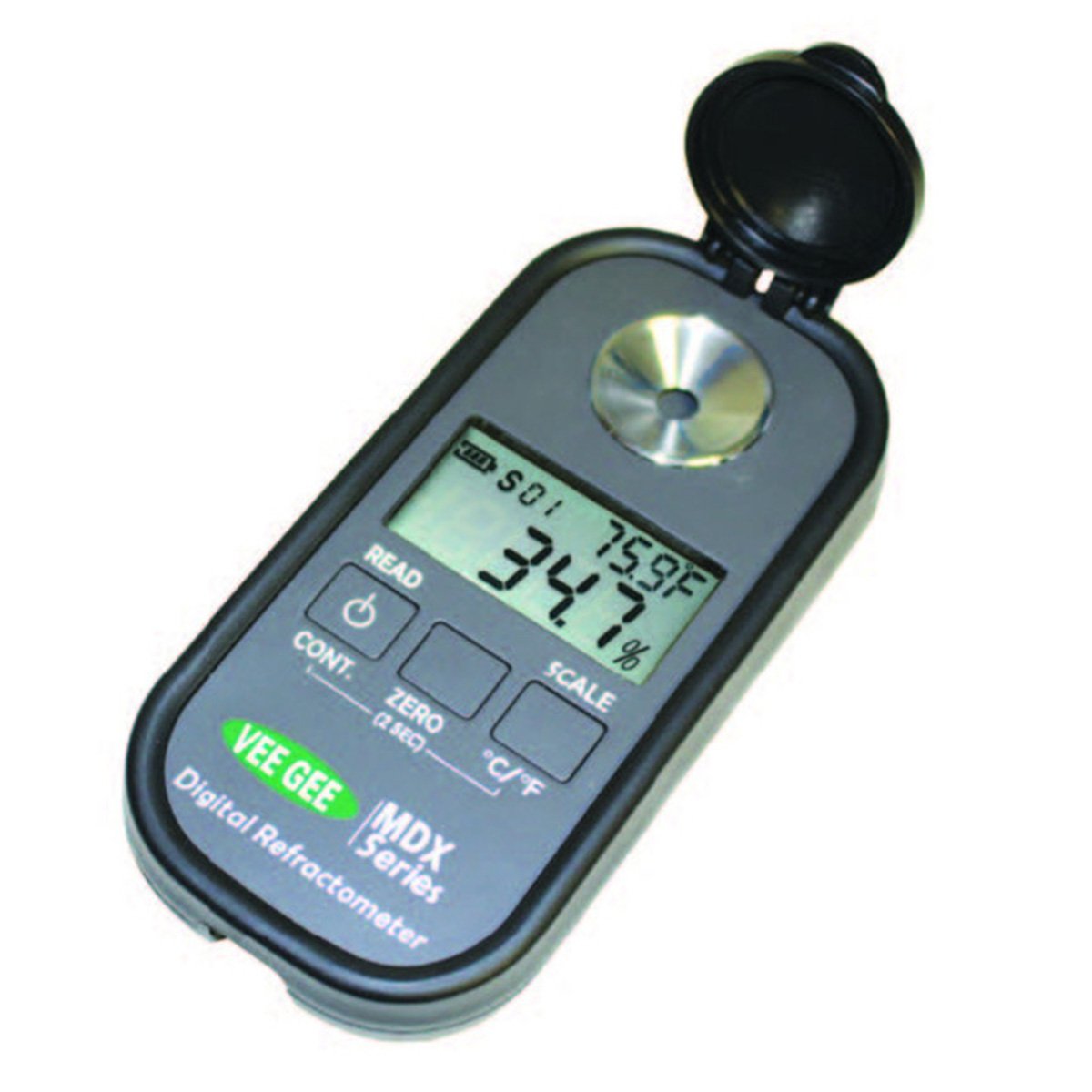

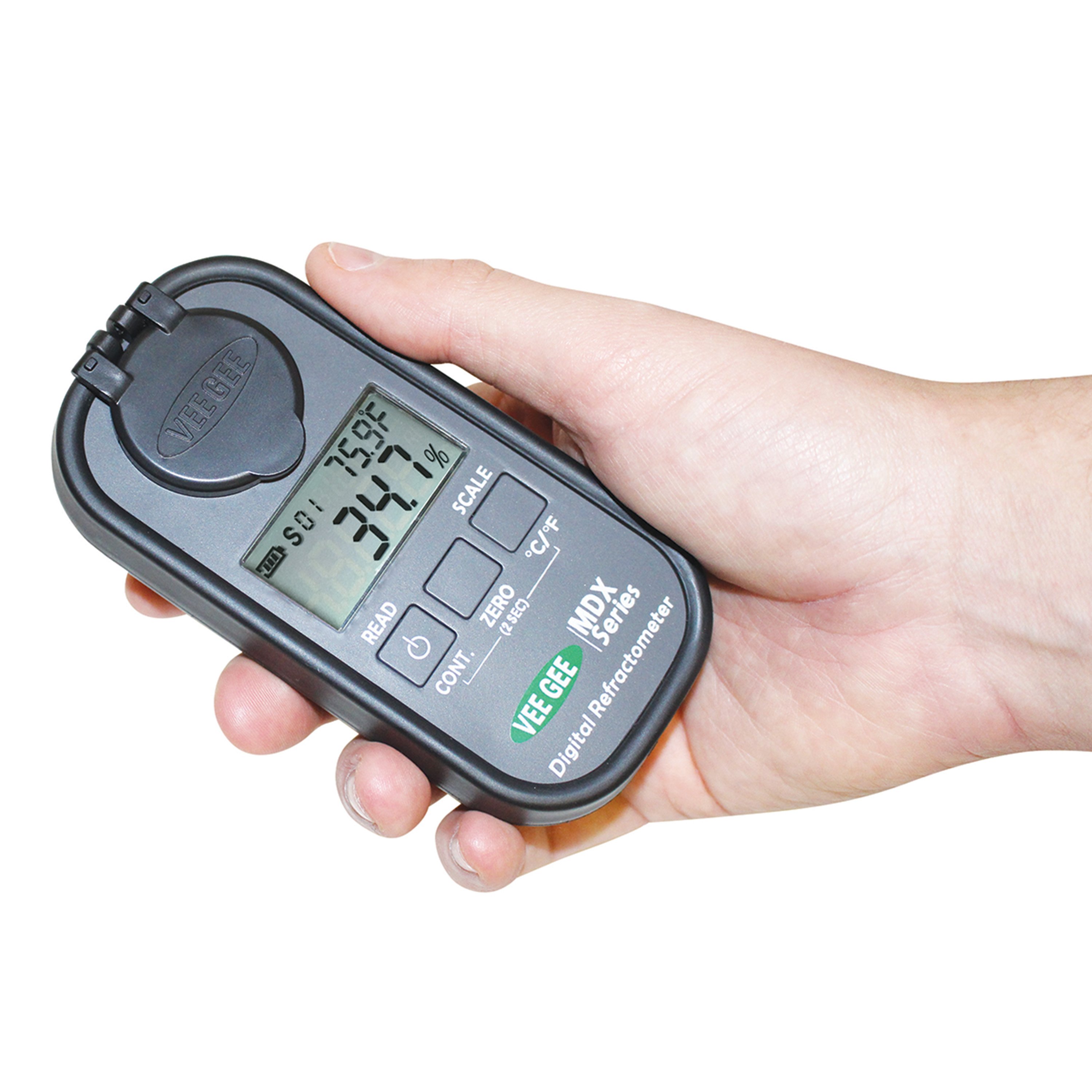

MDX-603 Digital Coolant Refractometer
Product Description
This MDX-603 Digital Coolant Refractometer comes with four (4) scales (Ethylene Glycol, Ethylene Glycol Freeze Point, Propylene Glycol, and Propylene Glycol Freeze Point). Its scales are used to measure the concentration and freezing point of the coolants Ethylene Glycol and Propylene Glycol.
Features:
- Compact & lightweight
- Removable grip & prism cover for easy cleaning
- Continuous loop read features (15 reads)
- Automatic temperature control
- Zero with distilled water
- IP67 rating for detecting unit, IP65 for remainder
- 589.3nm LED
- Stainless steel prism well
- °C/°F switchable temperature display
- Overall Dimensions:
- Refractometer: 4.8" L x 2.3" W x 1.3" H
- Refractometer Case: 6.75" L x 4.25" W x 2" H
- Product Weight: 0.31 lbs
- Warranty: 1 Year
Package Includes:
- Digital refractometer (Model MDX-603)
- Rubber grip & prism cover

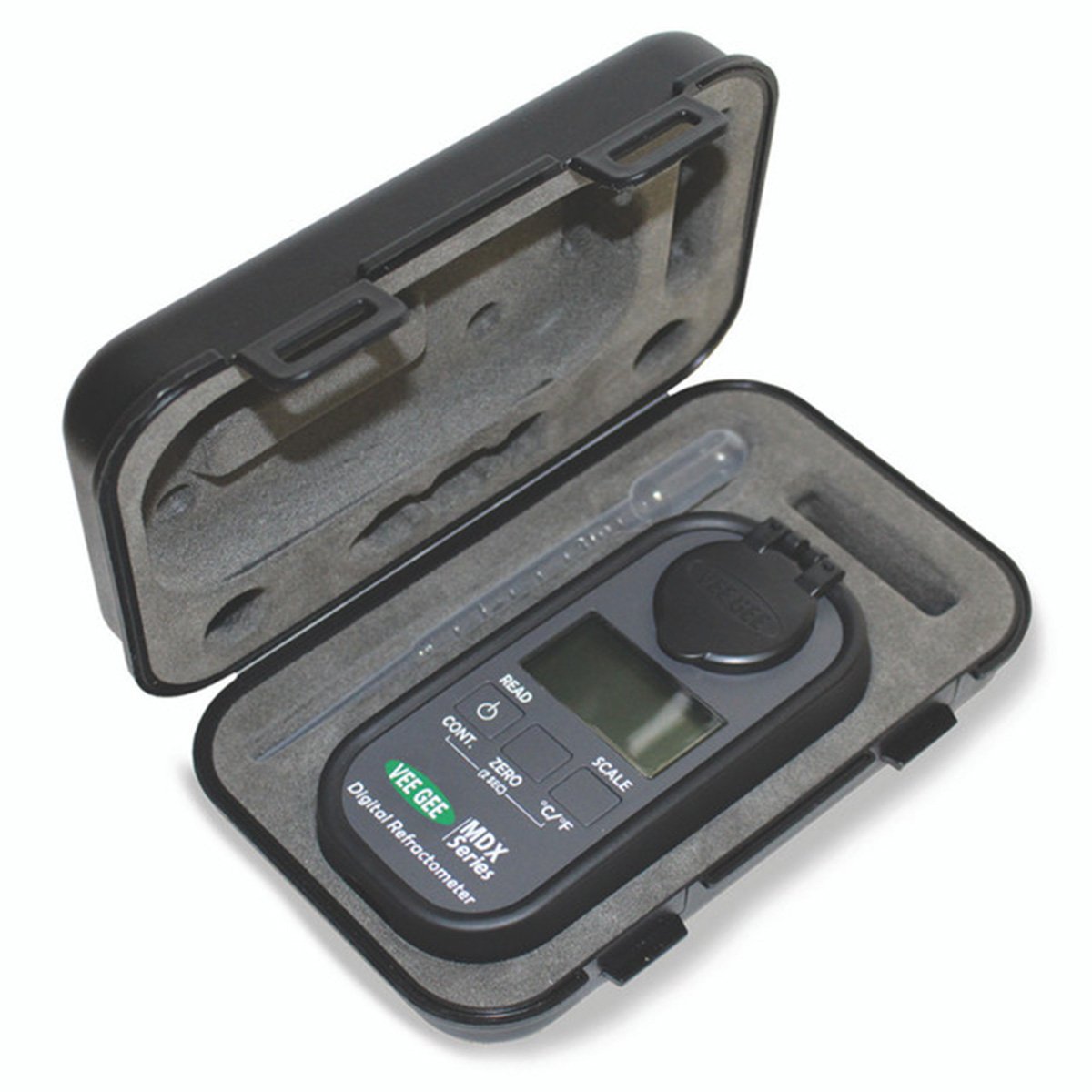

- Hard shell case with protective lining
- Disposable pipet
- Battery
- User manual
Technical Specifications:
Scale | Range | Resolution | Accuracy |
Ethylene Glycol (% v/v) | 0.0 to 65.0% | 0.1% | ±0.5% |
Ethylene Glycol Freezing Point | -80.0 to 32.0°F / -50.0 to 0.0°C | 0.1°F / 0.1°C | ±1.0°F / ±0.5°C |
Propylene Glycol (% v/v) | 0.0 to 73.0% | 0.1% | ±0.5% |
Propylene Glycol Freezing Point | -100.0 to 32.0°F / -50.0 to 0.0°C | 0.1°F / 0.1°C | ±1.0°F / ±0.5°C |
Specifications
Manufacturer | Heathrow Scientific |
---|---|
Latex Free | Yes |
Actual Product Weight | 0.31 lbs |
Overall Height | 2" |
Overall Width | 4.25" |
Overall Length | 6.75" |
Country of Manufacture | China |
Item Ships From | Illinois |
