RSD Take-Apart Damaged Debbie the Female Phantom with Anatomic and Mechanical Neck
Product Description
RSD Take-Apart Damaged Debbie the Female Phantom with Anatomic and Mechanical Neck.
Teaching & Training Phantoms For Civilian Hospital Emergency Rooms
- 30 pathologies and traumas specific to Debbie
- Unlimited repetition of views without human exposure
- Radiographs that permit evaluation of trainee performance
These phantoms yield radiographs resembling those of a human body with human technical factors and limited artifacts, articulated to enable basic views to be presented, and with an appropriate level of human anatomy. They are well-balanced patient substitutes for basic training of radiologic technologists, particularly in military or emergency room environments.
Debbie demonstrates and evaluates positioning and imaging techniques, including kVp, mAs, contrast, optical density, OFD and TFD. Their radiographs are optically equivalent to humans in density and contrast.

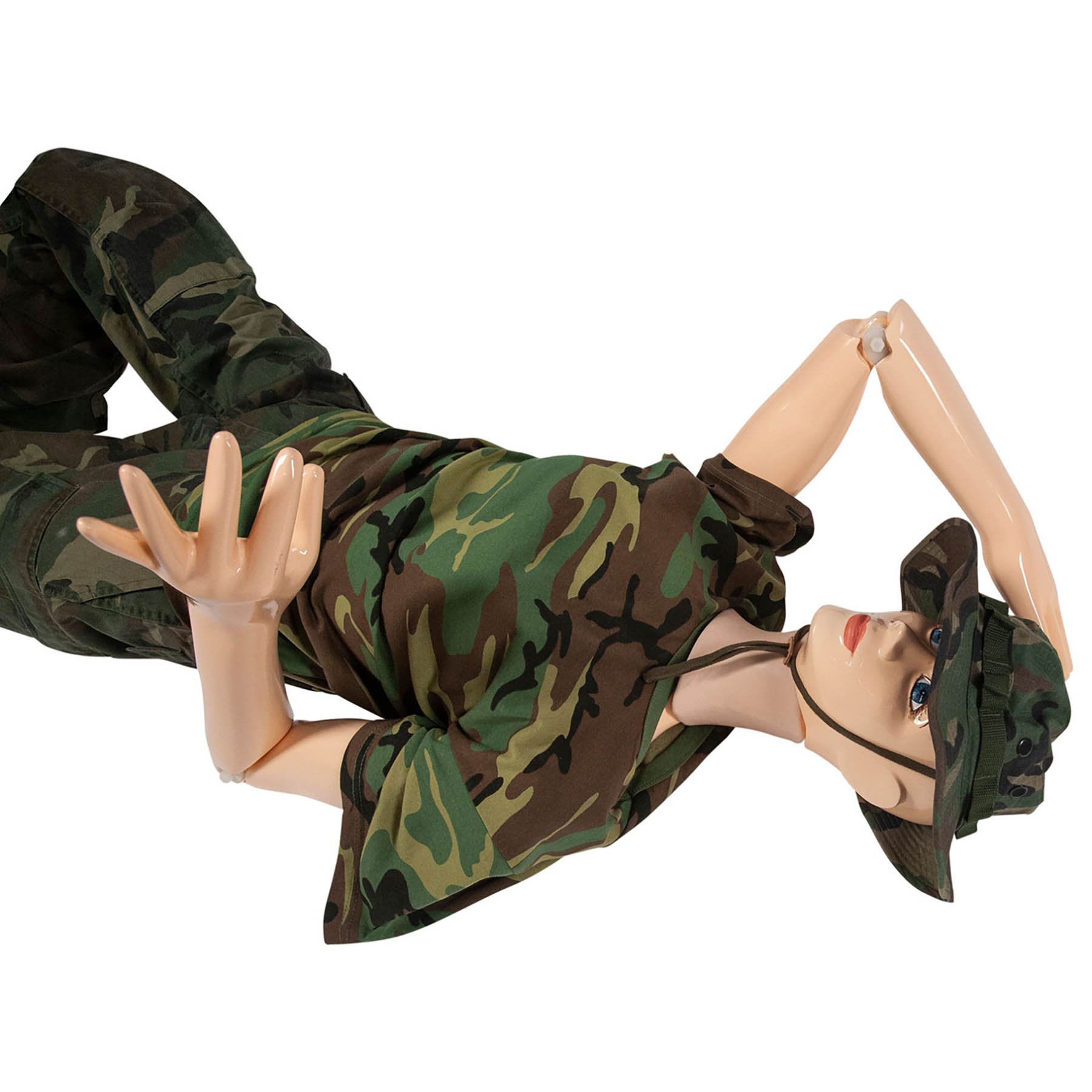

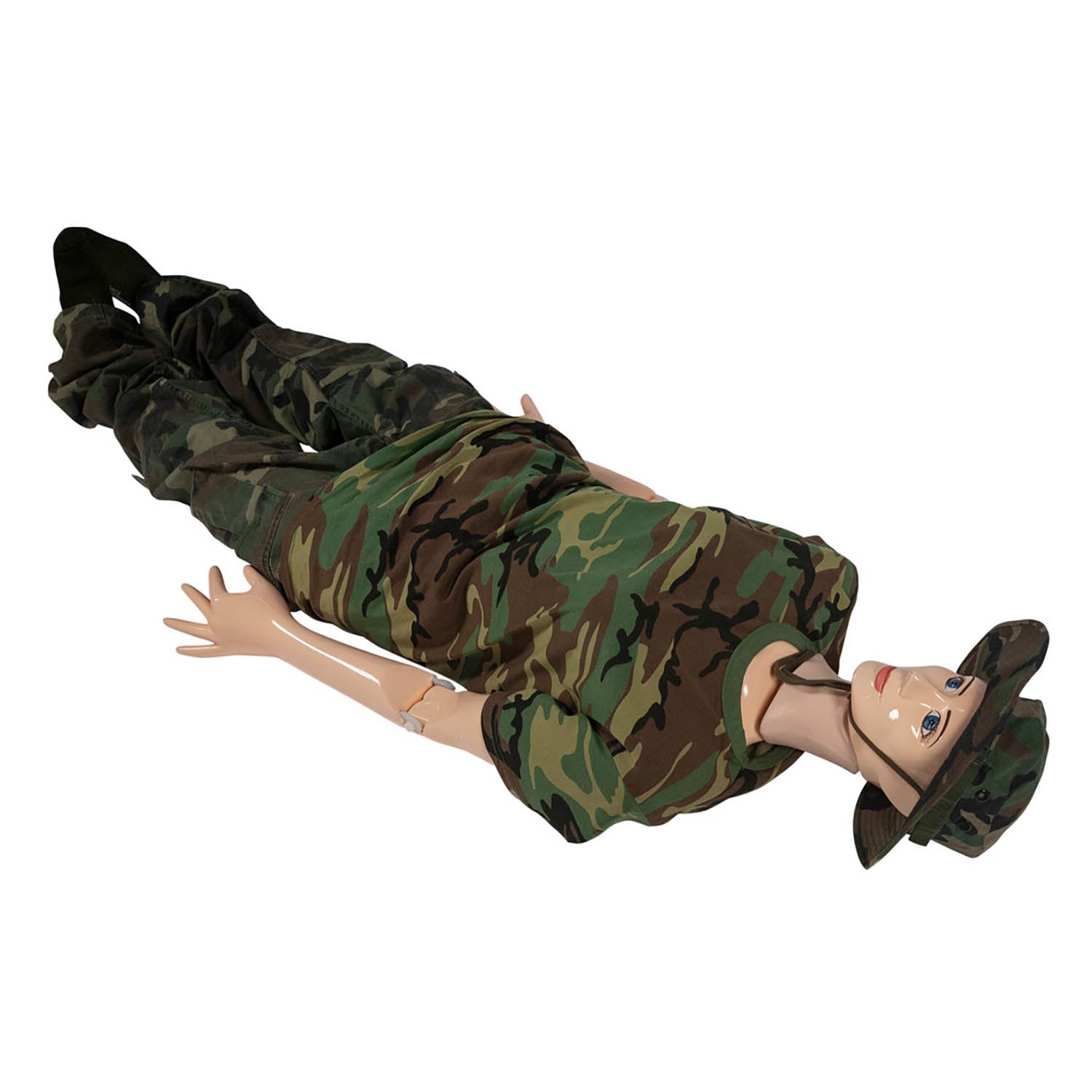

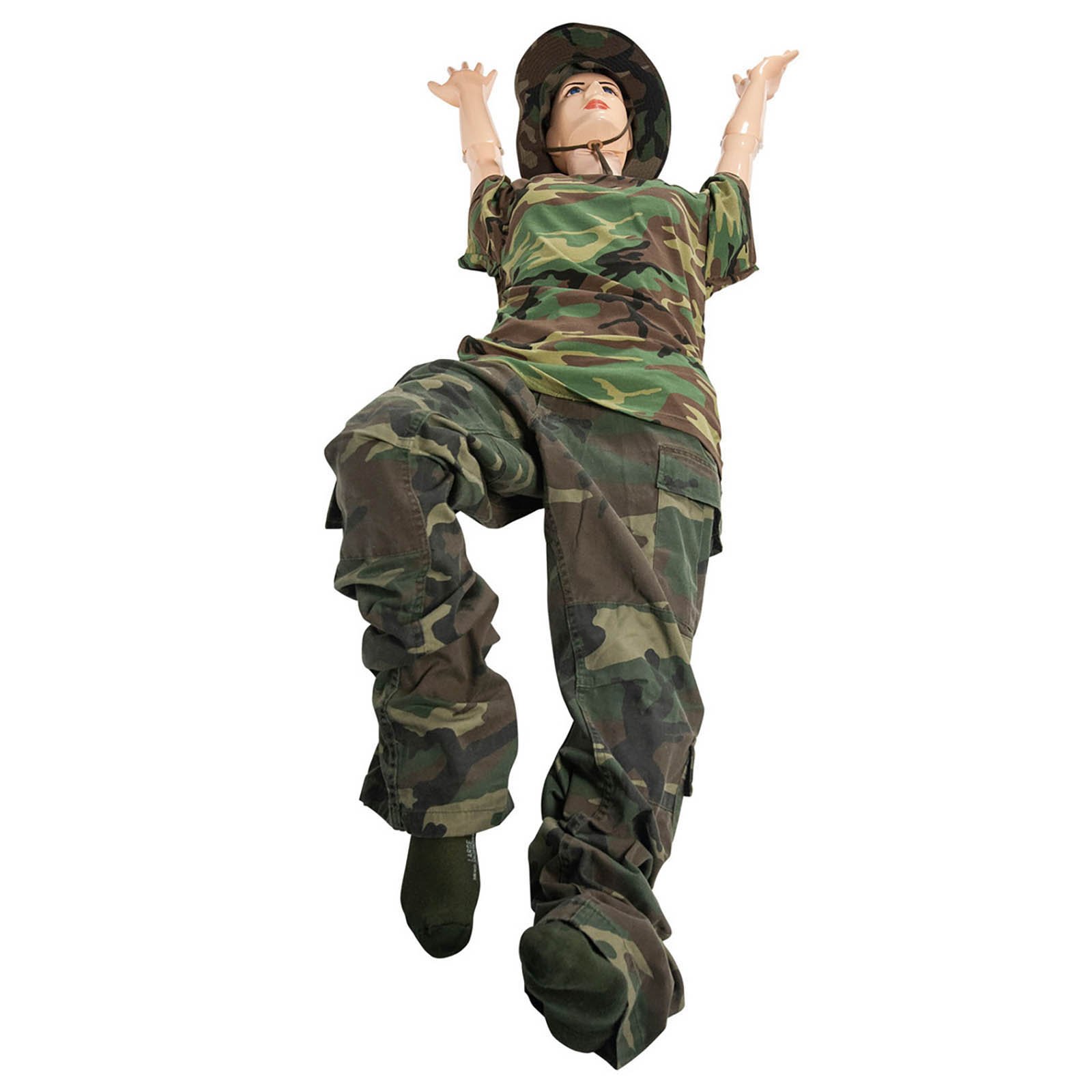

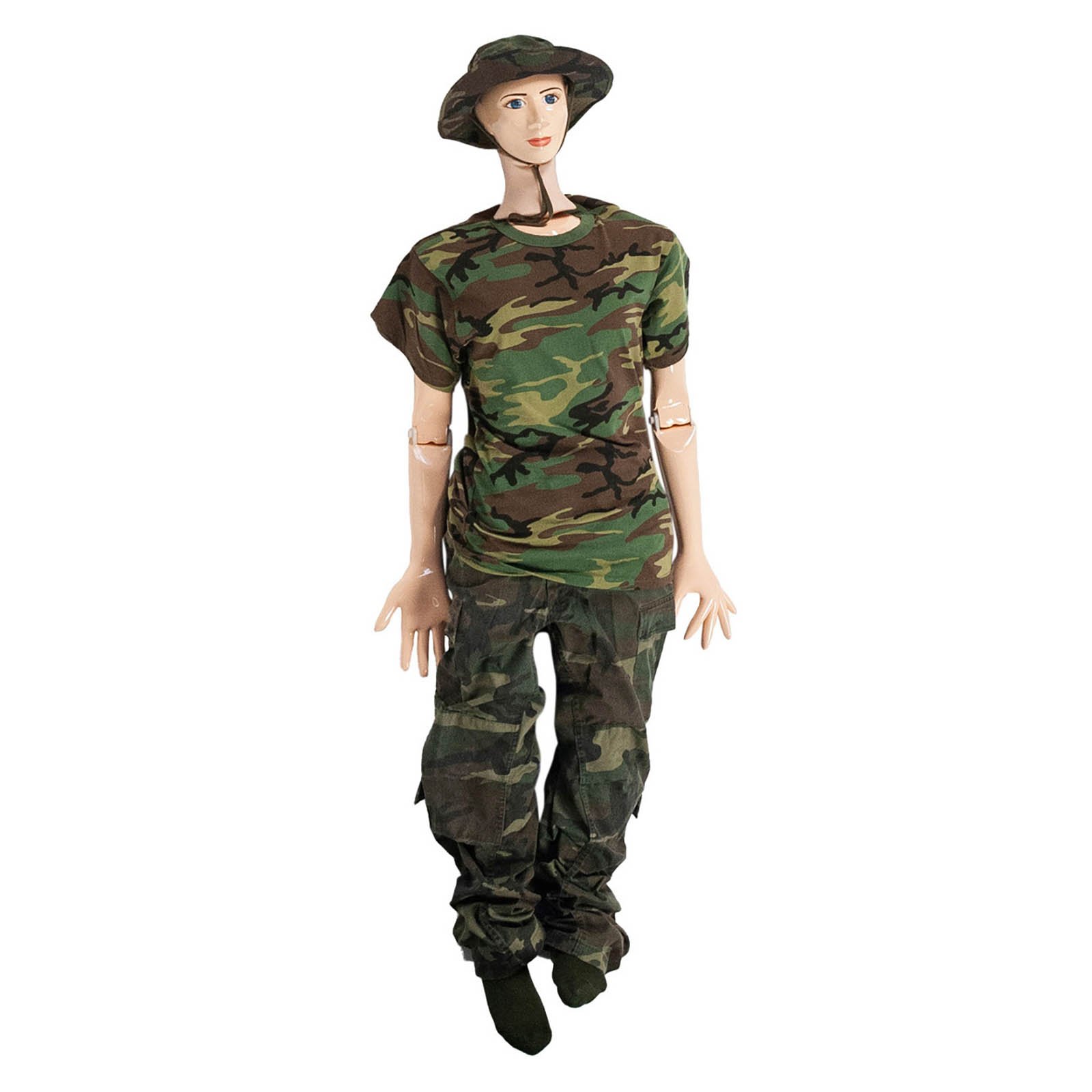

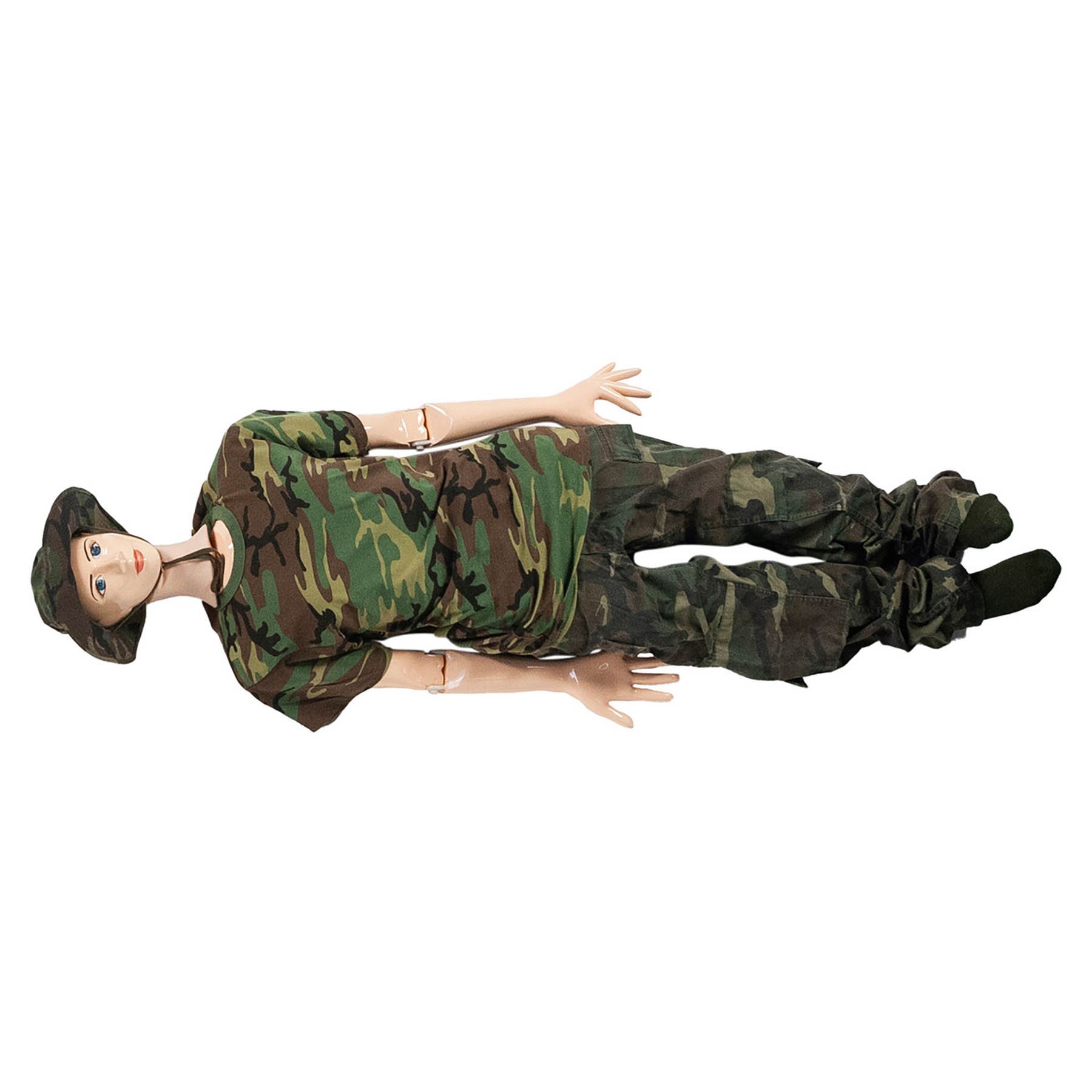

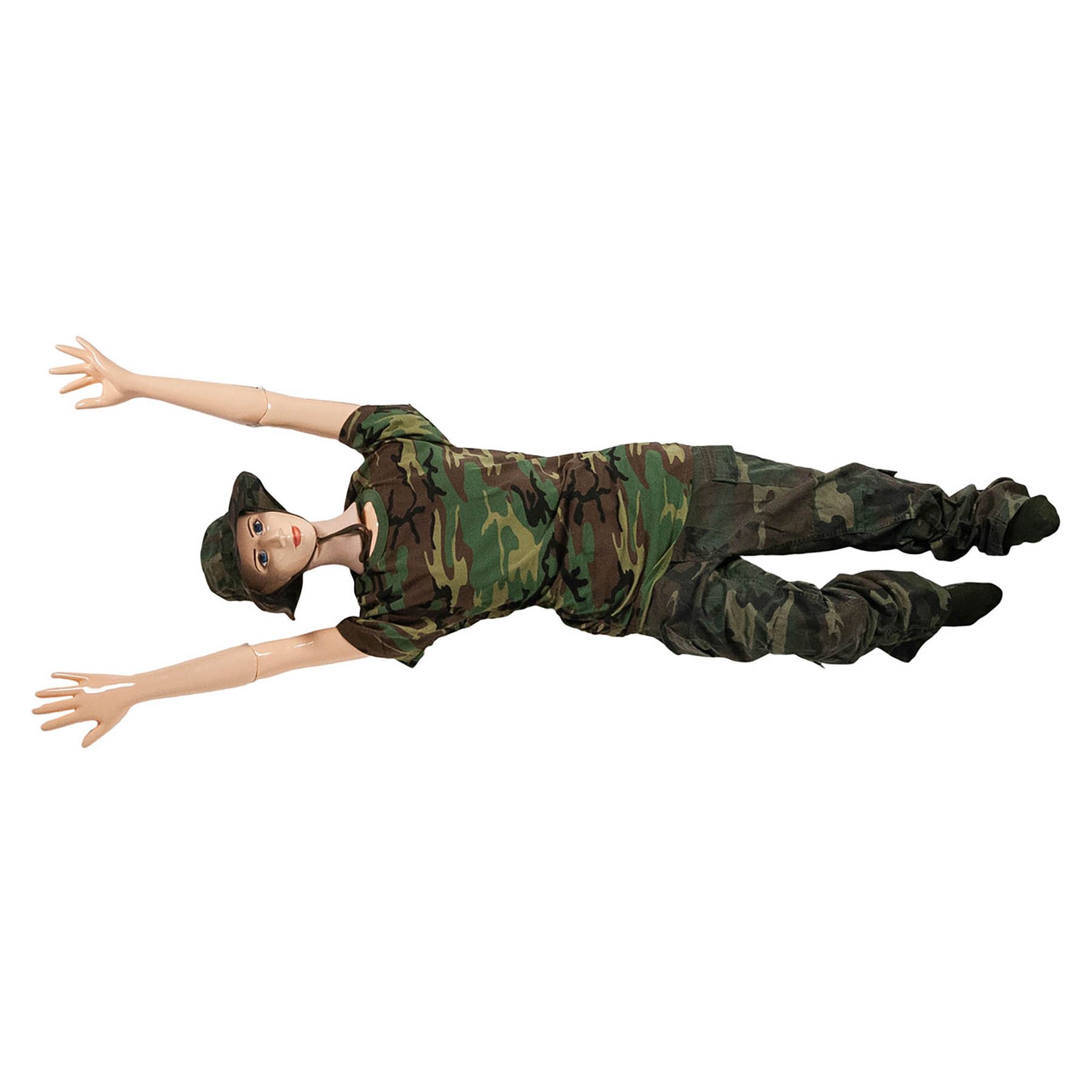

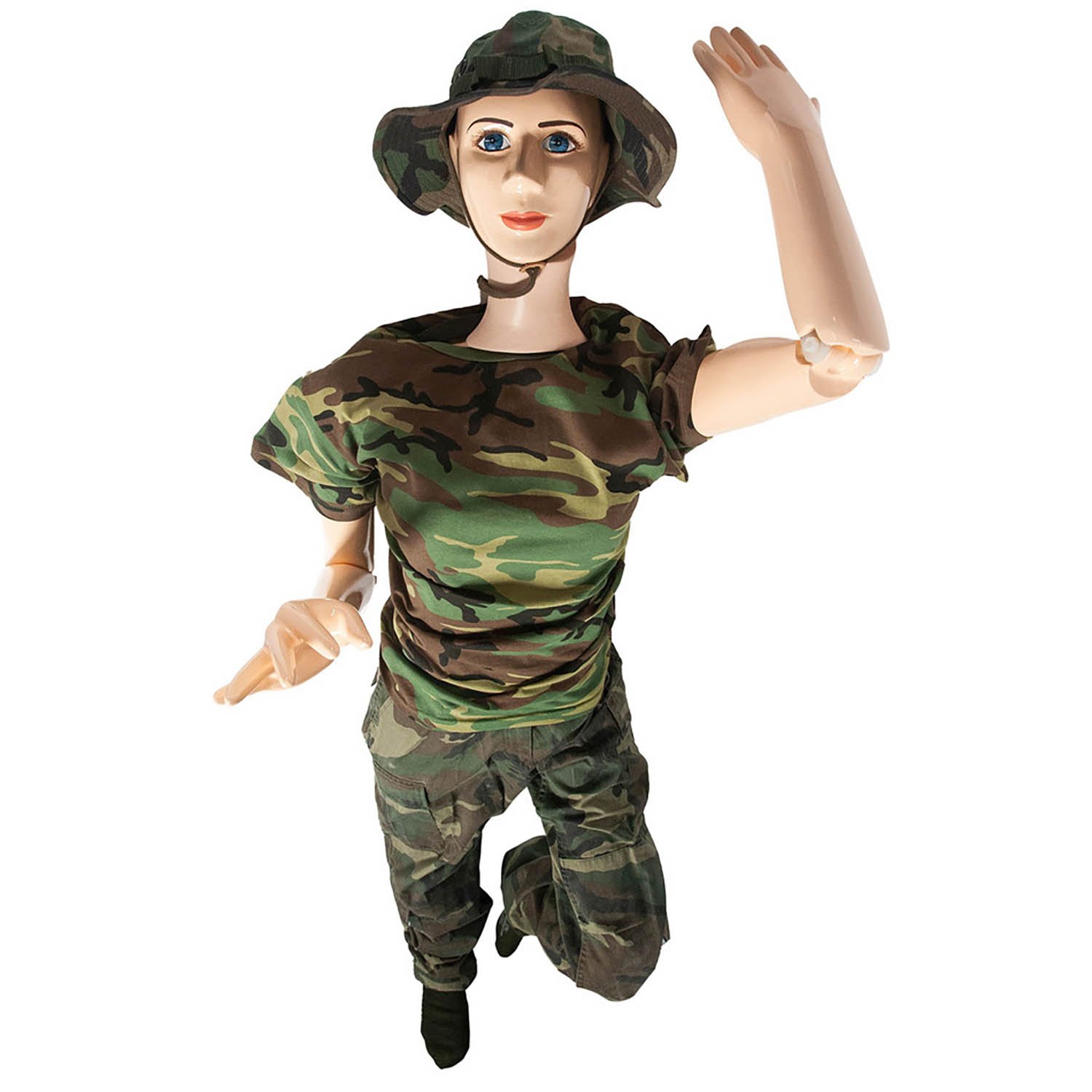

Debbie is dressed in camos for military training and in jumpsuits for civilian training.
Realism of Traumas and Pathologies: There is no single, unique description of any of their traumas and pathologies. Rather, there are limitless variations among a broad range of casualties. The most meaningful judgment of the realism of trauma and pathologies are those based on long radiographic experience across the spectrum of casualties.
Dimensions: 5' 1" (156 cm) tall, weighing 105 lbs (48 kg)
Anatomy:
- Shoulders have ball and socket joints
- Elbows and knees flex 90° to 100°
- Broad range of positioning capabilities, including the "frog position"
- Debbie features traumas of both arms and legs
- Lungs are molded of durable materials with radiodensities matched to humans in a median respiratory state. Animal lungs matching the human in size and blood vessels are available, but they are oriented towards research rather than training.
- Soft Tissues: DEBBIE has solid "soft tissues" that are hard and rigid. They cannot be palpated to locate traumas. However, radiological technologists are generally informed by the physician as to the views to be taken. The manual provides this information to instructors.
- Skeletons: RSD-manufactured skeletons are used rather than natural human skeletons. The latter are generally unavailable and usually consist of an assortment of bones ranging from children to adults of ages, for which osteoporosis becomes a factor.
- RSD skeletons are not to be confused with plastic skeletons for teaching anatomy. RSD skeletons are made to fit the soft-tissue molds precisely. They have spongiosa moldings within marrow cavities and outer, cortical bone. Both constituents meet the internationally accepted standards for radiodensity and specific gravity.

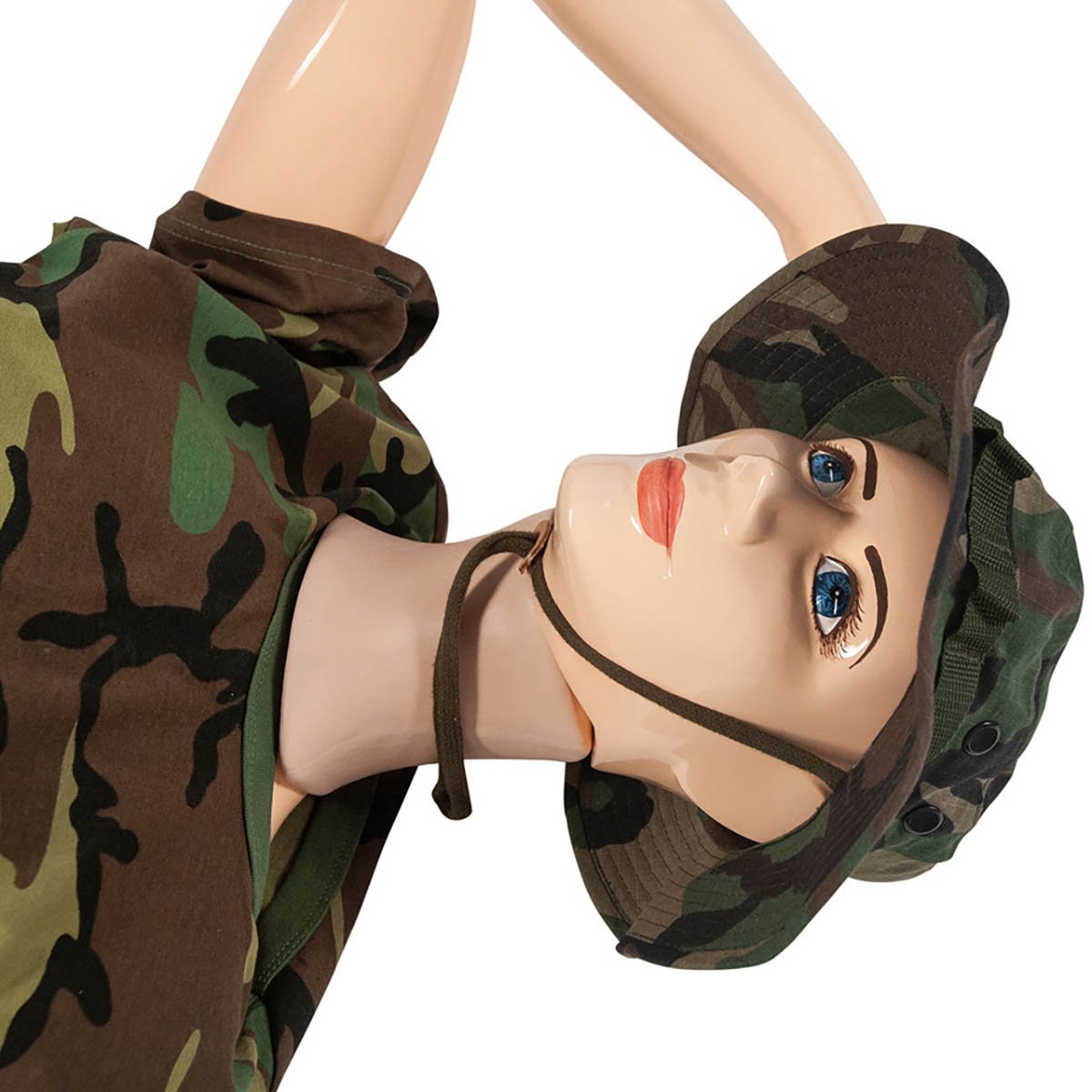

- Neck: While anatomic fidelity and the ability to move the head into a broad range of views is required in radiography, no mechanism can be designed for intervertebral motion without artifacts obliterating the radiographs. This problem has been solved by the use of two necks. One is a multi-articulated polycarbonate assembly which provides for nearly all commonly used views. There is no attempt at radiographic realism in this neck. An alternate, fully realistic neck is interchangeable with the mechanical neck. The cervical spine of this neck contains traumas.
Pathologies and Traumas |
|||
No |
Description |
Side |
External Marking |
-07 | Depressed comminuted fracture of zygomatic arch | L | Swelling |
-08 | Mandibular fractures | R | Swelling, Bruise |
-09 | Cloudy maxillary sinus | L | None |
-10 | Fracture of nasal bones with mild displacement | N/A | Bullet or Foreign Body Hole |
-13 | C4, C5 Compression fracture | N/A | None |
-14 | C7 Fractured by bullet | N/A | Bullet or Foreign Body Hole |
-15 | C-spine bullet anterior to trachea shadow | N/A | Bullet or Foreign Body Hole |
-27 | Widened mediastinum and pleural effusion | N/A | None |
-28 | Chest tube, lung inflated | L | Tube |
-29 | Infiltrate | N/A | None |
-30 | Bullet in mid-abdomen | N/A | Bullet or Foreign Body Hole |
-33 | Metallic foreign body lateral to PSOAS | R | None |
-34 | Compression fracture of L4 | N/A | Bullet or Foreign Body Hole |
-35 | Metallic fragments – 2 mid-abdomen, 1 each in RLQ and LLQ | N/A | Bullet or Foreign Body Hole |
-36 | Bullet in mid-abdomen | N/A | Bullet or Foreign Body Hole |
-37 | Metallic fragments – 2 mid-abdomen, 1 each: RLQ and LLQ | N/A | None |
-39 | Displaced fracture of pubic ramus | L | None |
-40 | Sacroiliac disruption, acetabular fracture | L | None |
-41 | Foreign body lateral to PSOAS | R | None |
-50 | Proximal tibia fracture | L | Swelling |
-53 | Minimally displaced distal tibia fracture | R | Swelling |
-54 | Displaced fracture of calcaneus bone | R | None |
-56 | Volar angulated distal radius and ulna fracture | R | |
-58 | Minimally displaced distal radius fracture not involving wrist, offset bone ends | N/A | |
-59 | 3rd and 4th metacarpals shattered | L | Thickened, back of hand |
About this Brand
![RSD RSD](https://www.universalmedicalinc.com/media/amasty/shopby/option_images/slider/radiology-support-devices.png)
After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.
Specifications
Manufacturer | RSD |
---|---|
Latex Free | Yes |
Country of Manufacture | United States |
Item Ships From | California |
