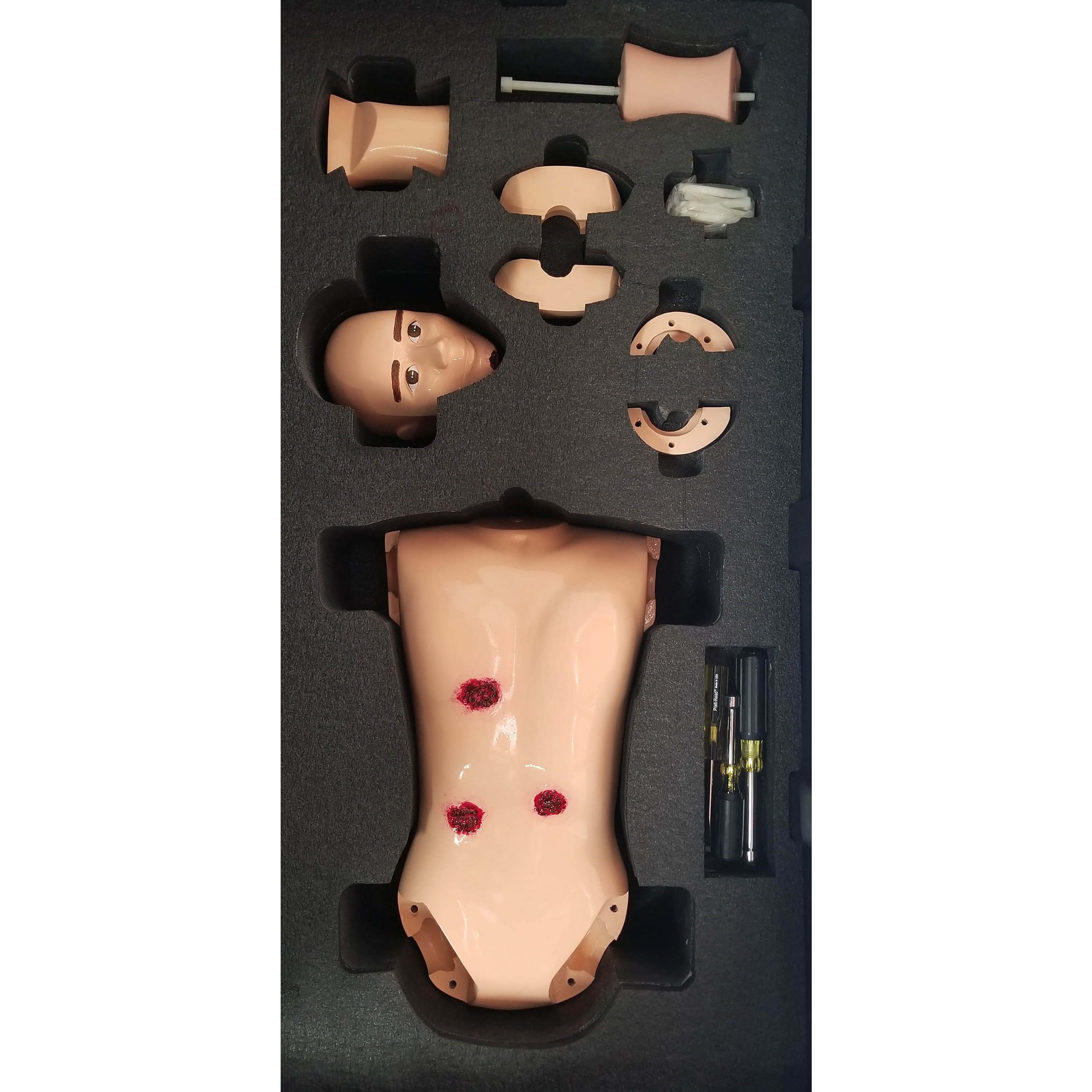

RSD Take-Apart Wounded Willy the Male Phantom with Anatomic and Mechanical Neck
Product Description
RSD Take-Apart Wounded Willy the Male Phantom with Anatomic and Mechanical Neck.
Teaching & Training Phantoms For Civilian Hospital Emergency Rooms
- 39 pathologies and traumas specific to Willy
- Unlimited repetition of views without human exposure
- Radiographs that permit evaluation of trainee performance
These phantoms yield radiographs resembling those of a human body with human technical factors and limited artifacts, articulated to enable basic views to be presented, and with an appropriate level of human anatomy. They are well-balanced patient substitutes for basic training of radiologic technologists, particularly in military or emergency room environments.
Willy demonstrates and evaluates positioning and imaging techniques, including kVp, mAs, contrast, optical density, OFD and TFD. Their radiographs are optically equivalent to humans in density and contrast.
Willy is dressed in camos for military training and in jumpsuits for civilian training.
Realism of Traumas and Pathologies: There is no single, unique description of any of their traumas and pathologies. Rather, there are limitless variations among a broad range of casualties. The most meaningful judgment of the realism of trauma and pathologies are those based on long radiographic experience across the spectrum of casualties.
Dimensions: 5' 1" (156 cm) tall, weighing 105 lbs (48 kg)
Anatomy:
- Shoulders have ball and socket joints
- Elbows and knees flex 90° to 100°
- Broad range of positioning capabilities, including the "frog position"
- Willy features traumas of both arms and legs
- Lungs are molded of durable materials with radiodensities matched to humans in a median respiratory state. Animal lungs matching the human in size and blood vessels are available, but they are oriented towards research rather than training.
- Soft Tissues: WILLY has solid "soft tissues" that are hard and rigid. They cannot be palpated to locate traumas. However, radiological technologists are generally informed by the physician as to the views to be taken. The manual provides this information to instructors.
- Skeletons: RSD-manufactured skeletons are used rather than natural human skeletons. The latter are generally unavailable and usually consist of an assortment of bones ranging from children to adults of ages, for which osteoporosis becomes a factor.
- RSD skeletons are not to be confused with plastic skeletons for teaching anatomy. RSD skeletons are made to fit the soft-tissue molds precisely. They have spongiosa moldings within marrow cavities and outer, cortical bone. Both constituents meet the internationally accepted standards for radiodensity and specific gravity.
- Neck: While anatomic fidelity and the ability to move the head into a broad range of views is required in radiography, no mechanism can be designed for intervertebral motion without artifacts obliterating the radiographs. This problem has been solved by the use of two necks. One is a multi-articulated polycarbonate assembly which provides for nearly all commonly used views. There is no attempt at radiographic realism in this neck. An alternate, fully realistic neck is interchangeable with the mechanical neck. The cervical spine of this neck contains traumas.
Pathologies and Traumas |
|||
No |
Description |
Side |
External Marking |
-01 | Metallic fragment in orbit | R | None |
-02 | Multiple fragments lower face | N/A | None |
-03 | Step deformity of intraorbital rim | L | Bruise |
-04 | Separated fracture of frontal zygomatic suture | L | Swelling |
-05 | Metallic foreign body over skull | N/A | None |
-06 | Mandible fracture with missing bone | N/A | Open Wound |
-11 | Displacement fracture of mandibular condyle | L | Swelling |
-12 | Displacement fracture of mandibular condyle | R | Swelling |
-13 | C4, C5 Compression fracture | N/A | None |
-14 | C7 Fractured by bullet | N/A | Bullet or Foreign Body Hole |
-15 | C-spine bullet anterior to trachea shadow | N/A | Bullet or Foreign Body Hole |
-16 | Fracture of lateral ribs 6 & 7 | R | None |
-17 | Mediolateral fracture of ribs 8 & 9 | L | None |
-18 | Multiple rib fractures, four metallic fragments visible | R | None |
-19 | 12th rib fracture | R | None |
-20 | Bullet in hemothorax overlaying 8th rib | L | Bullet or Foreign Body Hole |
-21 | Bullet in hemothorax overlaying 8th rib | N/A | Bullet or Foreign Body Hole |
-22 | 2 cm metallic fragment in mid chest | R | Bullet or Foreign Body Hole |
-23 | Bullet visible below costal margin under 11th rib | L | Bullet or Foreign Body Hole |
-24 | 2 bullets in LUQ | L | Bullet or Foreign Body Hole |
-25 | Shattered distal scapulae | L | Bullet or Foreign Body Hole |
-26 | Shattered distal scapulae | R | Bullet or Foreign Body Hole |
-31 | Unstable fracture of L1 | N/A | None |
-32 | Compression fracture of L5 | N/A | None |
-38 | ILIAC crest comminuted fracture with metallic fragments | R | Bruise |
-42 | Non-displaced pubic ramus fracture | N/A | None |
-43 | Superior and inferior pubic ramus fracture | R | None |
-44 | Pelvis fracture with symphysis diastasis and sacroiliac joint disruption | N/A | None |
-45 | Bullet in sacrum | N/A | None |
-46 | Shattered acetabulum | L | Latex "shorts" |
-47 | Shattered femoral head | L | Latex "shorts" |
-48 | Comminuted midshaft fracture | L | Swelling |
-49 | Left femur comminuted fracture 12 cm above knee | L | Swelling |
-51 | Comminuted fracture of tibia and fibula | R | Swelling |
-52 | Displaced ankle fracture | R | Swelling |
-55 | Displaced fracture of radius and ulna | L | |
-57 | Angulated comminuted fracture of midshaft radius and ulna | R |
