STI Streamline Pain Management C-Arm Imaging Table, 5 Motion
Product Description

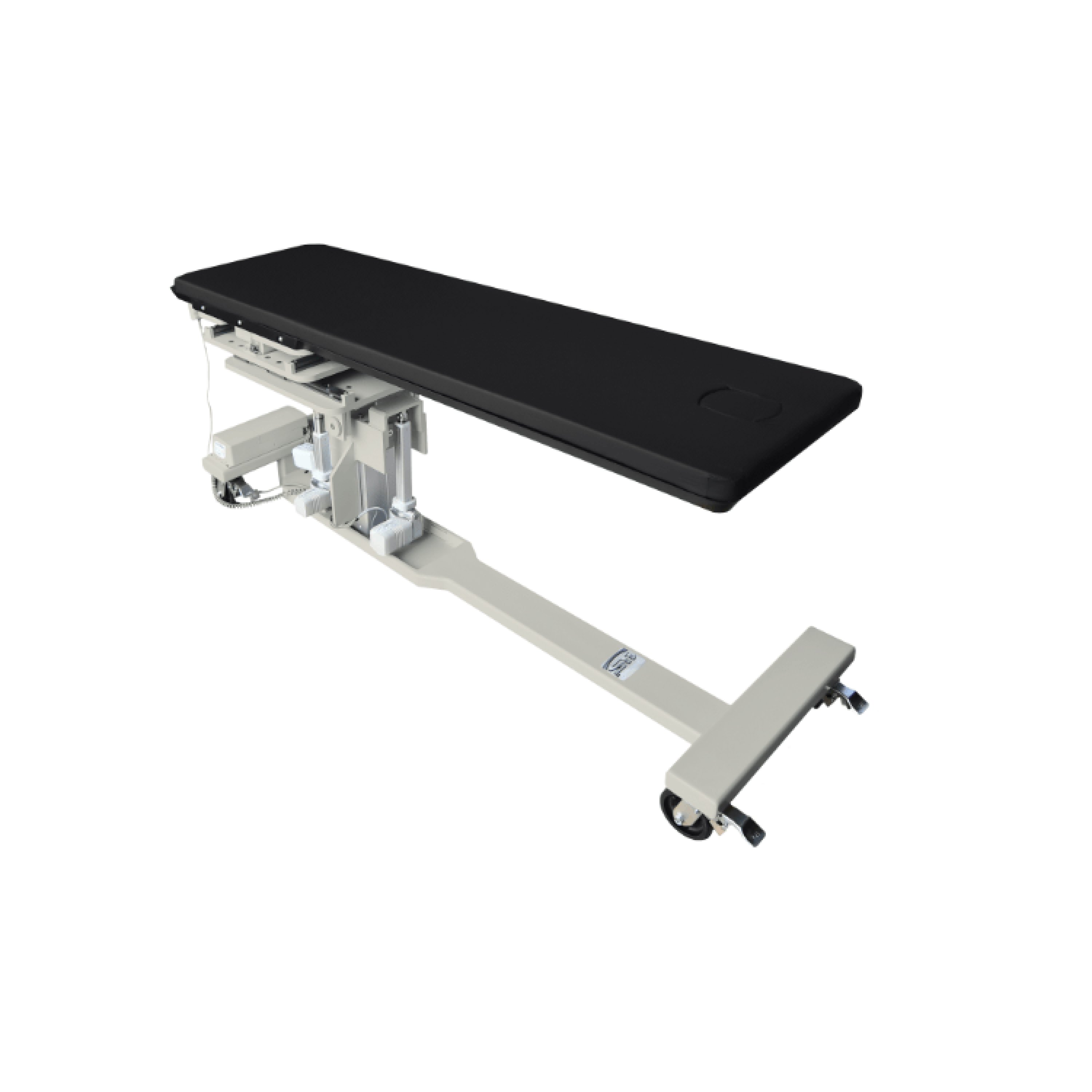

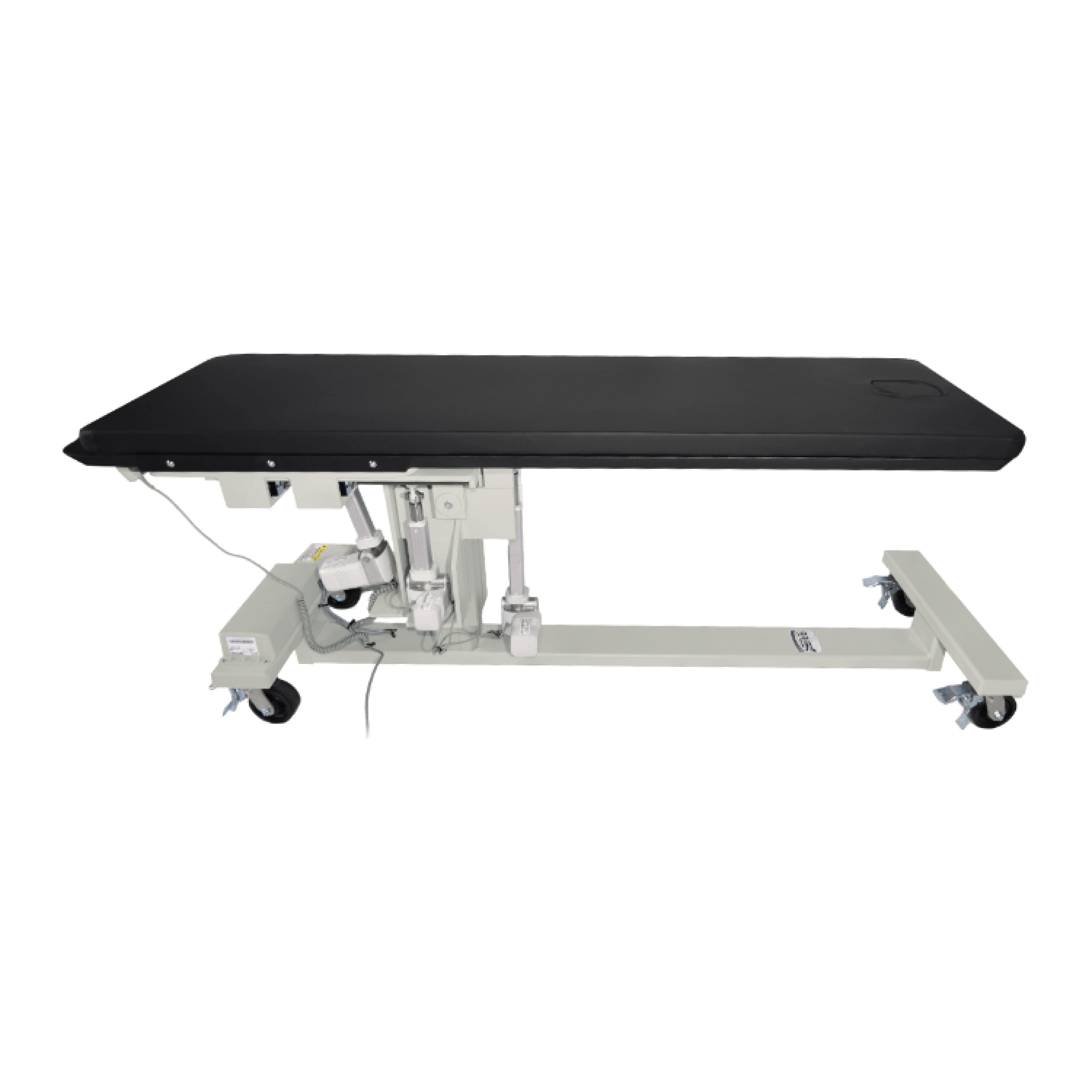

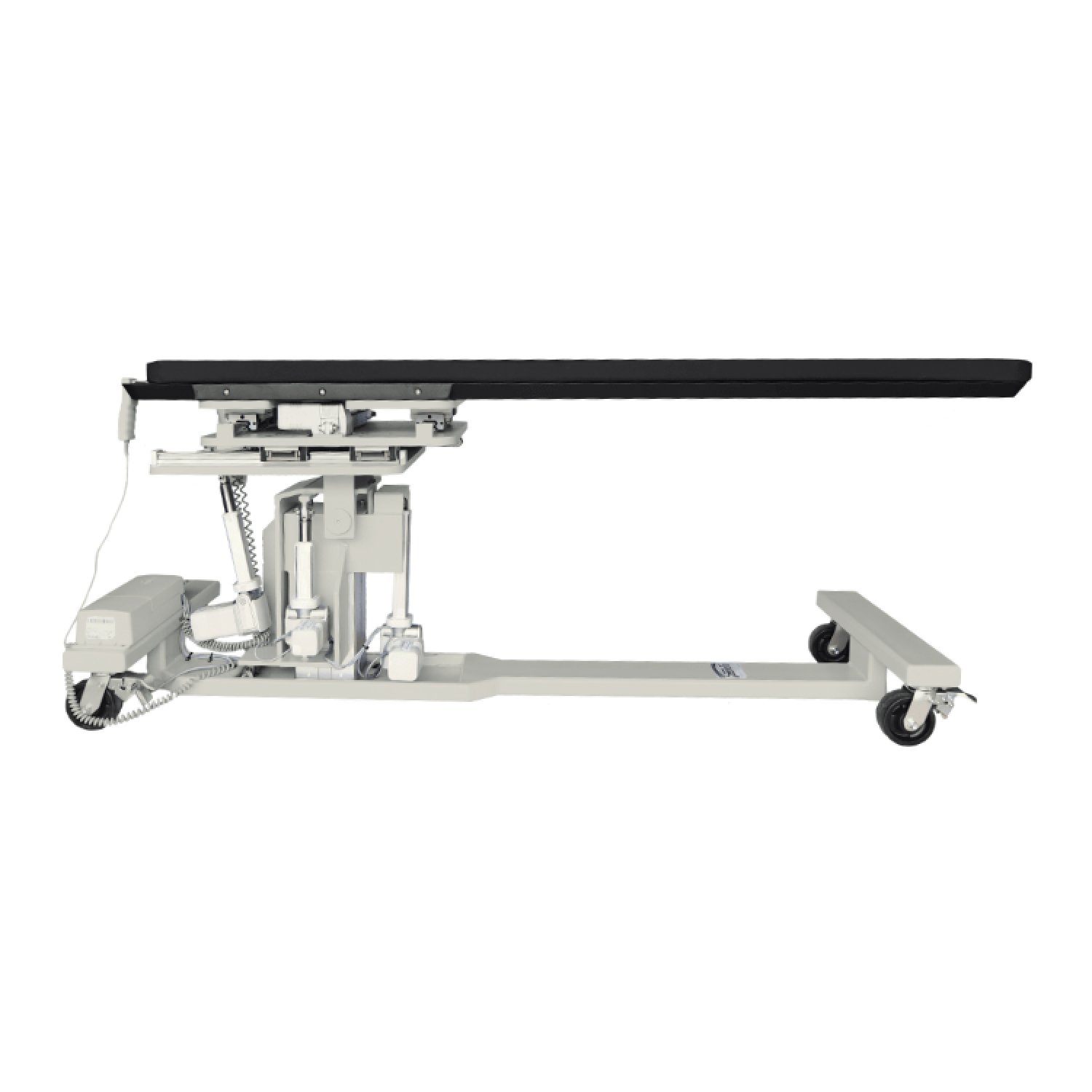

The STI Streamline 5 Motion C-Arm Imaging Table Model SL-5 is perfect for pain management. Each diving board style table comes with a pair of patient straps, a facial cutout (which can be filled), and a hand control. Pain procedures often require precise positioning. These c-arm tables are quiet and vibration free leaving the end user worry free. Additionally, the radiolucent tabletop does not have any cross-members, allowing for full visualization under fluoro.
Motor Driven Motion:
-
Height Adjustment: 33.5" to 43.5"
-
Lateral Tilt: (+/-) 17°
-

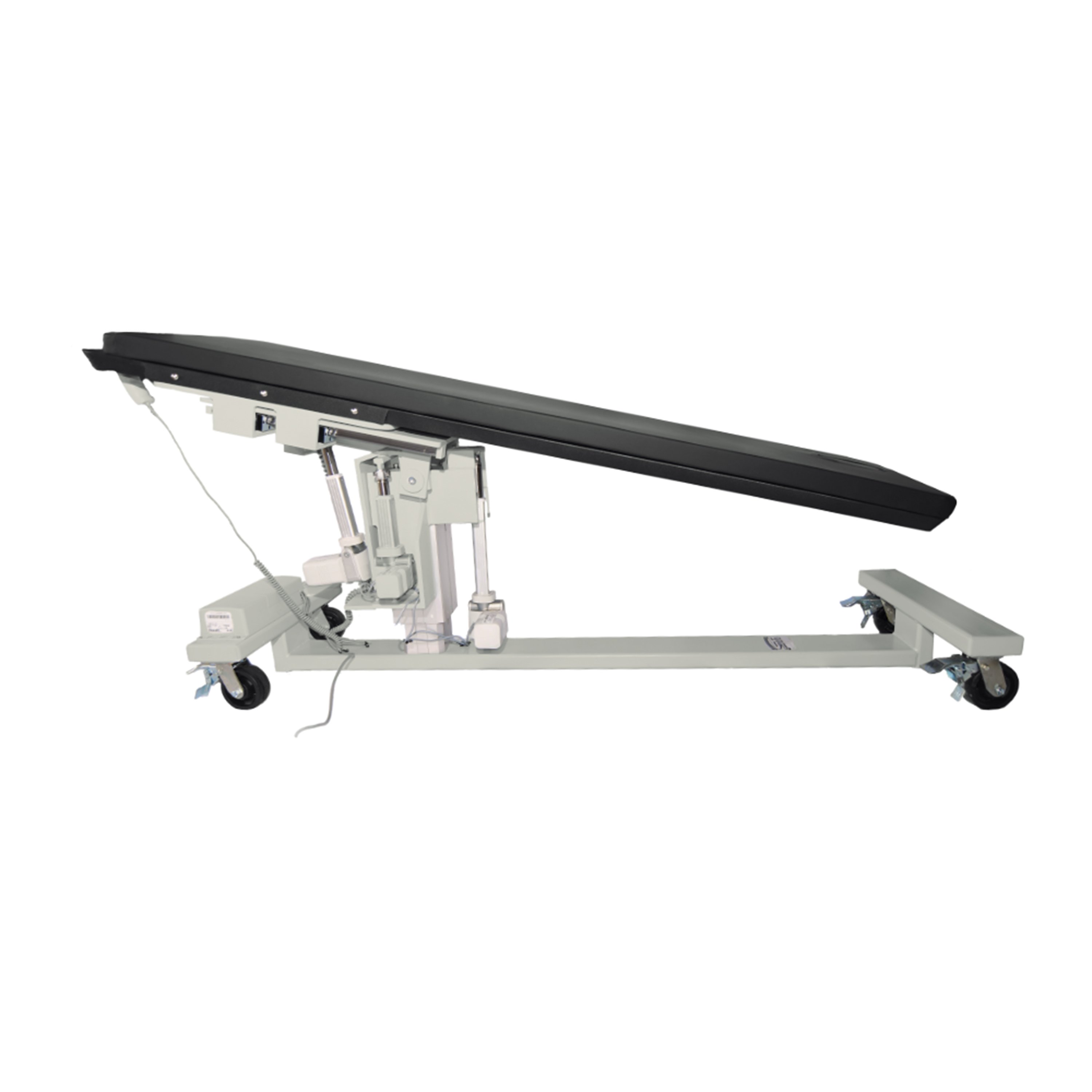

Trendelenburg: (+/-) 13°
-
Longitudinal Travel: 10" (+/- 5")
-
Lateral Travel: 10" (+/- 5")
Features:
-
Carbon fiber, diving board style for easy C-arm access
-
An 84″ length can accommodate even the tallest of patients
-
A 24″ top eliminates the need for arm boards
-
2" thick, high quality patient comfort pad
-
Facial cut-out for prone procedures
-

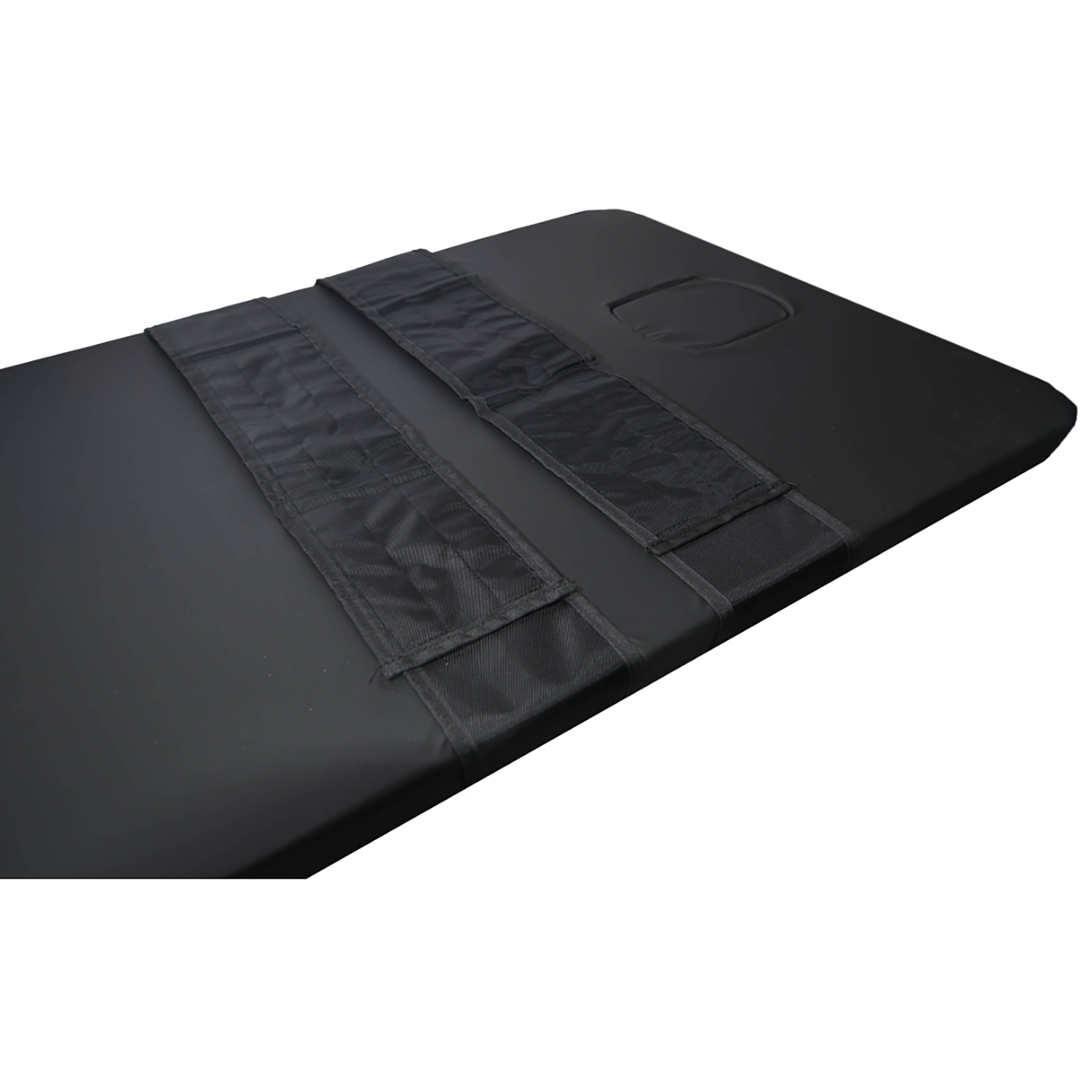

(2) patient straps
-
Long, I-style base
-
Extreme low position makes boarding patients fast, easy, and safe
-
Simple to use, high-quality wheel locks
-

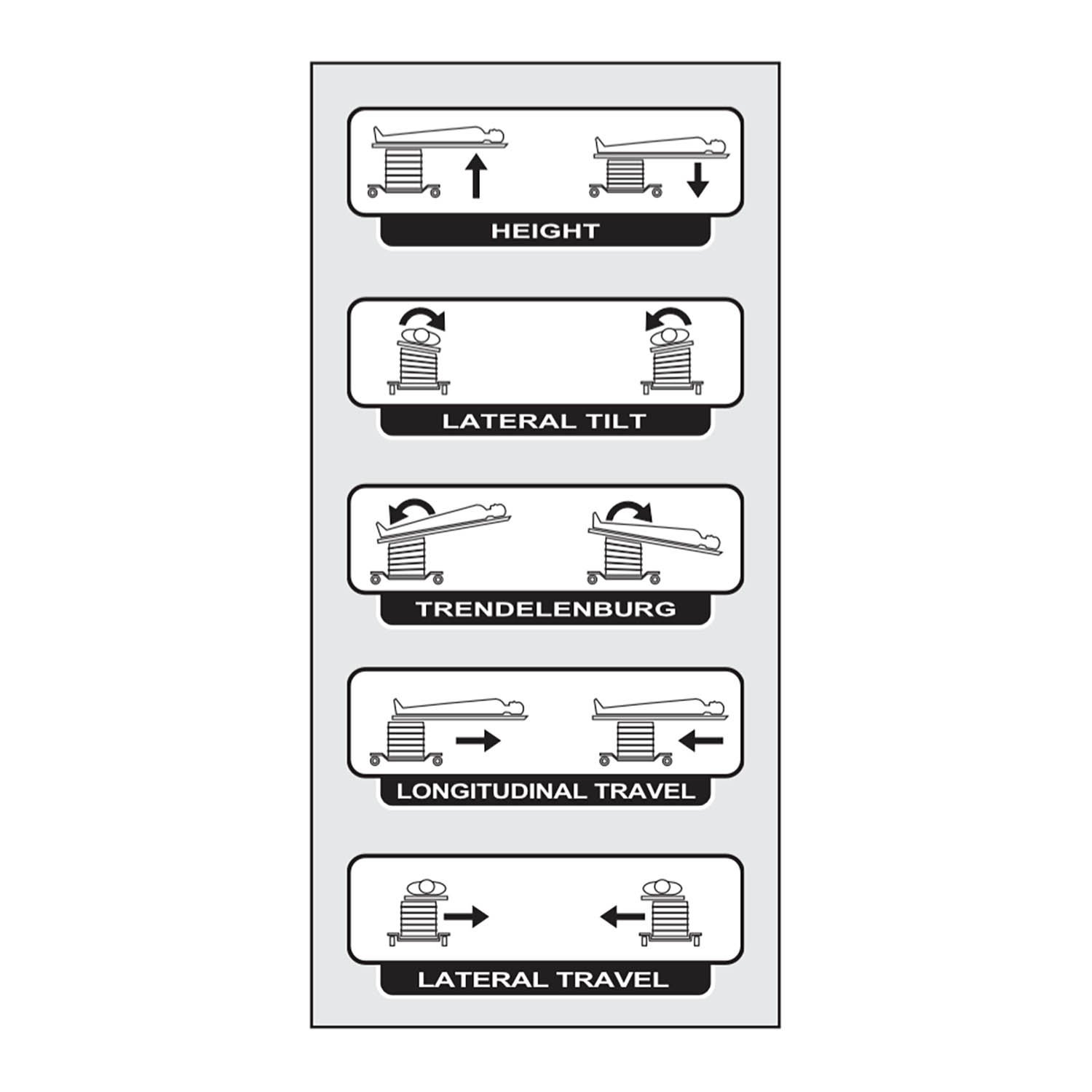

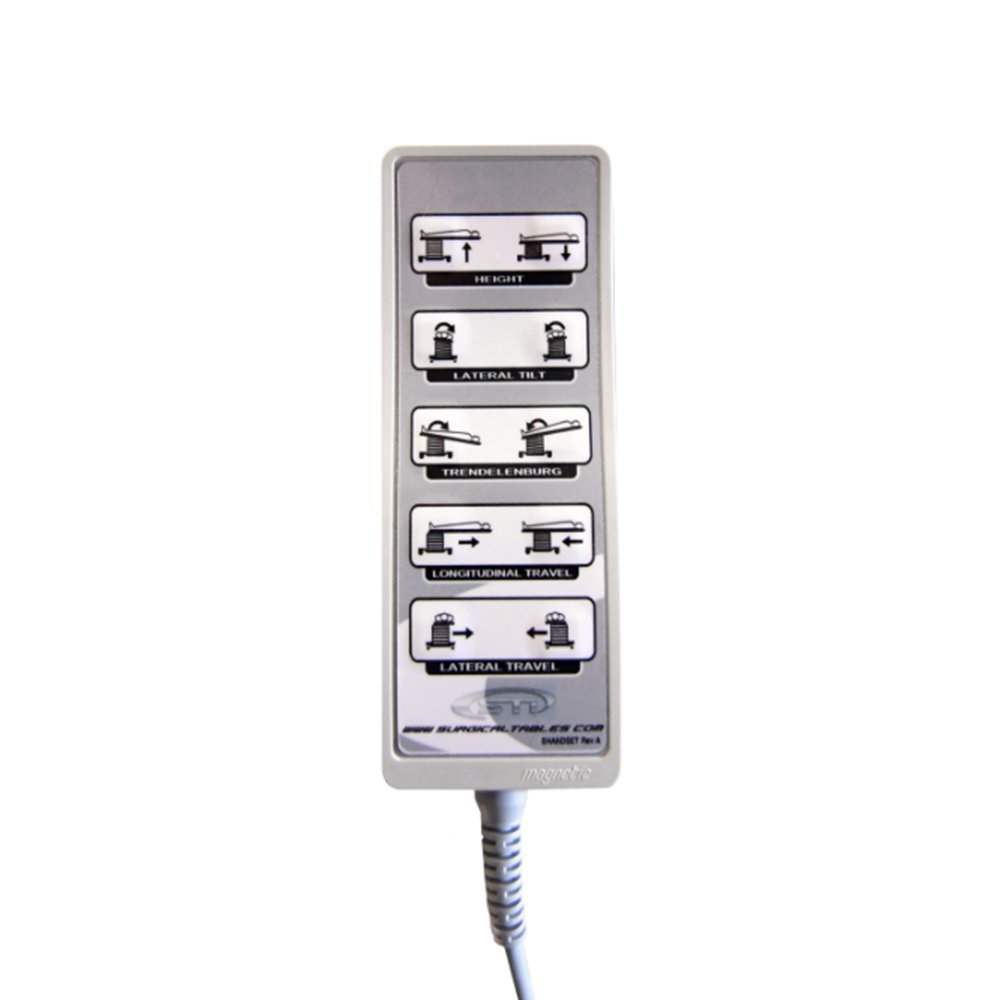

Come with a hand control that features
-
Height Buttons: support raising and lowering the tabletop
-
Lateral Tilt Buttons: control the lateral angle of inclination
-
Trendelenburg Buttons: control the angle of inclination of the head end
-
Longitudinal Travel Buttons: move the table top in the longitudinal direction
-
Lateral Travel Buttons: controls table movements in the lateral direction
-
-
Large patient capacity – high-end actuator motor supports 500-pound loads
-
Light weight – easy to physically move the table within the room or from room to room
The Streamline series is available in four additional models: SL-1 (1 motion), SL-2 (2 motion), SL-3 (3 motion), and SL-4 (4 motion).
Specifications:
Control | Hand control activates all motions |
Tabletop and Mattress Attenuation | 1.6mm Al.(+/-0.2mm tolerance) |
Tabletop Material | Carbon fiber skin/foam core with integral facial cut-out |
Radiolucent Area | 56" L x 24" W unobstructed |
Tabletop | 84" L x 24" W x 1.62" T |
Table Dimensions | 86" L x 26" W |
Mattress | 2" thick |
Patient Straps | 2 |
Castors | 5", full swivel & wheel lock |
Base | I-Shaped Steel Base with Epoxy Finish - 82" L x 26" W |
AC Voltage | 120V |
Frequency | 60 Hz |
AC Current | 6.5A |
Electric Shock Protection | Class I |
Applied Part Rating | Type B |
Mode of Operation | 10% Duty Cycle - 1 min on / 9 minutes off |
Specifications
Manufacturer | Surgical Tables Inc |
---|---|
Actual Product Weight | 695 lbs |
Overall Height | 43.5" |
Overall Width | 26" |
Overall Length | 86" |
Weight Capacity | 500 lbs |
Country of Manufacture | United States |
Item Ships From | Massachusetts |
Literature
Instructions
