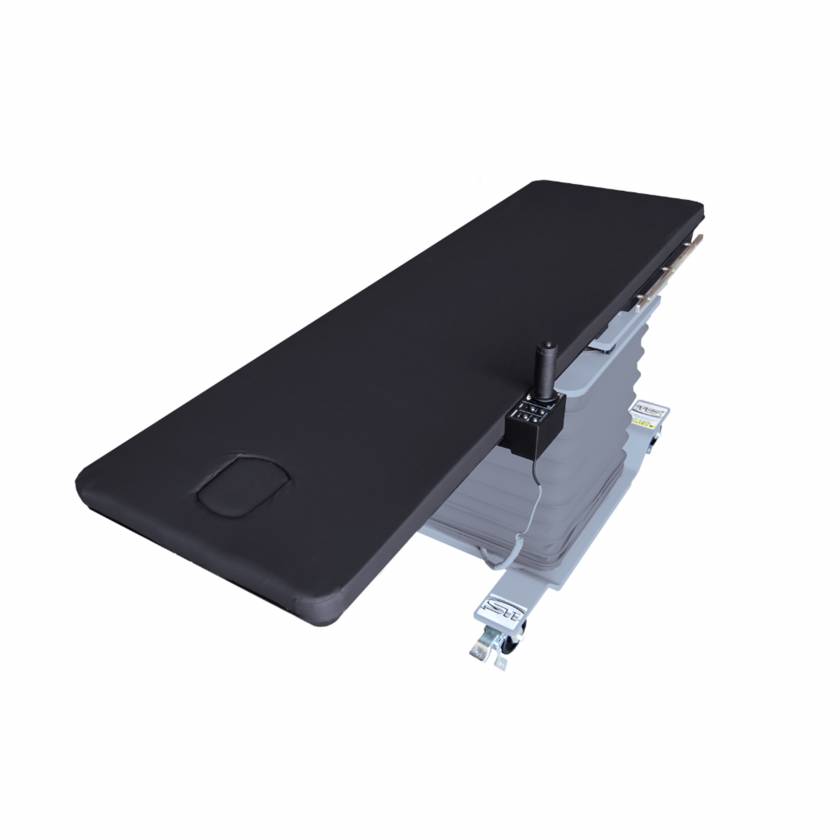

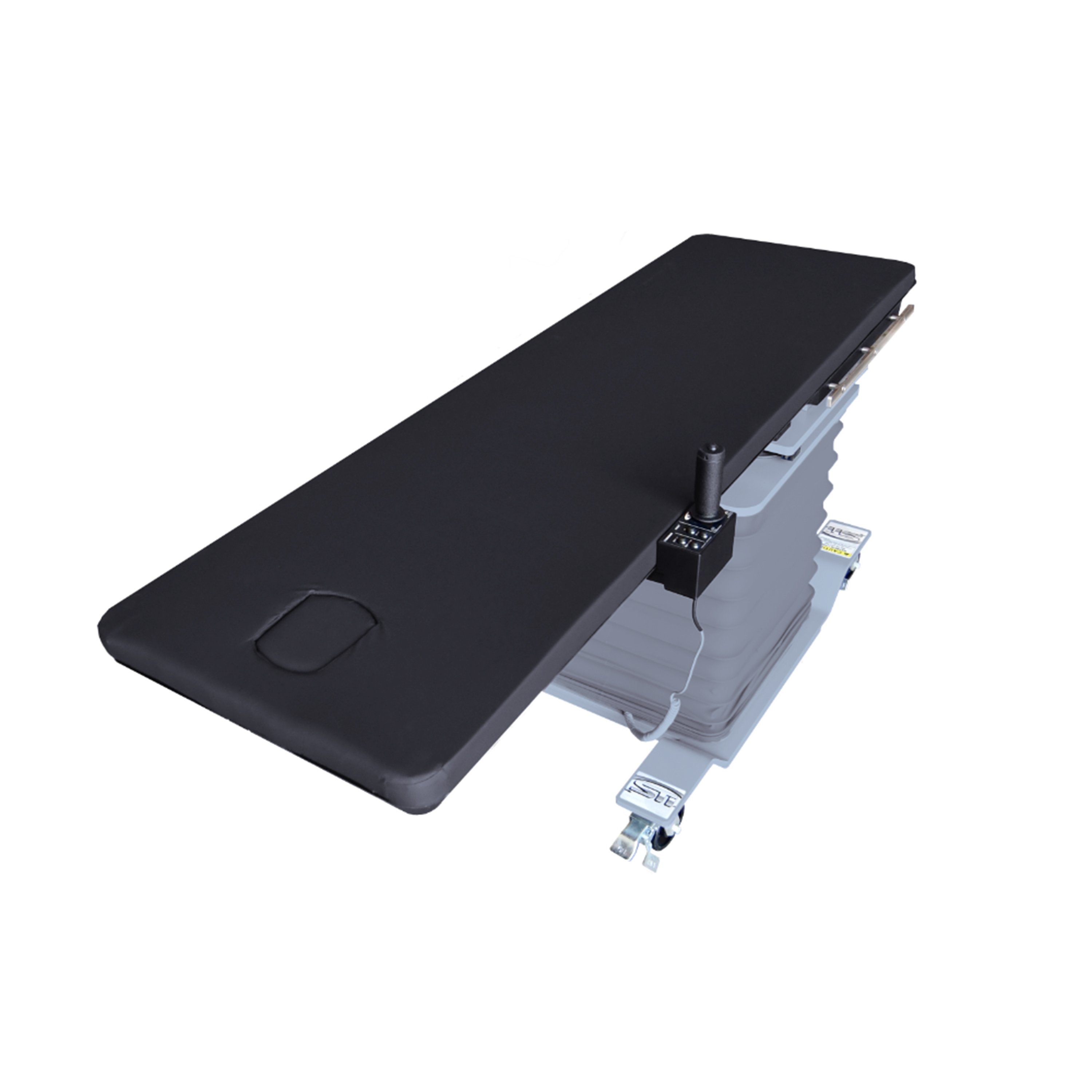

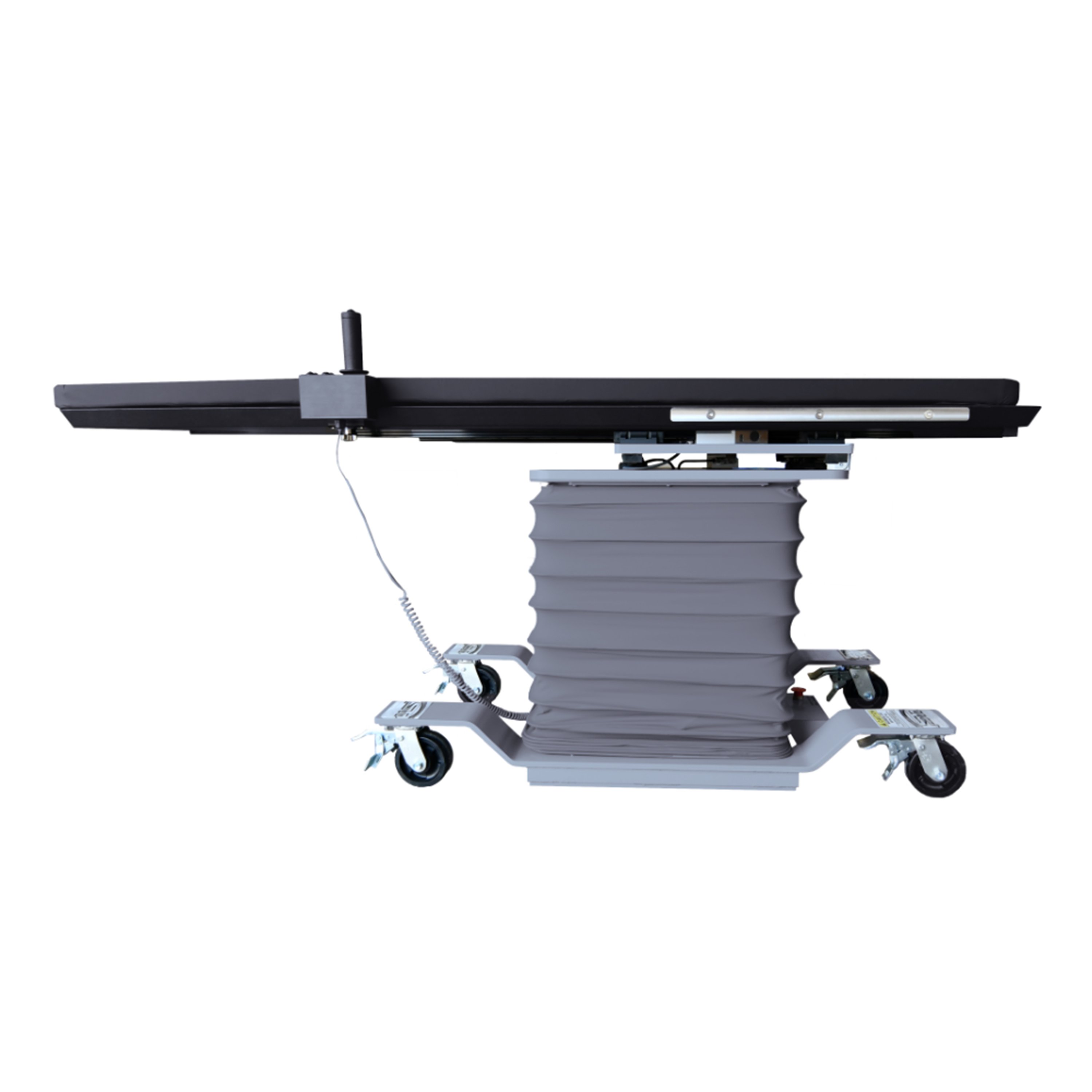

STI VMAX Vascular C-Arm Imaging Table, 4 Motion
Product Description
The V-MAX-T Vascular C-Arm tables offer the user ease of use as can be seen in the instant response electric brake which releases for the four-way float function to operate. The table top smoothly floats until the button is released which stops the tabletop from moving.
Motion:
- Motor Driven Height Adjustment: 30" to 40"

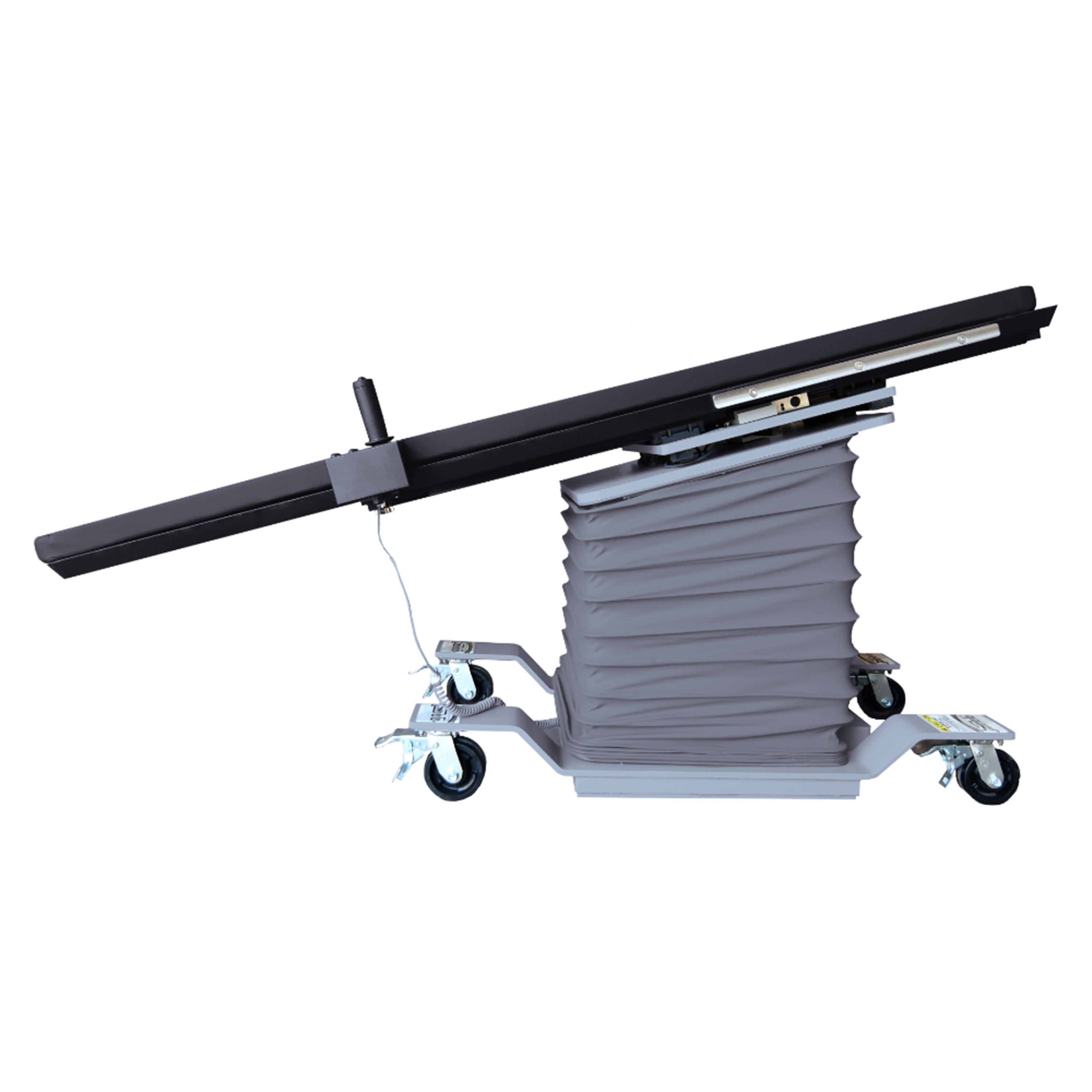

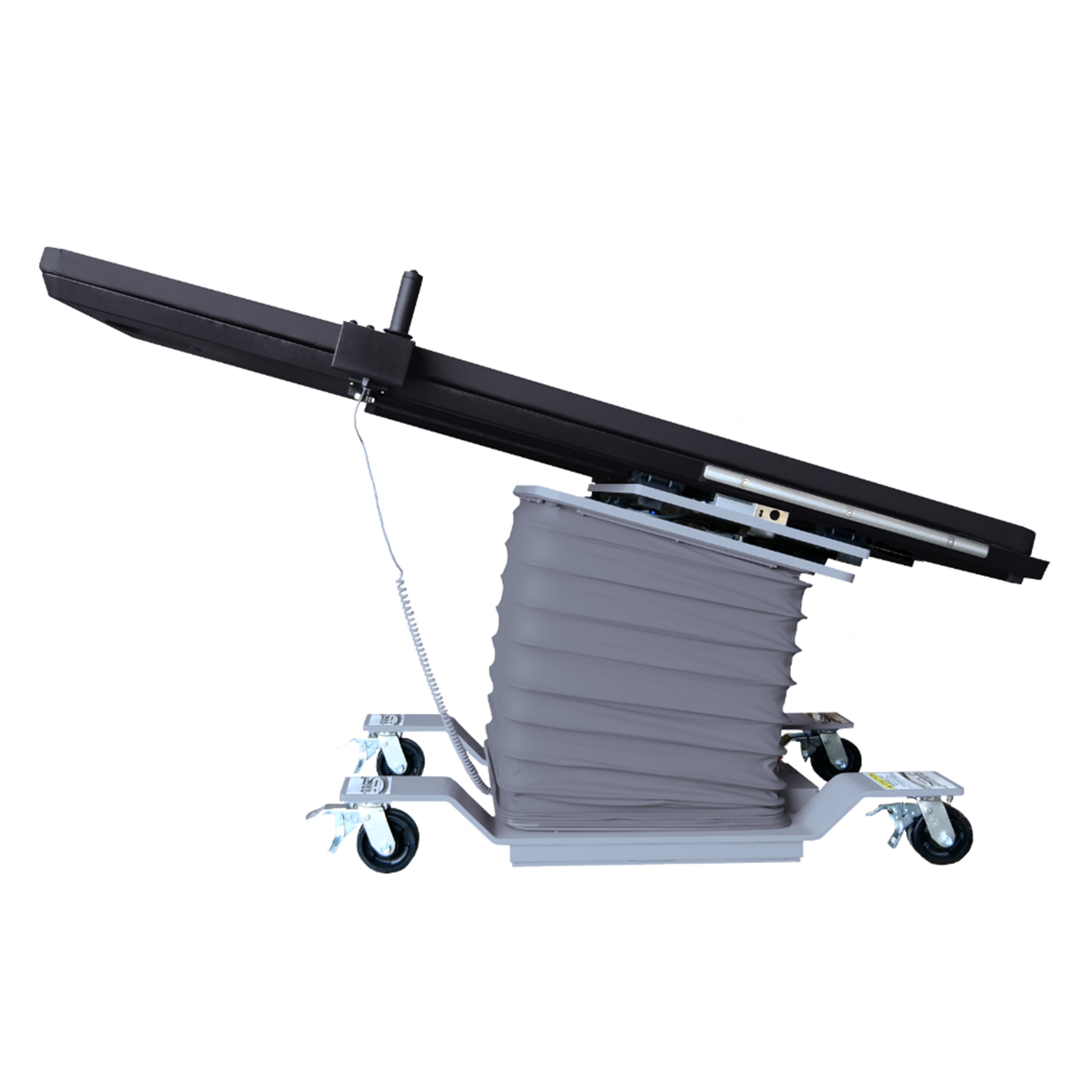

- Motor Driven Trendelenburg: (+/- 17°)

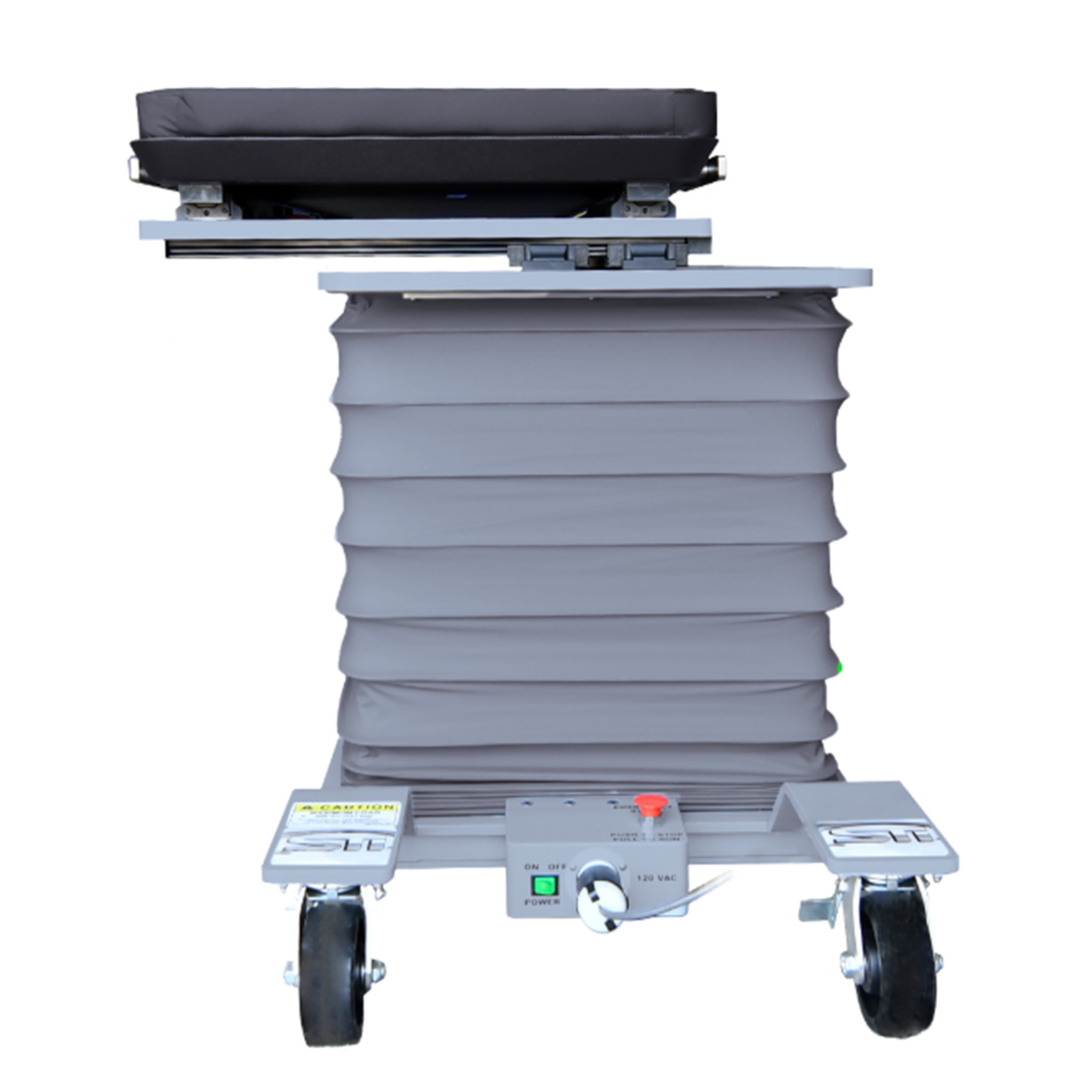

- Lateral Float: 14" (+/- 7")
- Longitudinal Float: 36" (+/- 18")
Features:
- Diving board style for easy C-arm access
- An 84" length to accommodate even the tallest of patients
- A 24" wide carbon fiber top eliminates the need for arm boards
- 2" thick, patient comfort pad
- Facial cut-out access

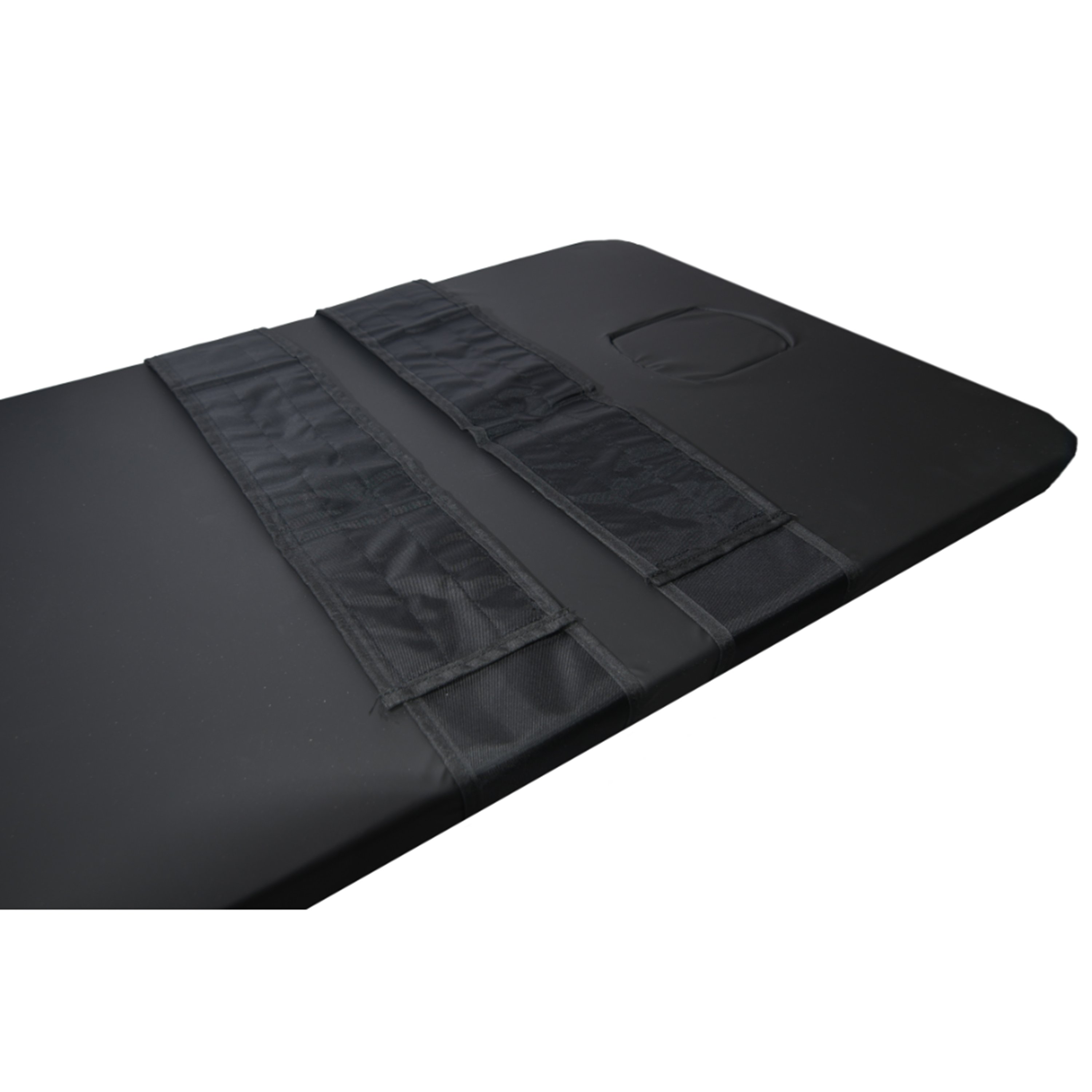

- (2) patient straps
- Fixed side rails
- Short, H-style steel base with Epoxy Finish
- Easy patient transfer to table
- Rotating and lockable casters
- Emergency Stop Switch
- Twist-lock removable cord
- Bellows to cover and protect the table motor assembly

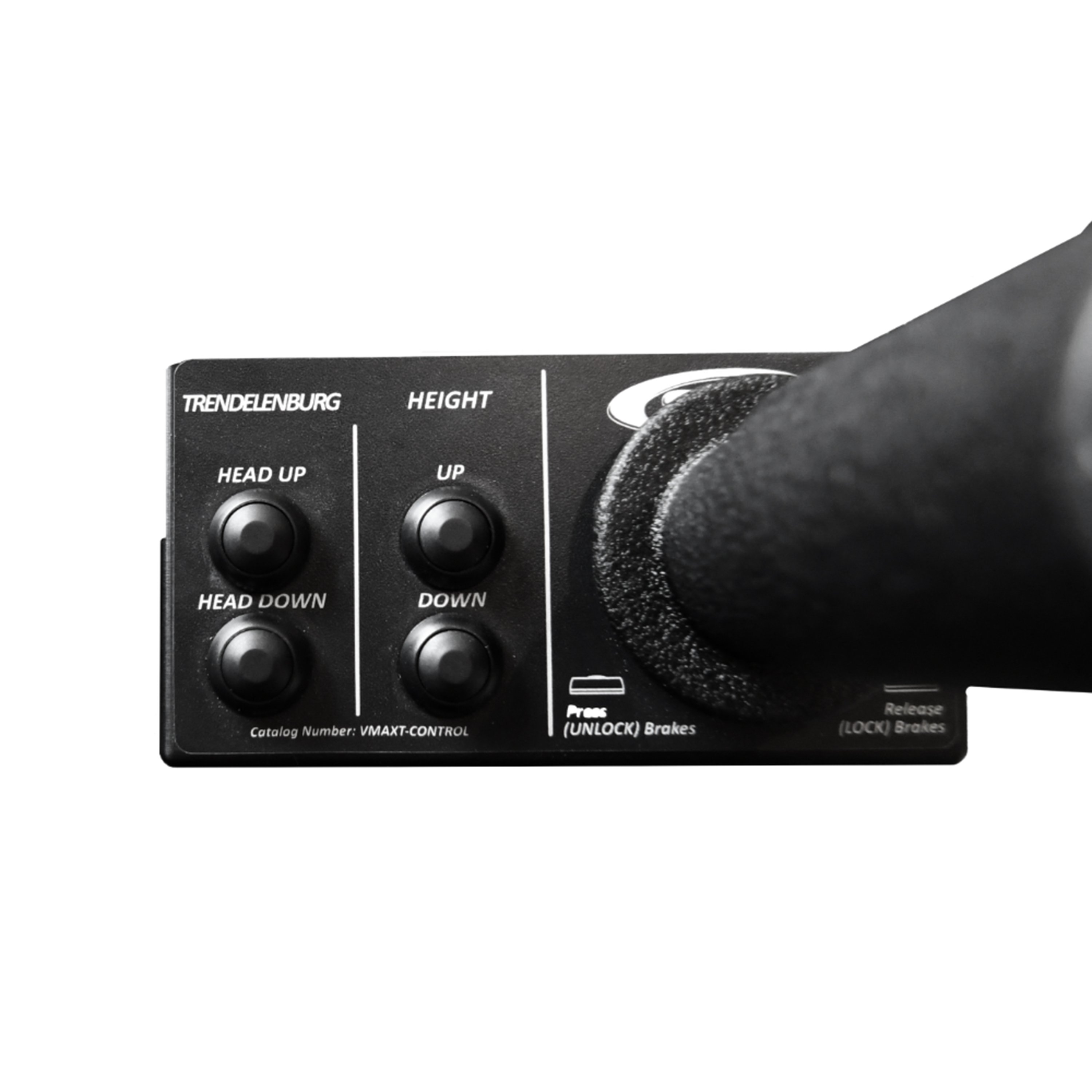

- The included Joystick is designed with an excellent grip that offers the user great control for easy table movement:
- The height buttons support raising and lowering the table top
- The Trendelenburg buttons control the angle of inclination of the head end.

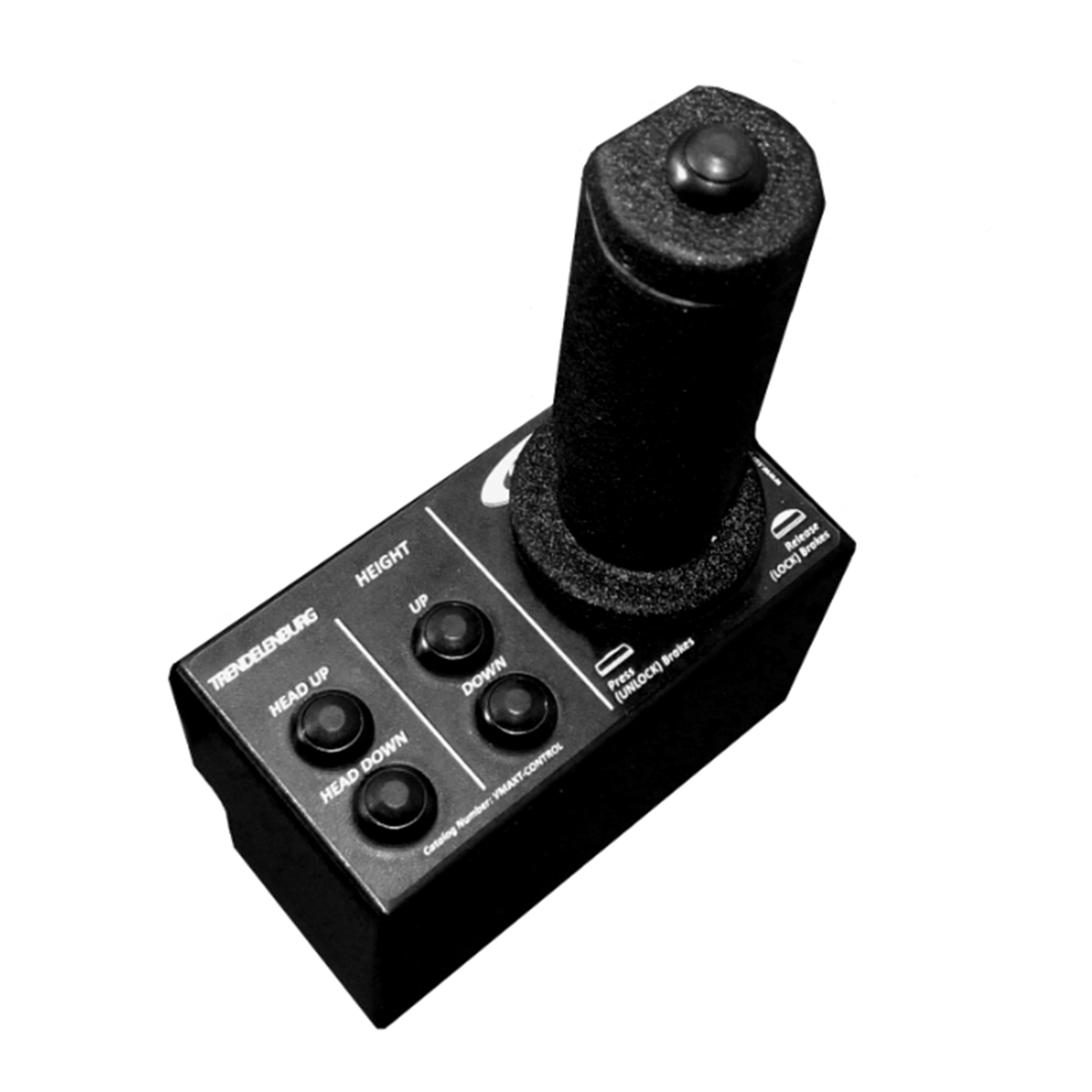

- The four-way float enables the user to move laterally and longitudinally with the press of one button at the top of the joystick
- The joystick can be placed anywhere along the edge of the table imaging area. This allows the end user to easily access the joystick from whichever side they choose to work from.
- Large patient capacity - 500 lbs loads
- Any OR accessories (not included) can be rigidly attached to the table top
You may also want to consider the V-MAX Vascular C-Arm Imaging Table, which features 3 Motion.
Specifications:
| Control | Joystick activates all motions |
| Tabletop and Mattress Attenuation | 1.6mm Al.(+/-0.2mm tolerance) |
| Tabletop Material | Carbon fiber skin/foam core with integral facial cut-out |
| Radiolucent Area | 56" L x 24" W unobstructed |
| Tabletop | 84" L x 24" W x 1.62" T |
| Table Dimensions | 86" L x 26" W |
| Mattress | 2" thick |
| Patient Straps | 2 |
| Castors | 5", full swivel & wheel lock |
| Base | H-Shaped Steel Base with Epoxy Finish - 51" L x 26" W |
| AC Voltage | 120V |
| Frequency | 60 Hz |
| AC Current | 6.5A |
| Electric Shock Protection | Class I |
| Applied Part Rating | Type B |
| Mode of Operation | 10% Duty Cycle - 1 min on / 9 minutes off |
Specifications
| Manufacturer | Surgical Tables Inc |
|---|---|
| Actual Product Weight | 835 lbs |
| Overall Height | 40" |
| Overall Width | 26" |
| Overall Length | 86" |
| Weight Capacity | 500 lbs |
| Country of Manufacture | United States |
| Item Ships From | Massachusetts |
