Waldmann Opticlux 10-1 LED Magnifier Light with Double Arm
Product Description
This Opticlux 10-1 LED Magnifier Light with Double Arm, Wood Light is a robust magnifier with 1.9x magnification, the latest LED modules, ergonomically tested arm joints, and intuitive operation with easy-to-use controls. It boasts a 6500K daylight-quality light field, outstanding color rendering properties, and a Wood light option that offers double duty for the medical facility or lab. As an approved medical device, it is ideal for dermatology, veterinary medicine, and dentistry, as well as in laboratories and for monitoring sterilized products.
Features:
- Peerless light field with an oversized 6.3” wide lens, 1.9x (3.5d) magnification, and adjustable step-free dimming
- Ergonomic handling with a spring-balanced arm and friction joints, allowing smooth handling without the luminaire head drifting or drooping
- Long service life ensured by premium high-powered LEDs, a scratch-resistant special-coated lens, and precision components ensure strength and durability
- Effortless observation provided by 90 high-quality LEDs, low-shadow illumination
- More economical and reliable use due to high-efficiency LED light technology, which saves energy and ensures long-term maintenance-free operation
- Flexible positioning with long, easily maneuverable joints and an ergonomically-tested arm for ease of use and reliable precision
- Precise positioning with a light arm of aluminum and fiberglass-reinforced friction joints ensures long life and highly accurate positioning despite low weight
- Simple, versatile mounting options, available as a ceiling version and a 16mm pin-mount version for wall, table, rail, and rolling floor stand
- Easy cleaning with a lens cover, keypad, and premium housing designed for fast cleaning
- Optimal color rendering, especially for skin and red tones, reproduced close to optimal daylight; color rendering Opticlux CRI / Ra > 93, R9 > 90, R13 > 9W
Technical Specifications:
- Product Type: Magnifier Light
- Color Temperature: 6500K
- Color Rendering Index (CRI): ≥95
- Voltage:100-240v AC
- Wattage:12W
- Average Life Hours: 50000
- Work Equipment: Electronic Converter
- Color Finish: Grey/White
- Arm Type: Articulating
- Luminaire Body Material: Polycarbonate
- Fitted with: LED
- Plug: Hospital Grade
- Cord Length: 5.9 ft for all except for D16070000 (it is wired to the ceiling)
- Certifications:
- EN 60601-1
- ETL/cETL
- Magnifier/Lens:
- Material: Plastic
- Strength: 3.5 Diopters
- Magnification: 1.88x
| SKU / Model | Mounting Type | Product Dimensions | Product Weight | Class of Protection |

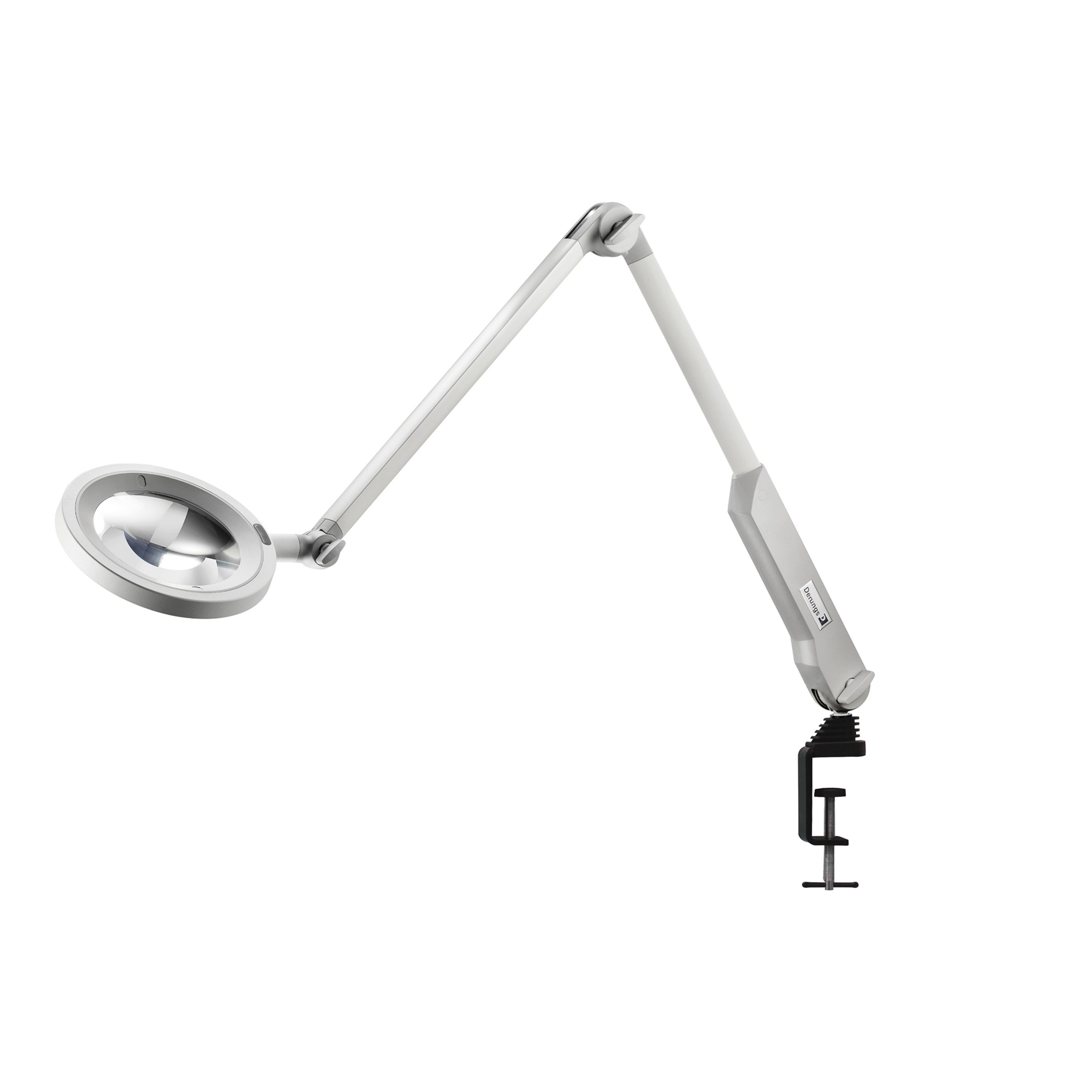

| D15954100 / P TX | Table Clamp Mounted | 8.7" L x 8.7" W x 42.5" H | 4.6 lbs | Class II |

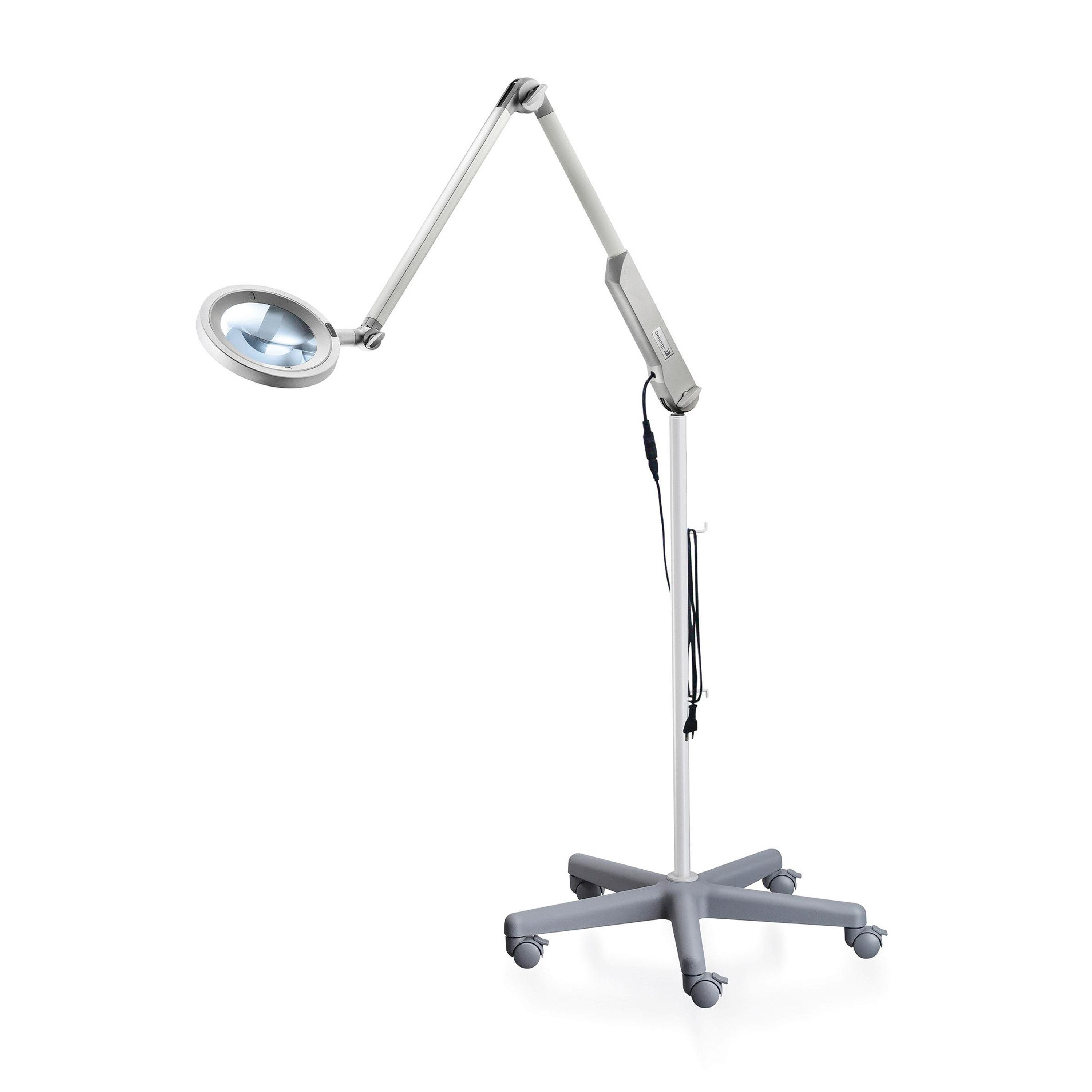

| D15954110 / P TX | Rolling Stand Mounted | 8.7" L x 8.7" W x 42.5" H | 4.6 lbs | Class II |
| D15954120 / P TX | Wall Mounted | 8.7" L x 8.7" W x 42.5" H | 4.6 lbs | Class II |
| D15954130 / P TX | Wall Mounted with Extension Arm | 8.7" L x 8.7" W x 42.5" H | 4.6 lbs | Class II |
| D15954150 / P TX | Rail Mounted | 8.7" L x 8.7" W x 42.5" H | 4.6 lbs | Class II |

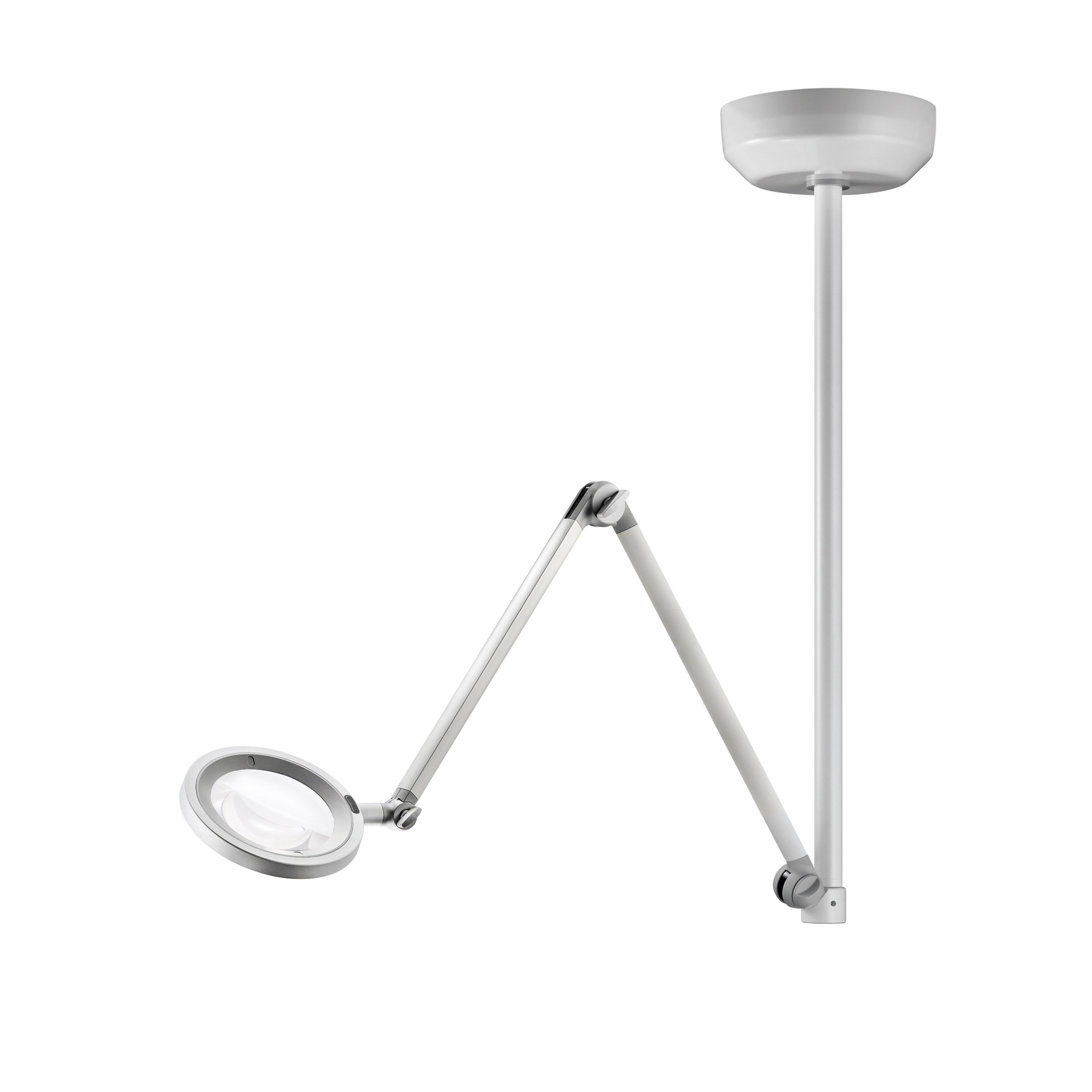

| D16070000 / C T1 | Ceiling Mounted | 8.7" L x 8.7" W x 45.6" H | 20.1 lbs | Class I |
Specifications
| Manufacturer | Waldmann |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | Switzerland |
| Item Ships From | Illinois |
