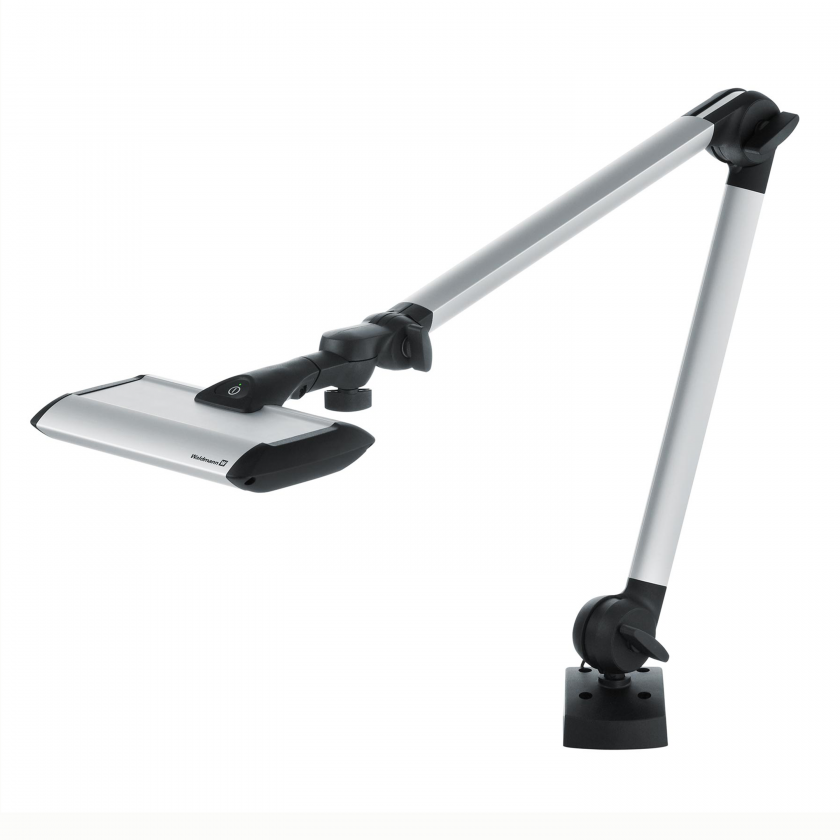

Waldmann TANEO TND LED Workbench Light with 30.9" Articulating Double Arm, Table Clamp Mounted
Product Description
The TANEO TND LED Workbench Light with 30.9" Articulating Double Arm, Table Clamp Mounted is an advanced LED lighting solution offering three light output levels and various lens, color rendering, and mounting options. It provides premium performance for diverse tasks. This is energy-efficient, consuming 30% less energy when compared to conventional task luminaires with the same luminous power, and is ideal for laboratory setup.
Features:
- Available with three head dimensions to suit your needs: 8.6", 15.7", or 22.7"
- Equipped with a 40" reach with a spring-balanced arm for flexible and adjustable positioning
- Easy access to the touch panel for dimming and on/off switching
- Continuously dimmable from 100% to 10%
- 3D head joint for ergonomic ease of use
- Provides clear prismatic lenses to reduce glare and combat eye strain
- Strong anodized aluminum housing
Technical Specifications:
- Product Type: Workbench Light
- IP Rating: IP20
- Class of Protection:
- Class II (with plug-in power supply)
- Class III (without plug-in power supply)
- Color Temperature: 4000K
- Color Rendering Index (CRI): ≥90
- Chromaticity Tolerance: LED < 3 SDCM
- Luminance (L65): <= 12,000 cd/m²
- Unified Glare Rating (4H 8H): ≤ 25
- Voltage: 100-240V AC
- Frequency: 50/60 Hz
- Average Life Hours: 50000
- Work Equipment: Electronic plug-in Ballast
- Color Finish: Silver/Black
- Arm Length: 30.9"
- Arm Reach: 40"
- Arm Type: Articulating
- Lens Material: Polyamide
- Luminaire Body Material: Polycarbonate
- Beam Angle: 75°
- Operation: Touch Panel with Switch on Head
- Cord Length:
- 8.6" model: 9.8 ft
- 15.7" and 22.7" models: 11.1 ft
- Certification:
- ETL/cETL
- CE Marked
- EN 60598-1
- Mounting Type: Table Clamp (Included)
| SKU | Head Length | Product Weight | Product Dimension | Power Consumption | Lumens / Approx. Efficiency |
| 113734000-00809719 | 8.6" | 4.4 lbs | 8.6" L x 5.4" W x 40.8 H | 12W | 700 lm / 70 lm/W |
| 113735000-00809742 | 15.7" | 4.2 lbs | 15.7" L x 5.4" W x 40.8 H | 23W | 1500 lm / 79 lm/W |
| 113736000-00809773 | 22.7" | 5.1 lbs | 22.7" L x 5.4" W x 40.8 H | 30W | 2300 lm / 88 lm/W |
Specifications
| Manufacturer | Waldmann |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | Germany |
| Item Ships From | Illinois |
