Waldmann Tevisio LED Magnifier Light with 3.5 Diopter Magnification, Pin Mount Table Clamp
Product Description
Highly demanding visual tasks are made simple with Tevisio LED Magnifier Light with 3.5 Diopter Magnification sophisticated ergonomic design and exceptional performance. TEVISIO is essential wherever your eyes are put to the test. Premium LEDs illuminate the viewing area through a wide-angle, distortion-free lens, and four-segment switching and dimming capabilities offer customized viewing options.

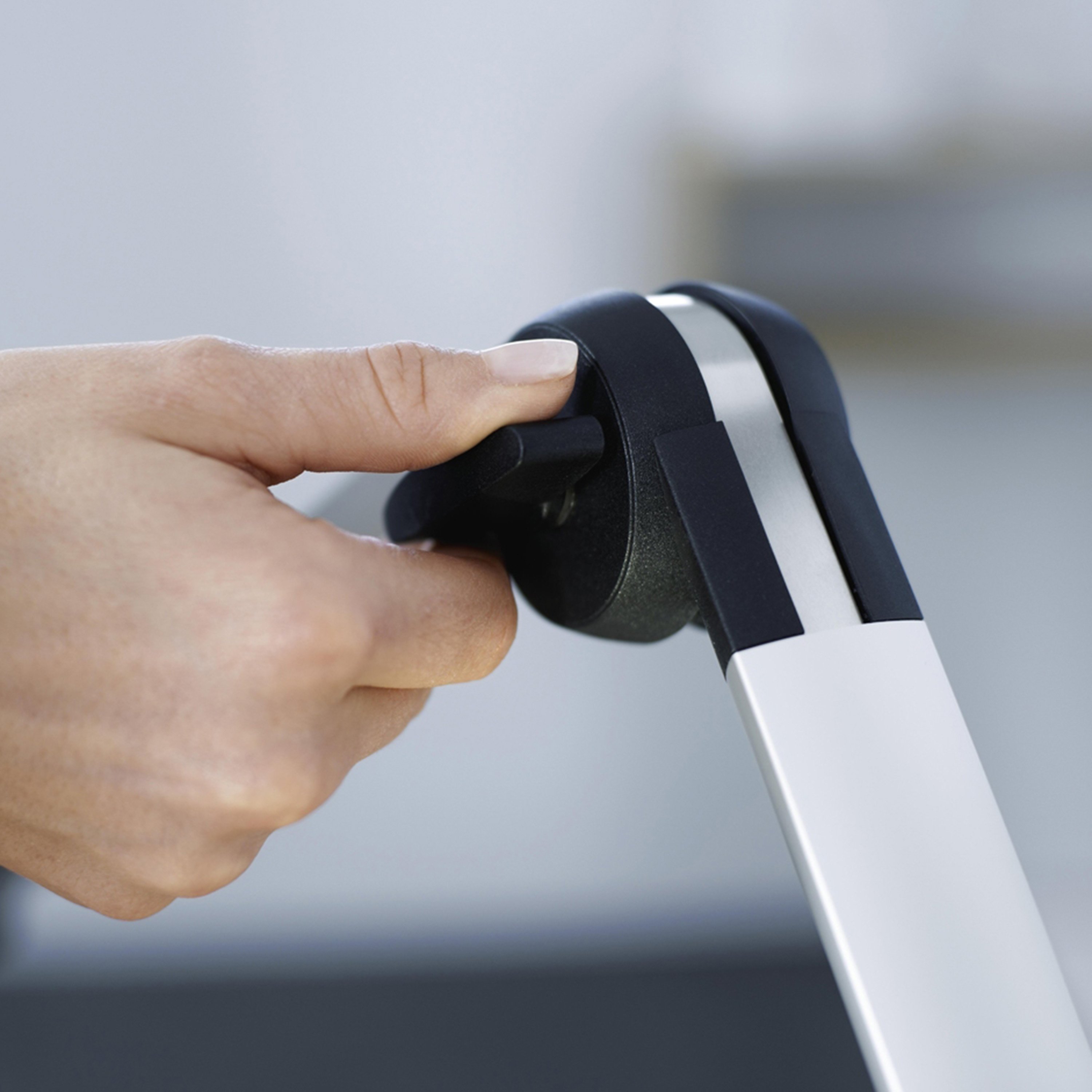

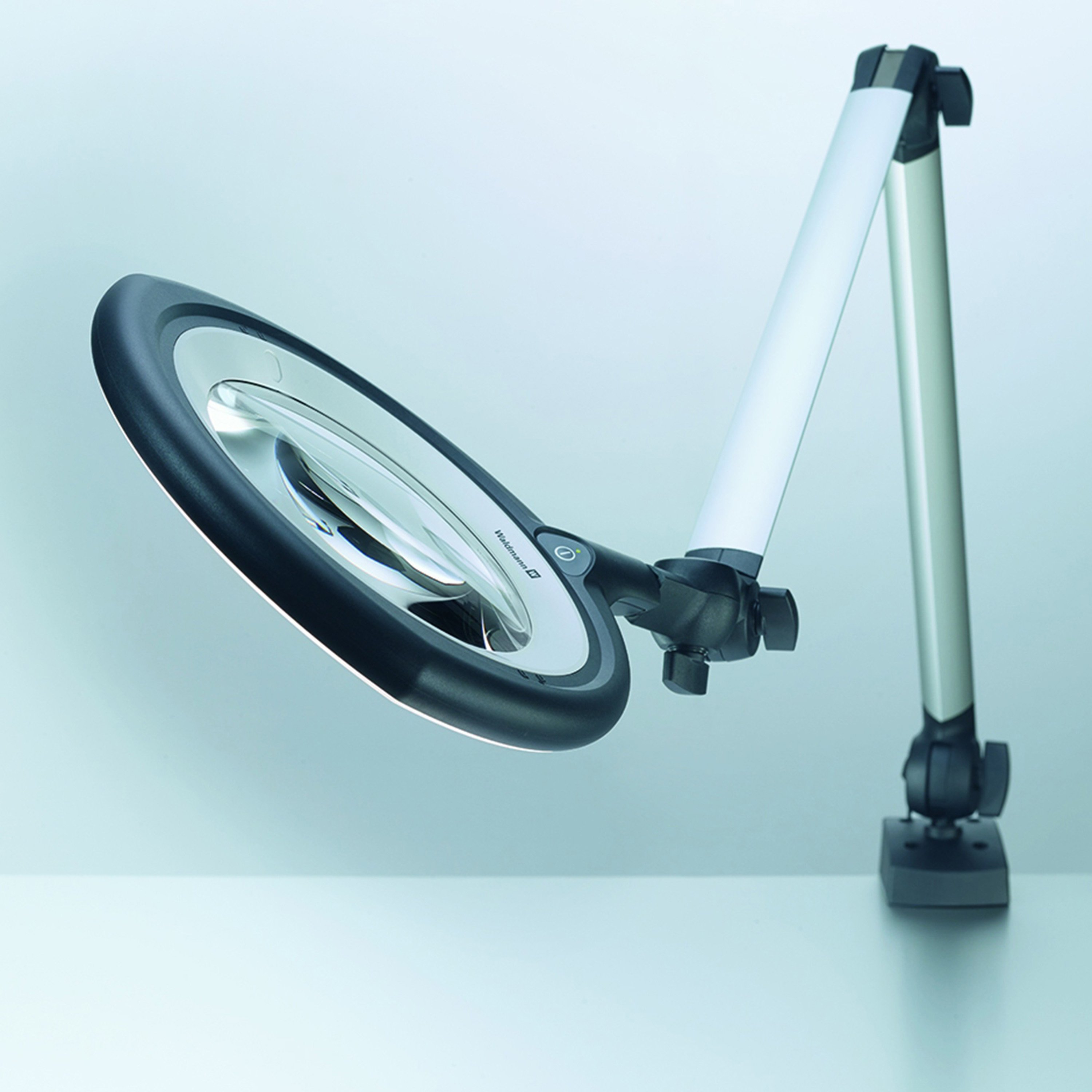

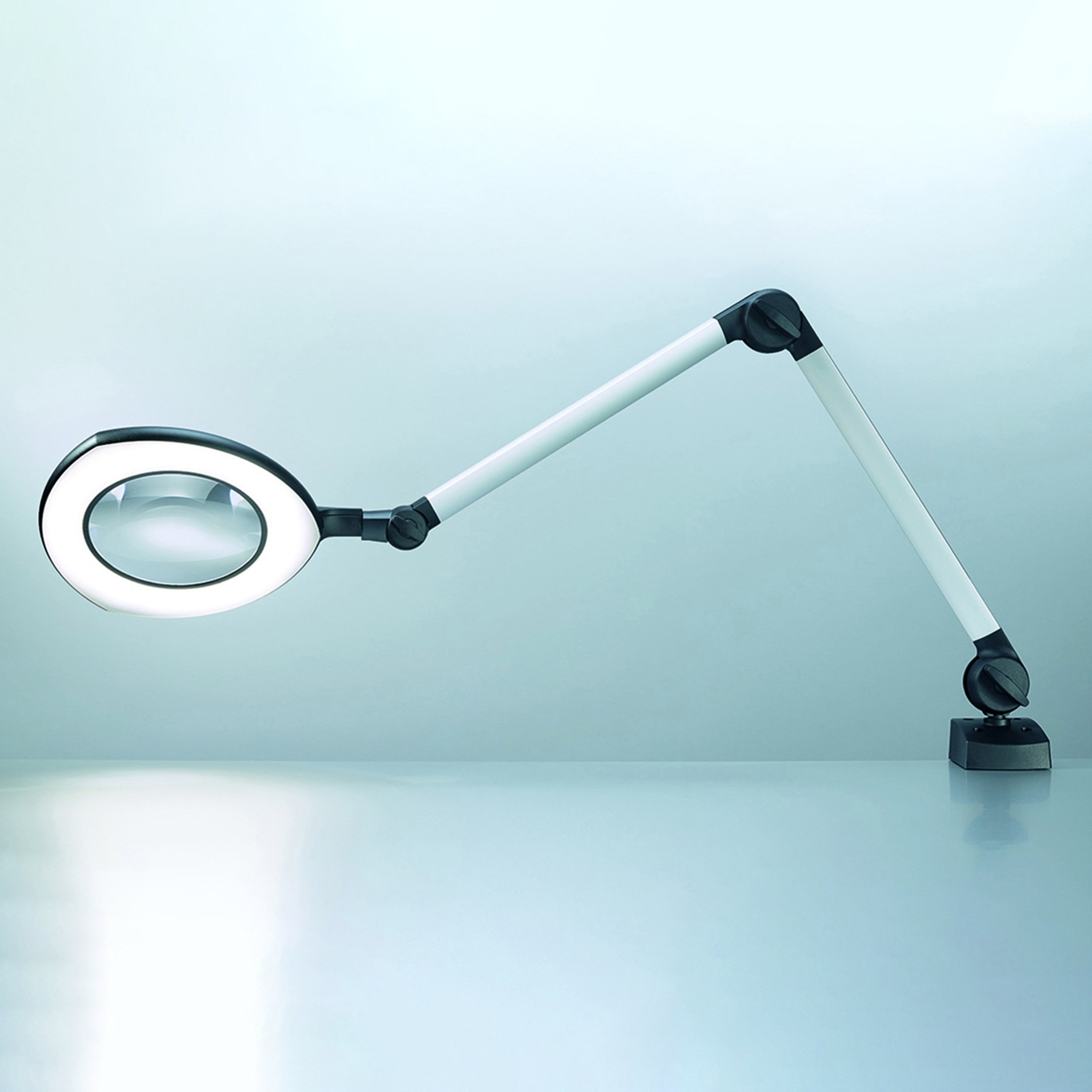

TEVISIO’s innovative balanced-arm technology made with strong anodized aluminum construction and six independent swivel joints turns the head up to 90 degrees in every direction for easy adjustment and precise positioning of the magnifier.
Features:

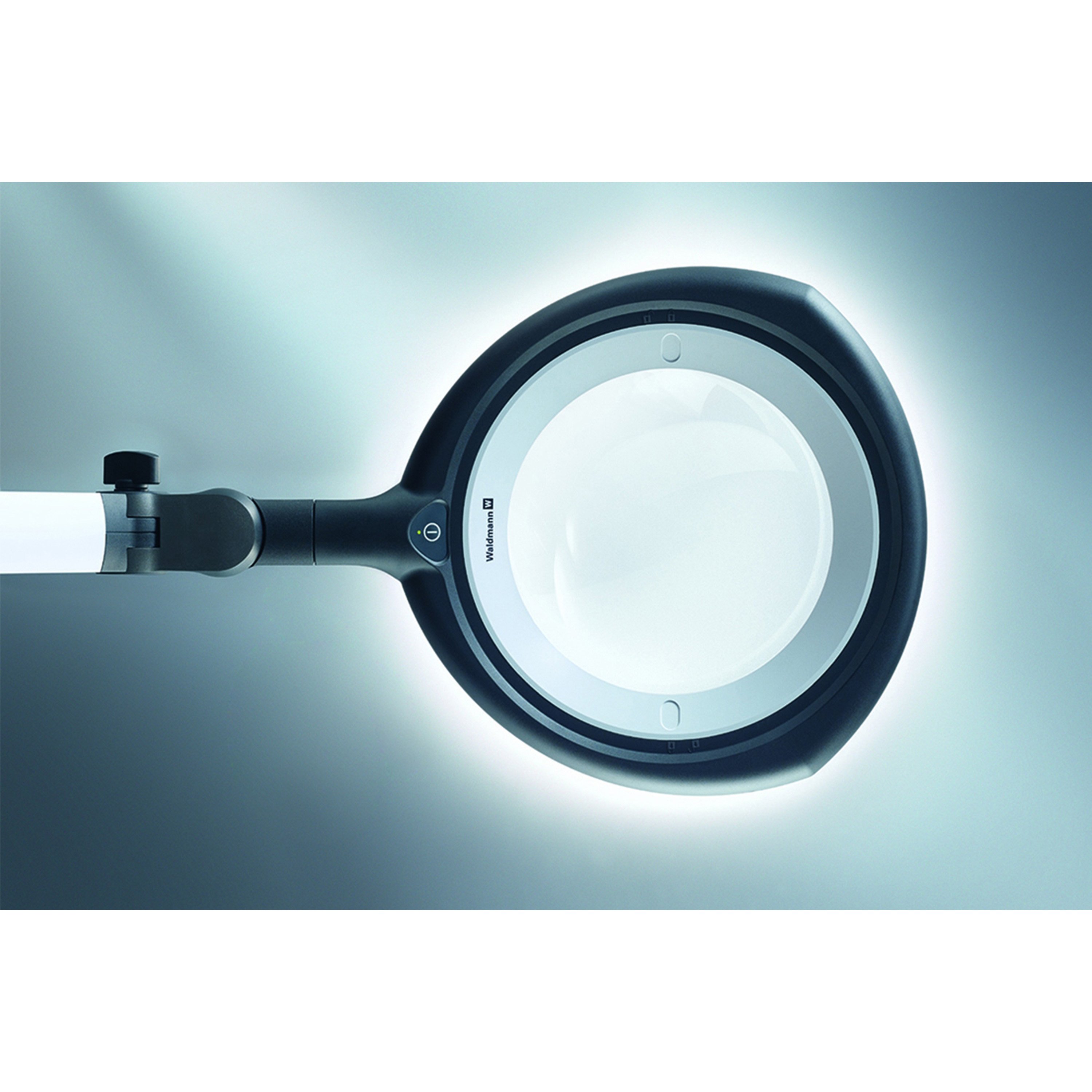

- Premium LEDs illuminate a 6.29″ diameter, wide-angle, scratch-resistant glass magnifying lens
- Multi-directional head joint for individual adjustment
- The touch panel on the head enables customization of the light output, easily dimmable from 100% to 10%, dimming by touch
- The touch panel integrated into the luminaire head is for turning on/off, dimming, or segment-switching
- Energy-efficient LEDs provide 50,000 hours of LED life while using just 13 watts of power
- 40% energy savings compared to fluorescents
- Light guidance via reflector
- Strong anodized aluminum housing

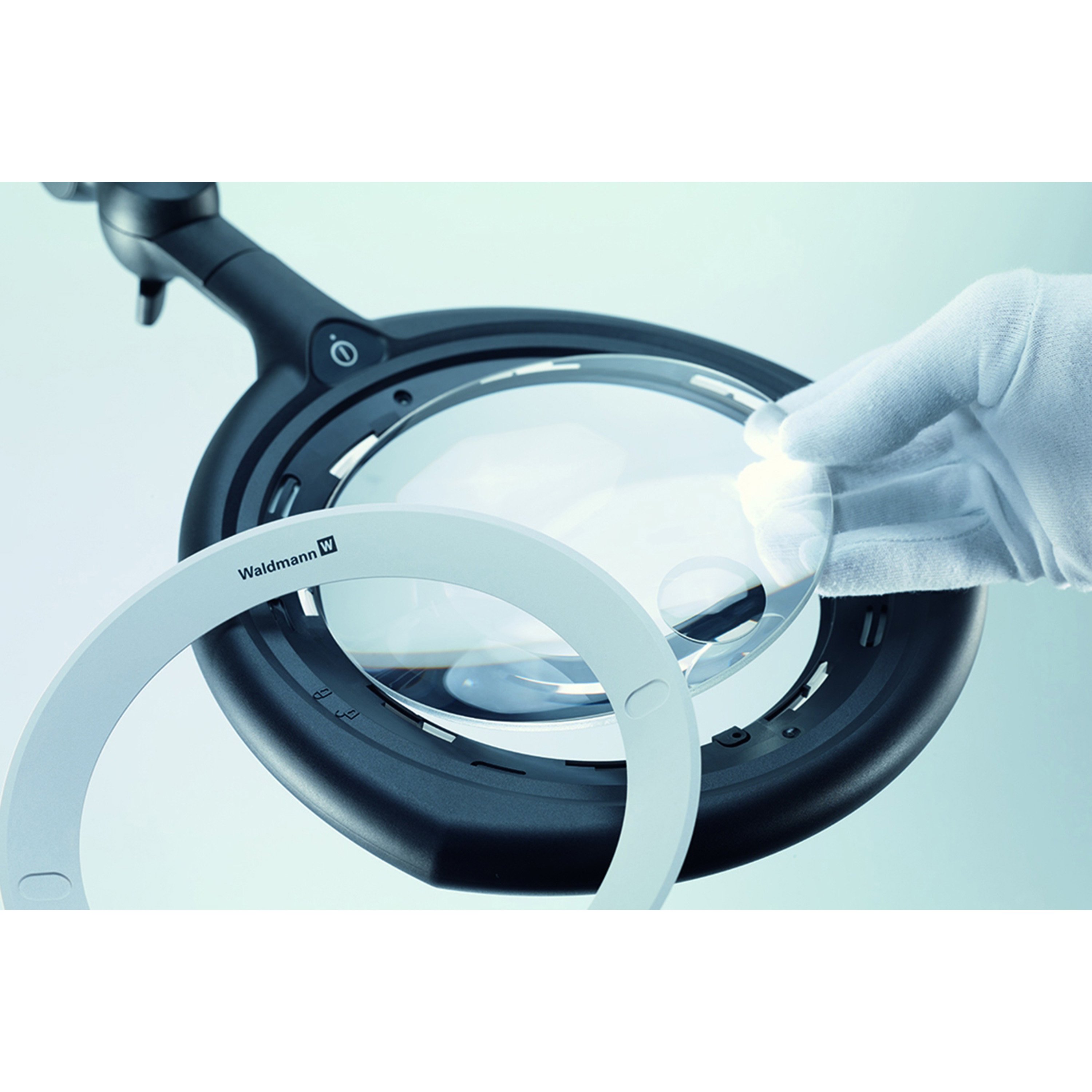

- Interchangeable 6D (2X) plastic lens available (Purchased Separately)
- Available in 31″ or 39″ arm length versions
Technical Data:
- Product Type: Magnifier Light
- IP Rating: IP 20
- Class of Protection: Class II
- Color Temperature: 5000K
- Color Rendering Index (CRI): ≥90
- Lumens: 750
- Luminous Efficacy: 57 lm/W
- Chromatically Tolerance LED: 3 SDCM
- Voltage: 100-240V AC
- Frequency: 50/60 Hz
- Wattage: 13W
- Average Life Hours: 50000
- Work Equipment: Electronic Plug-in Ballast
- Color Finish: Black/Silver
- Arm Type: Articulating, Double Arm
- Luminaire Body Material: Aluminum, Coloured Anodized
- Fitted With: LED
- Segment Switching: Yes
- Plug: BS 1363, CEE 7/XVI, NEMA 1-15P
- Certification:
- ETL/cETL Approved
- CE marked
- Magnifier/Lens:
- Size: 6.29" Diameter
- Material: Borosilicate Glass
- Strength: 3.5 Diopters
- Magnification: 1.88x+3x
- Actual Product Weight: 10.4 lbs
- Mounting Type: Screw-Down Flange (Included)
| SKU | Product Dimensions | Arm Length | Cord Length | Product Weight |
| 113713000-00805254 | 10.4" L x 10.4" W x 45.5" H | 31" | 11.81 ft. | 5.51 lbs |
| 113714000-00805256 | 10.4" L x 10.4" W x 53.4" H | 39" | 11.15 ft. | 6.61 lbs |
Specifications
| Manufacturer | Waldmann |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | Germany |
| Item Ships From | Illinois |
Literature
Product Video
Instructions
LIMITED WARRANTY: Waldmann warrants to the purchaser that for a period of five (5) years from the date of shipment (“Warranty Period”) of the qualified products, when delivered in new condition and in its original packaging, they will be free from defects in materials and workmanship and will conform to the published product specifications. Qualified product determined by Waldmann to be defective after return to Waldmann or to a service agent authorized by Waldmann during the Warranty Period will be, at Waldmann’s sole discretion and without charge to purchaser:
a.) Repaired utilizing new or comparable refurbished parts or;
b.) Exchanged for new or refurbished qualified product or;
c.) Refunded for the purchase price paid by purchaser for the defective qualified product.
Except where prohibited by law, the requirements under this Section shall be Waldmann’s sole obligation and liability to purchaser for claims under this Warranty. Qualified product that is repaired or replaced under this Warranty will continue to be covered for the longer of i.) one hundred eighty (180) days from the date of return shipment by Waldmann, or ii.) the remaining duration of the applicable Warranty period.
For Complete Warranty Details, please see the literature above.
Returns
Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 20% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
Custom made products are non returnable and non exchangeable.
