Waldmann TRIANGO 80-1 LED Procedure Light
Product Description
This TRIANGO 80-1 LED Procedure Light brings this innovative technology to the procedure & exam area. With its advanced thermal management system, integrated dimming controls, brilliant light output, and compact housing, TRIANGO 80 meets the stringent requirements of both hospital designers and practitioners.
Features:

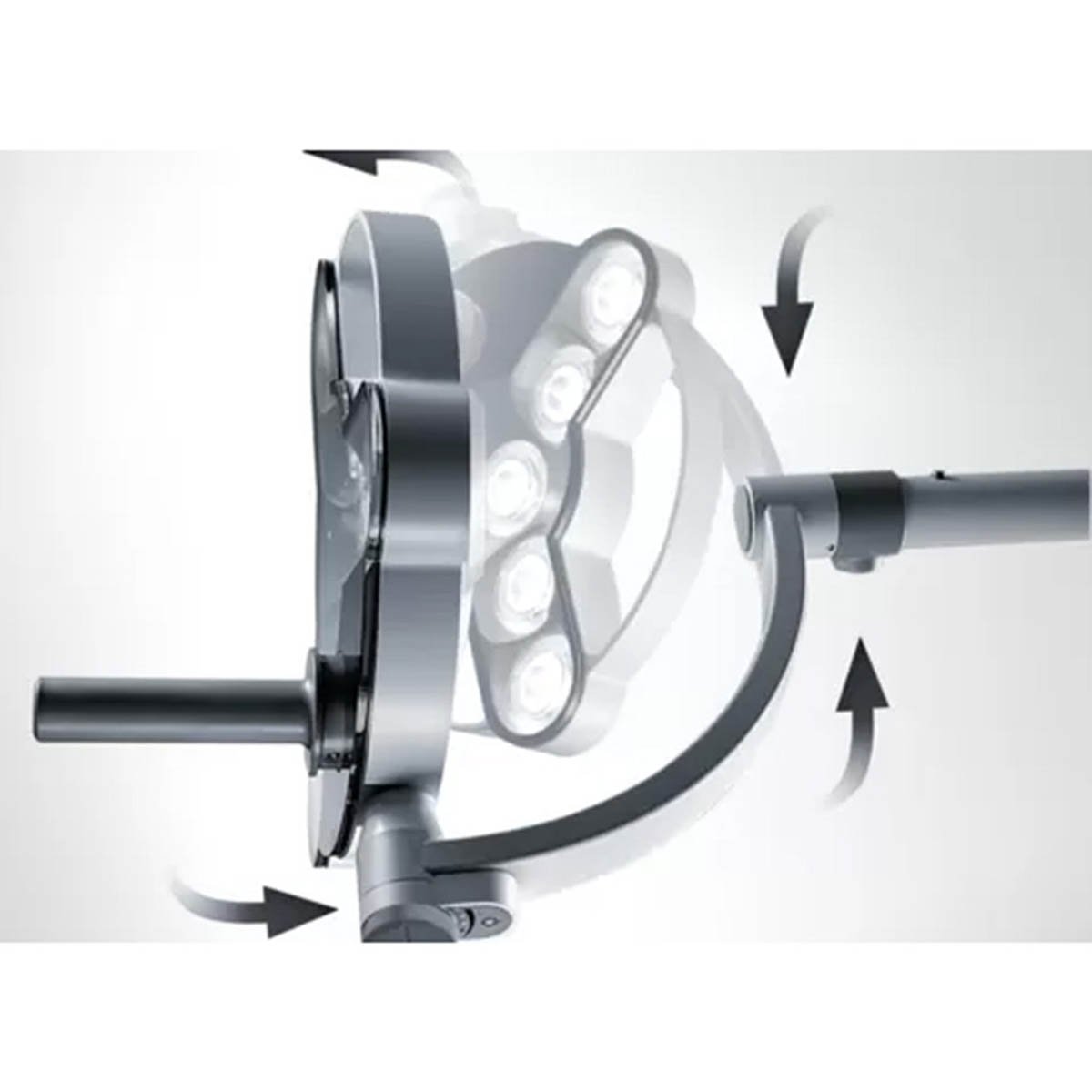

- LED technology provides high-performance lighting for procedure areas. Its intricate design and robust materials enable a broad range of movement and easy positioning of the fixture

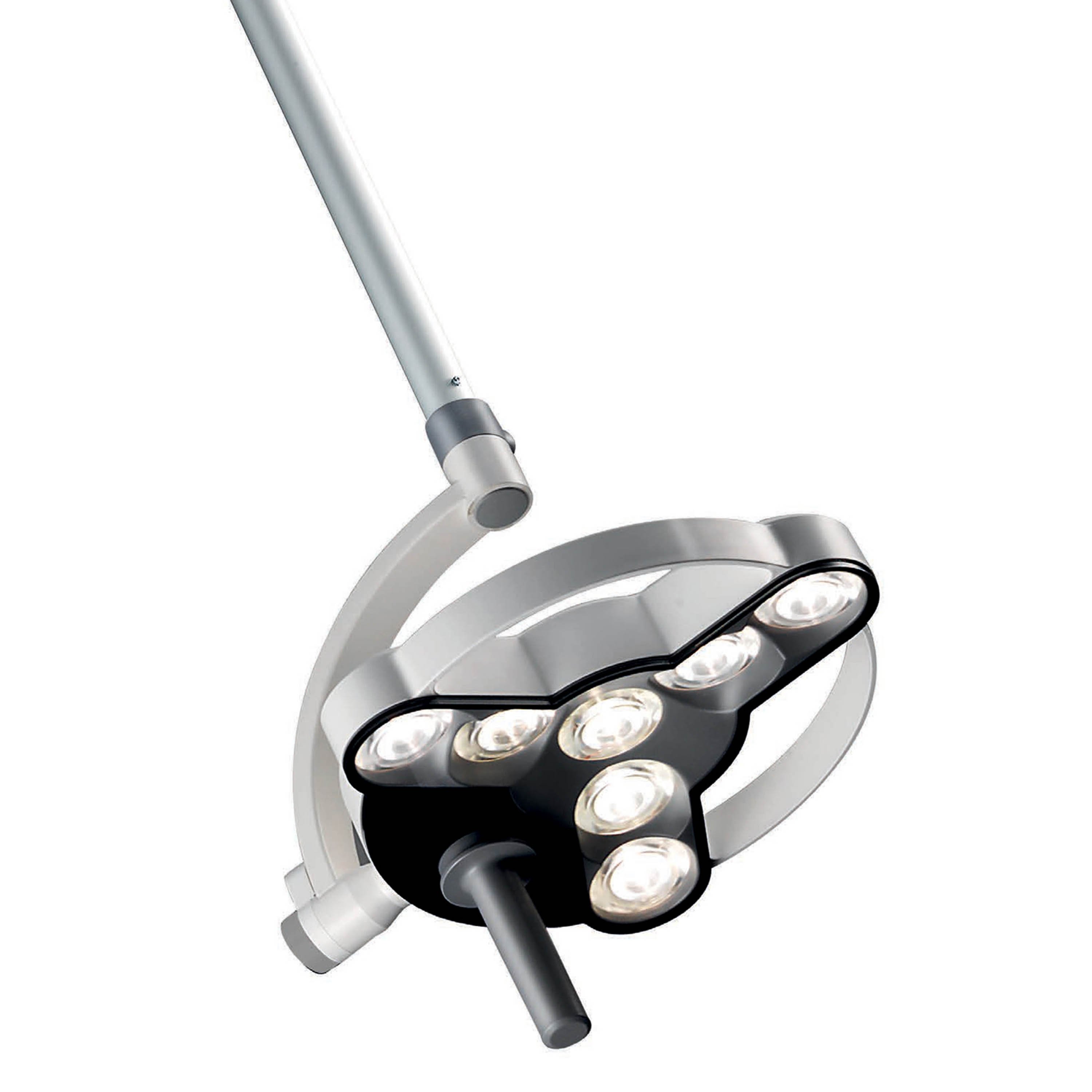

- Its unique optic developed by Derungs ensures an optimal light field. The illuminated area meets the highest technical lighting requirements for procedure lights
- Optics are used to create an environment free of shadows, reflections, and glare
- It offers excellent color rendering with a Ra value greater than 95 and an R9 value greater than 90. This high level of color accuracy allows for clear recognition of variations or irregularities in tissue during procedures
- The light beam remains focused and glare-free from any angle of sight, avoiding bothersome reflections on the surface
- LED technology provides long periods of maintenance-free usage, eliminating the need for bulb replacement throughout the fixture's lifetime
- Long lamp life of 50,000 hours
- High-quality components ensure a durable and user-friendly luminaire. Derungs utilizes only top-of-the-line materials to maximize the benefits of its product

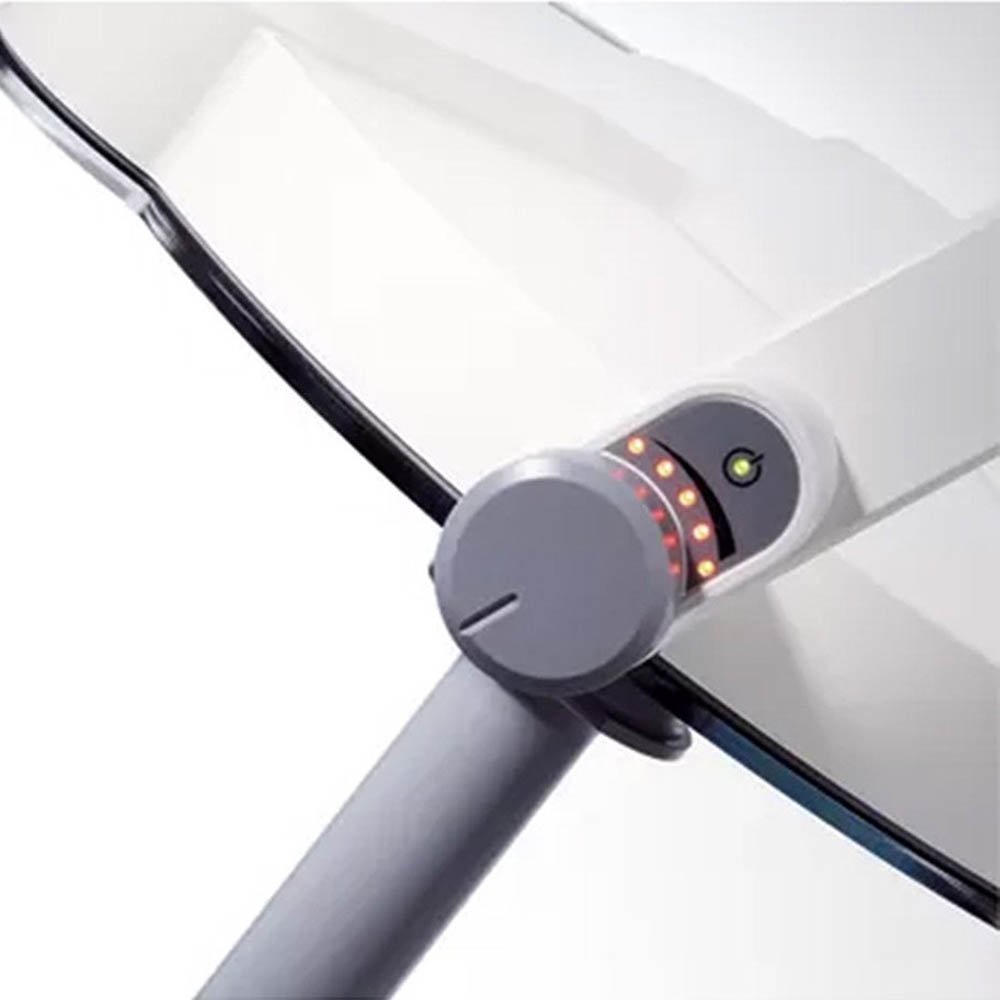

- The easy operation of the TRIANGO 80 includes a single control that switches the light on and off and dims it with five different light levels. This provides practitioners with quick and convenient control, essential for performing various procedures throughout the day

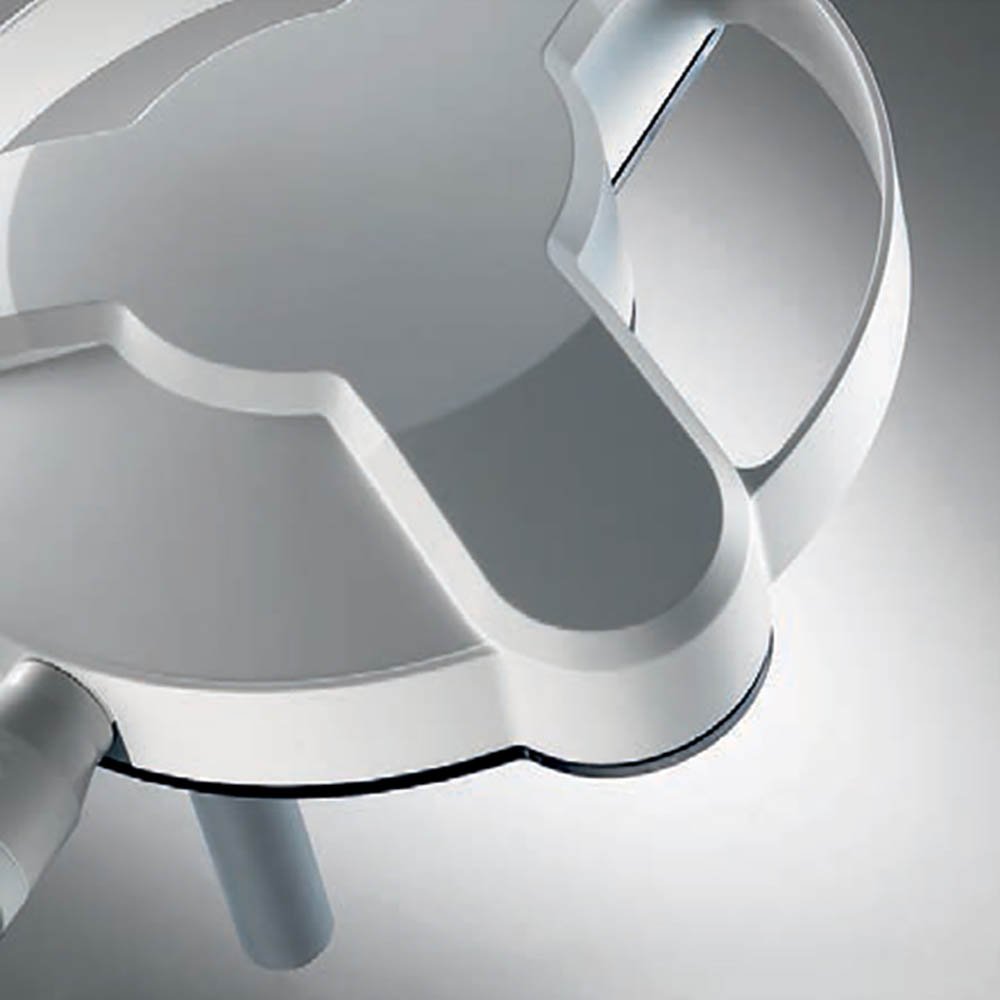

- Its closed construction and smooth surface facilitate quick and thorough cleaning, preventing the penetration of dust, dirt, or liquids

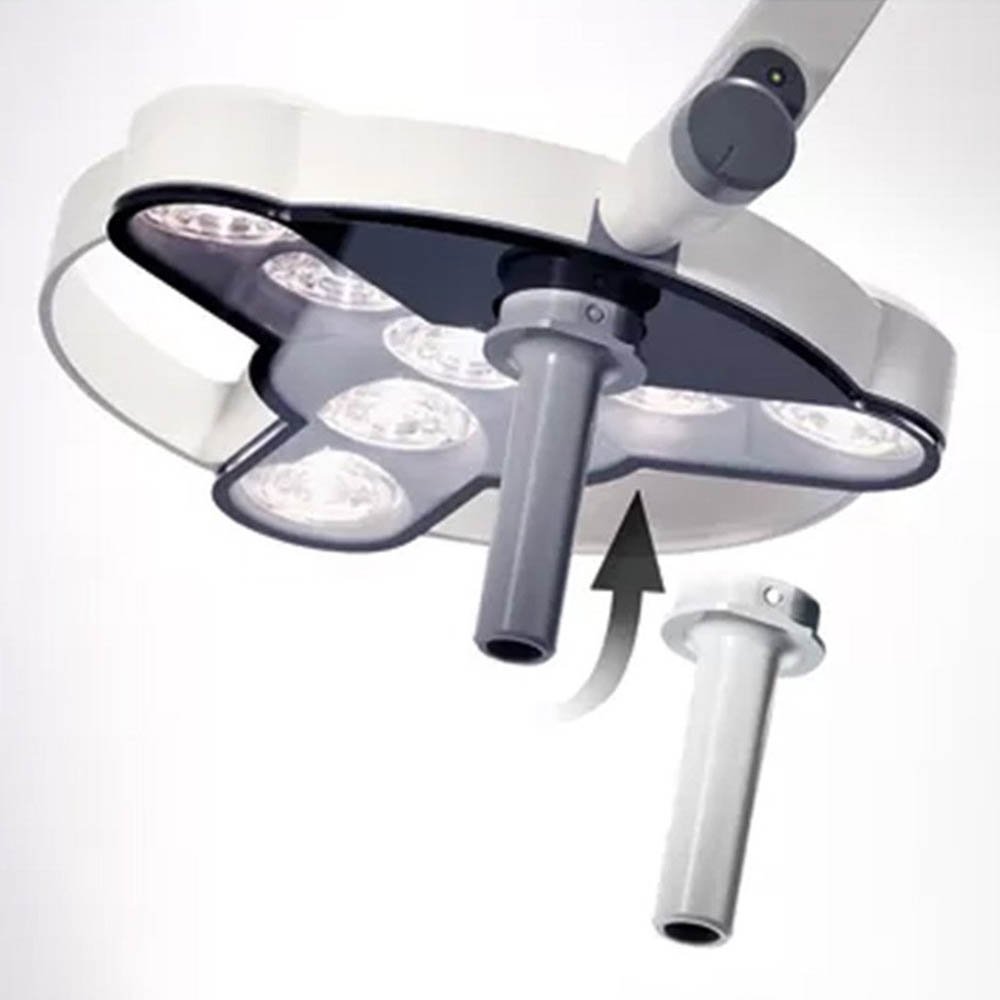

- Removable and sterilizable handle
- An ideal working environment for a physician during a procedure includes clear, glare-free light with minimal infrared or UV radiation, and no heat radiation
Technical Specifications:
- Product Type: Procedure Light
- IP Rating: IP 20 (Luminaire Body), IP 43 (Luminaire Head)
- Class of Protection: Class I
- Color Temperature: 4300K
- Color Rendering Index (CRI): ≥95
- Lighting Field 1.0 m: ø 7.1"
- Depth of Illumination L1 + L2: 1.24 m
- Lux: 60000
- Voltage: 100-240v AC
- Wattage: 30W
- Average Life Hours: 50000
- Work Equipment: Electronic Converter
- Color Finish: White
- Arm Type: Articulating
- Lens and Luminaire Body Material: Polyamide
- Fitted with: LED Category A+
- Cord Length: 5.9 ft for all except for D16138000 (wired to the ceiling) and D16139000 (wired to the wall)
- Plug Type: US-HG
- Certifications:
- AAMI/IEC 60601-1; CAN/CSA-C22.2 60601-1
- IEC 60601-2-41; CAN/CSA-C22.2 60601-2-41
- AMD 1/IEC 60601-1-6; CAN/CSA-C22.2 60601-1-6
- Dimming: Continous
| SKU / Model | Mounting Type | Product Dimensions | Product Weight |

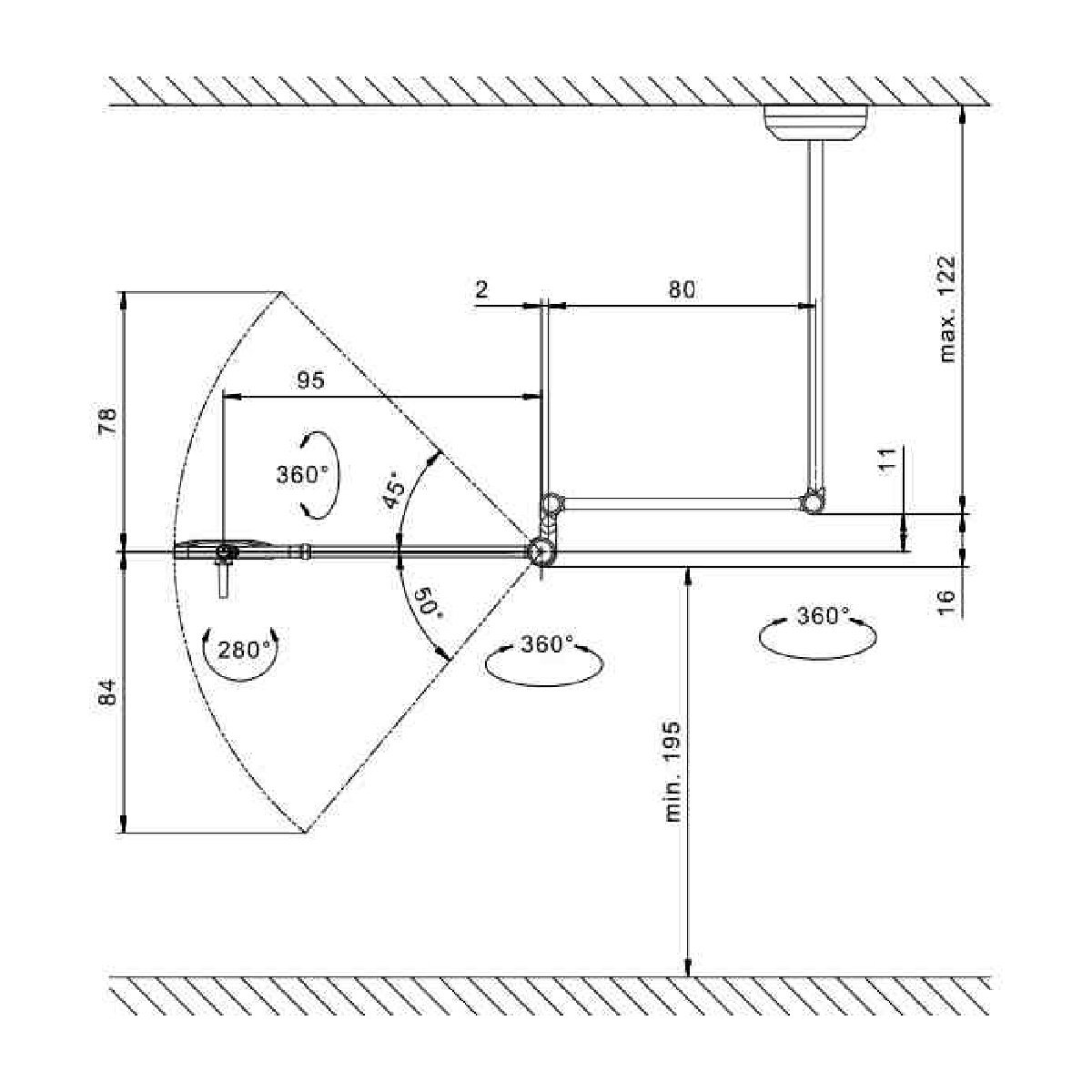

| D16138000 / 80-1 C | Ceiling Mounted | 11.8" L x 11.8" W x 54.3" H | 30.9 lbs |

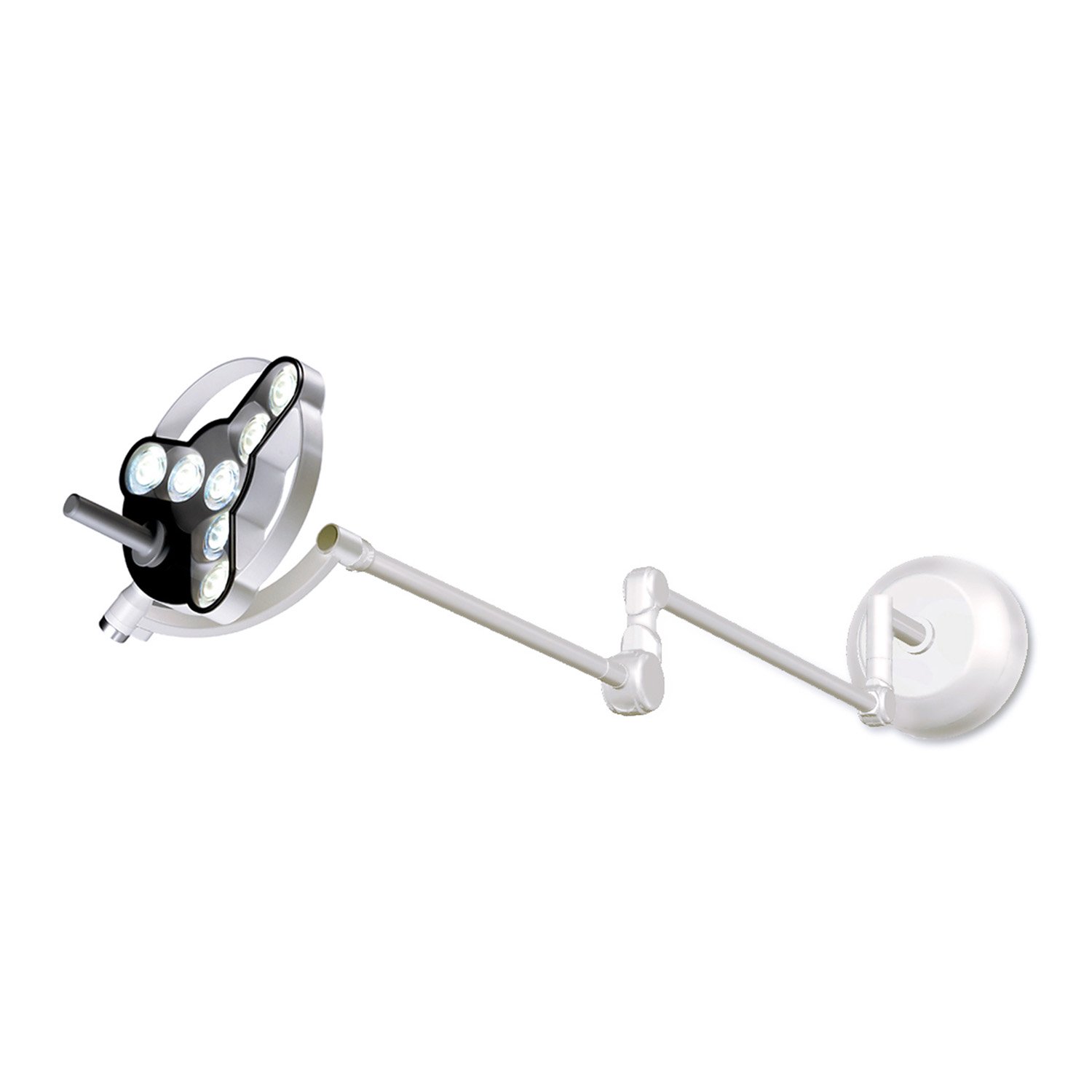

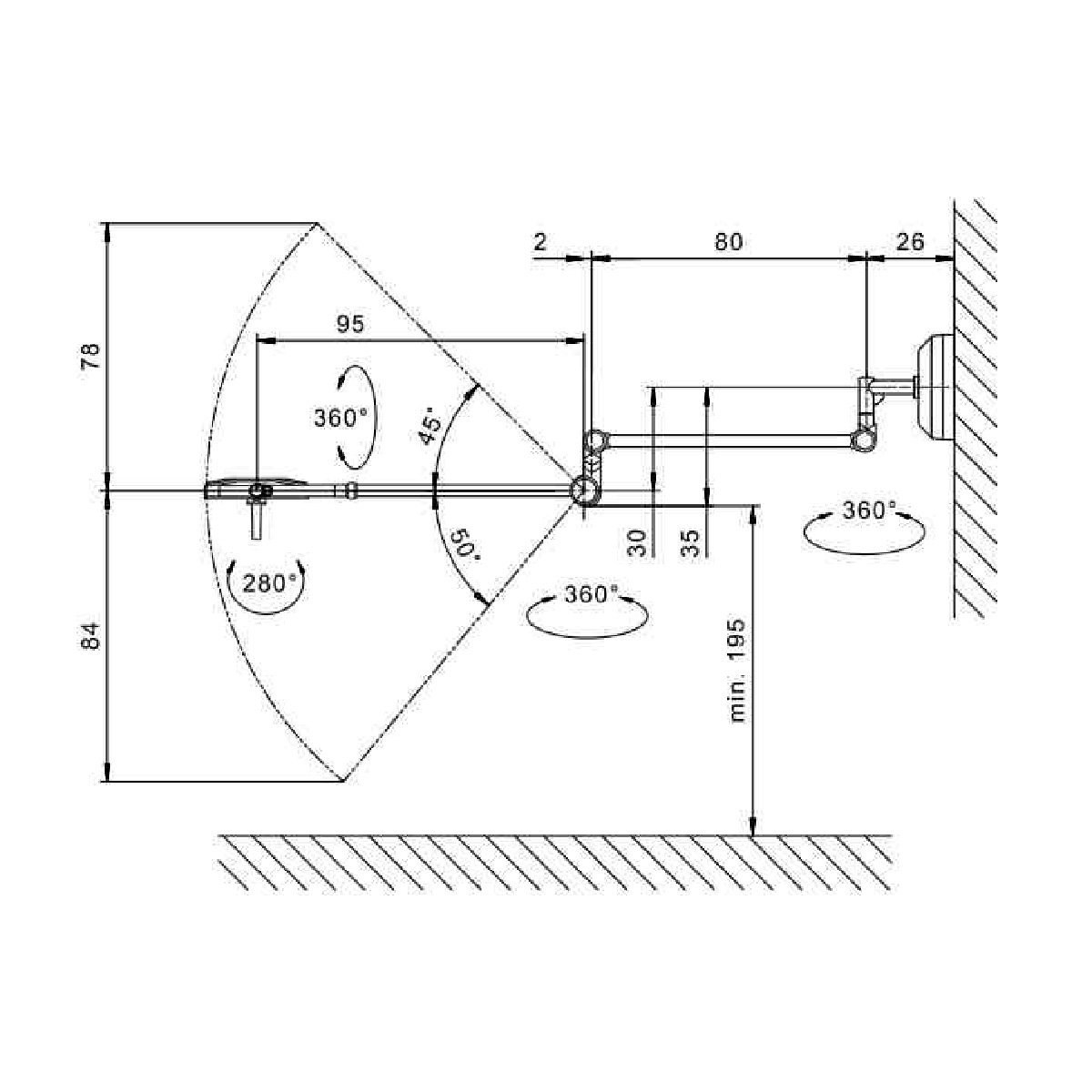

| D16139000 / 80-1 W | Wall Mounted | 11.8" L x 11.8" W x 81.5" H | 29.8 lbs |

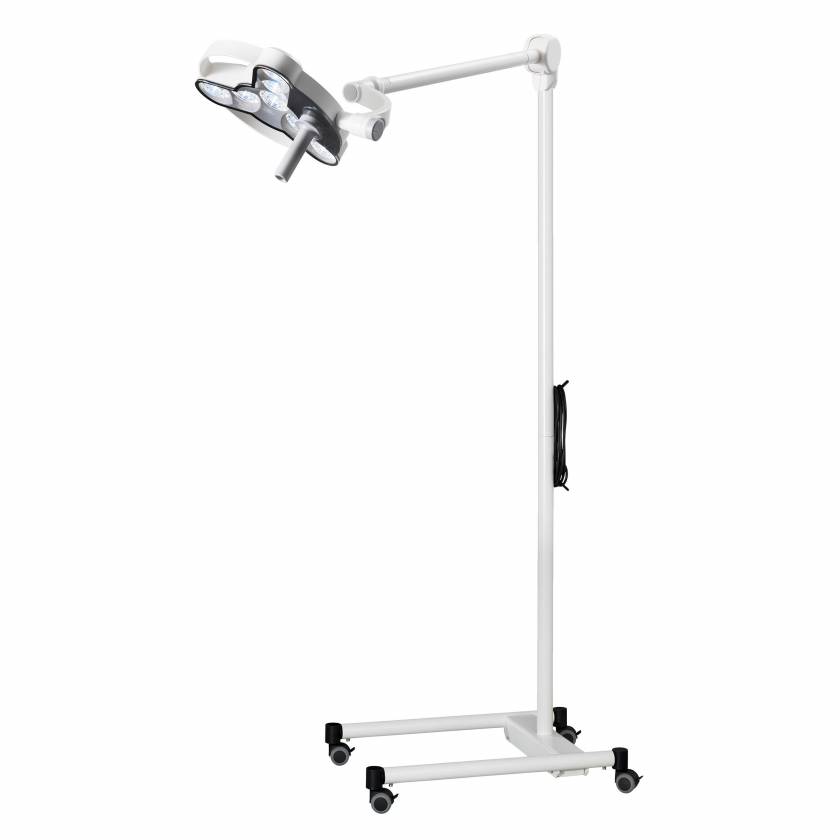

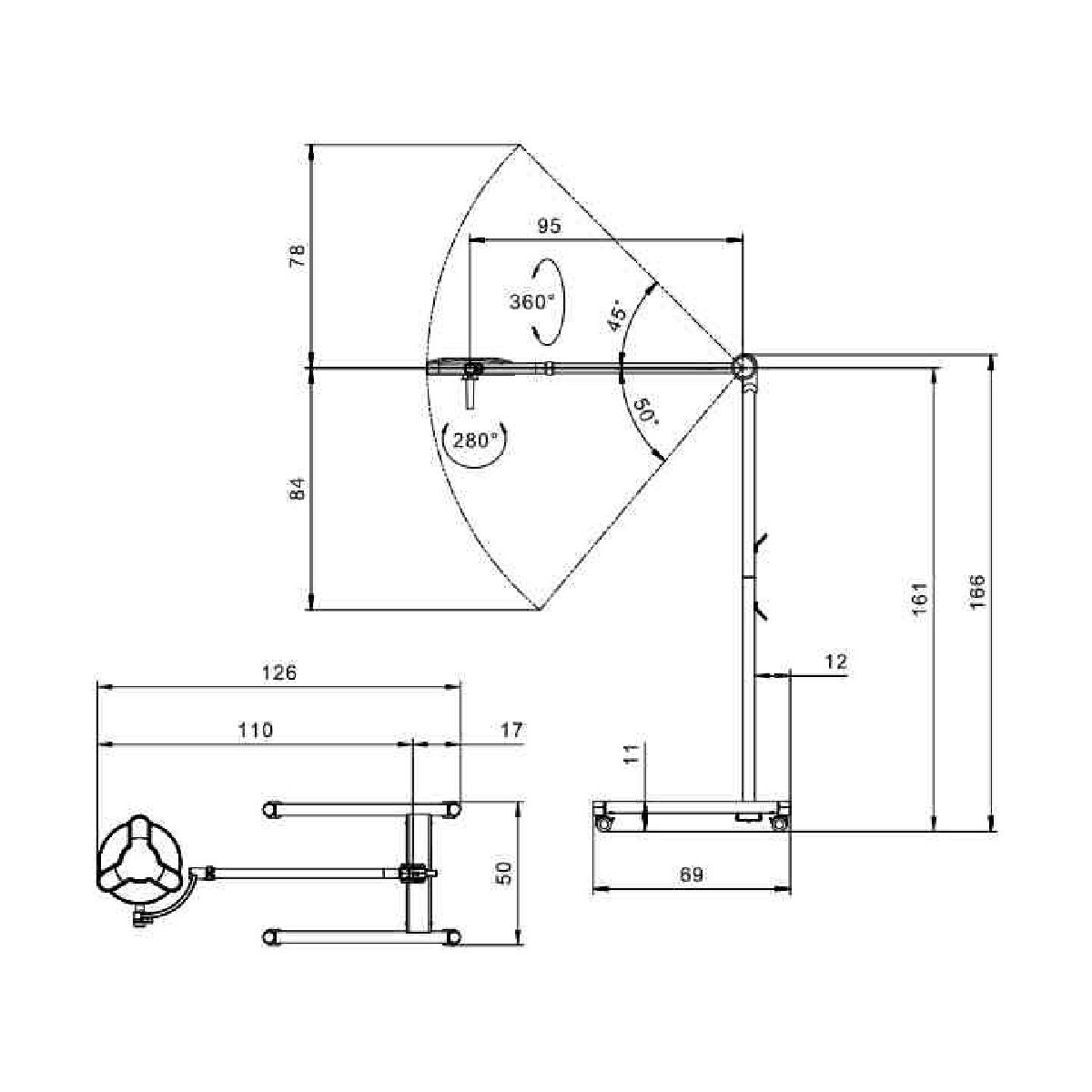

| D16135000 / 80-1 F | Rolling Stand Mounted | 11.8" L x 11.8" W x 65.4" H | 44.1 lbs |

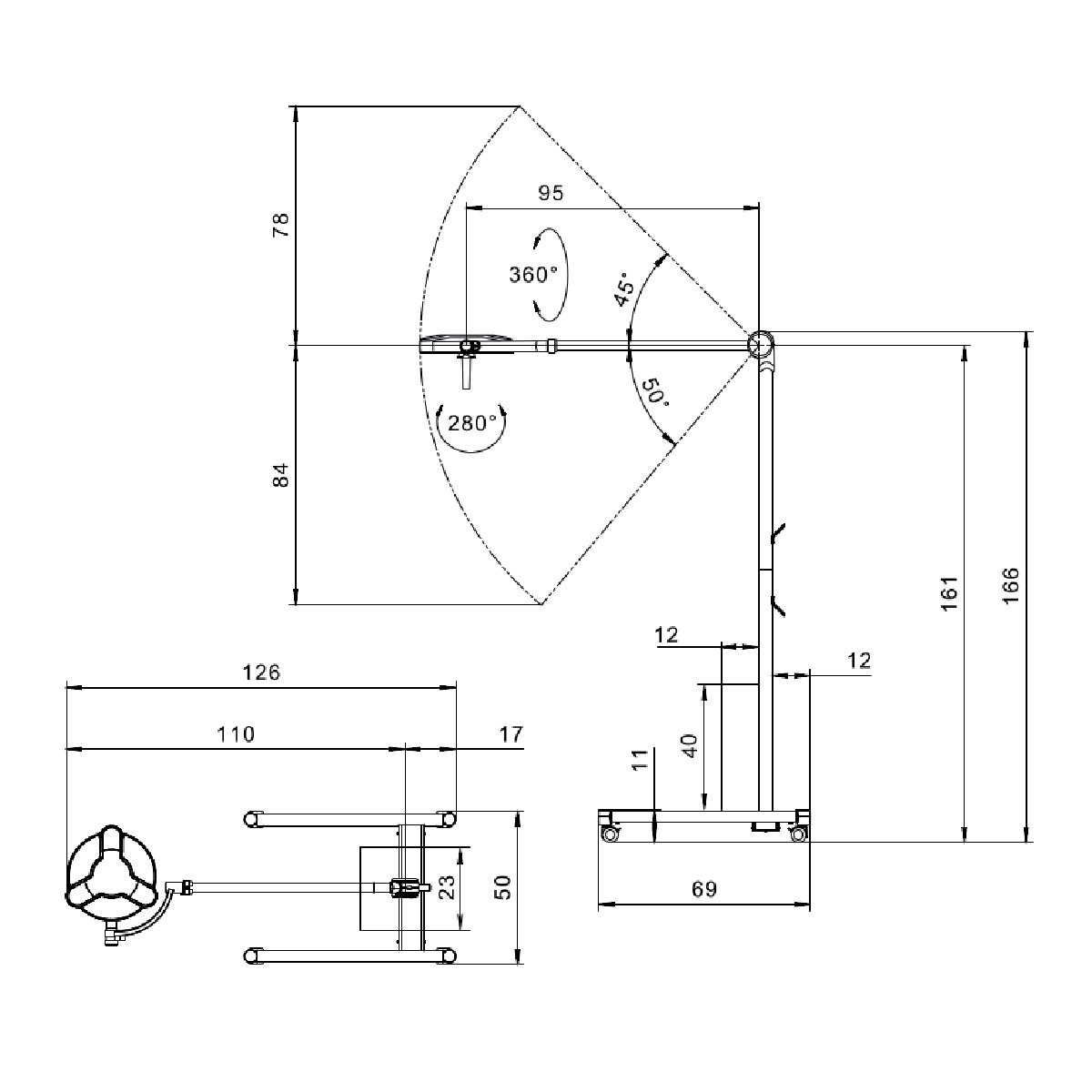

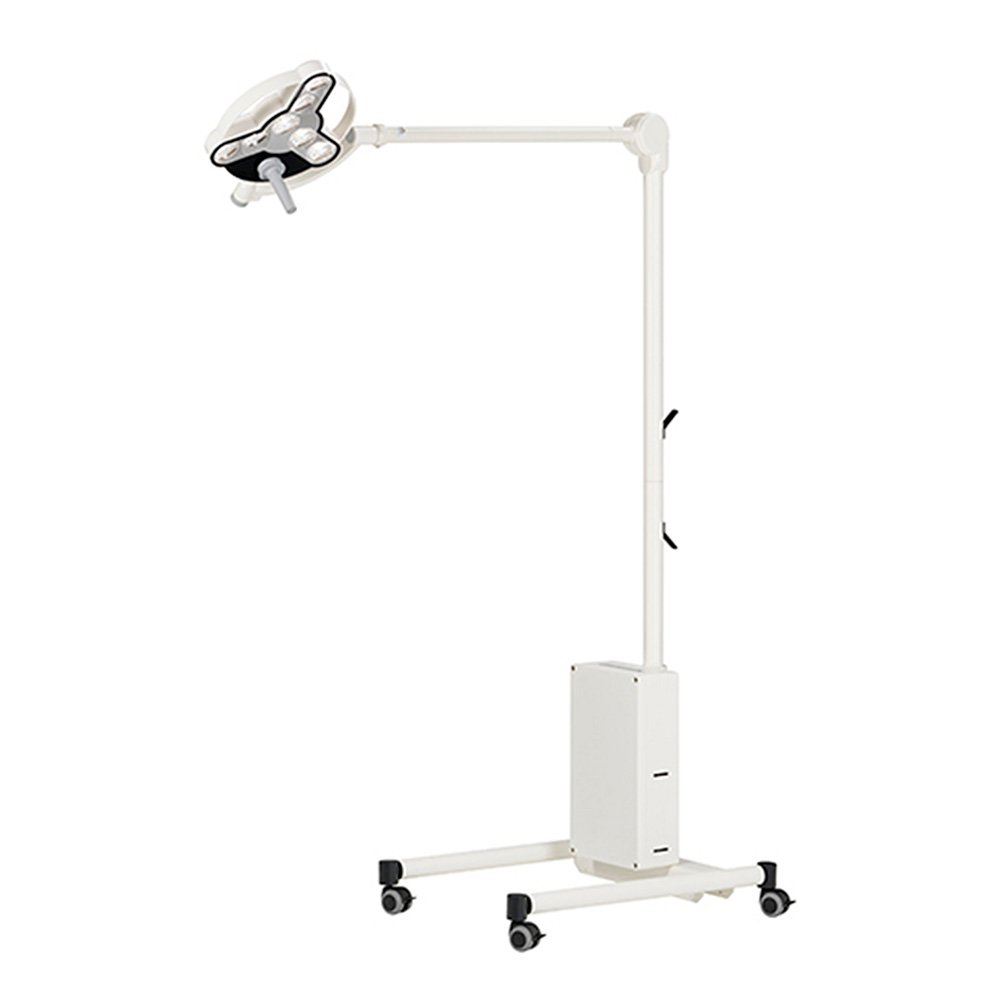

| D16220000 / 80-1 F Battery | Rolling Stand with Battery | 11.8" L x 11.8" W x 65.4" H | 70.5 lbs |
Specifications
| Manufacturer | Waldmann |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | Germany |
| Item Ships From | Illinois |
