Waldmann Visiano 20-2 LED Exam Light with 42.5" Articulating Double Arm
Product Description
The Visiano 20-2 LED Exam Light with 42.5" Articulating Double Arm boasts superior light quality and easy handling, making it the ideal choice for medical exams and procedures. With an extremely high natural color rendering (CRI > 95), 60,000 lux, and the ability to easily switch between color temperatures (3500K and 4500K), as well as four dimming levels, this luminaire offers exceptional flexibility. It suits numerous medical specialties, including general medicine, dermatology, gynecology, urology, neonatology, intensive care, and anesthesia. Unique to this luminaire category is the integrated Sanitized® hygiene function.
Features:
- Safe and easy cleaning using a disinfectant spray with an IP43-rated enclosed system that prevents dust and liquids from entering the lighthead
- Provides a full 360° rotational axis at the luminaire head for ease of movement and precise positioning during procedures
- The unique light head design, diamond optics, and premium LEDs ensure an evenly lit light field and high illuminance level (60,000 lx/0.5 m) as well as excellent color rendering (CRI>95)
- Unique diamond optic technology offers low energy consumption, glare-free, shadow-free, and heat-free high illumination with excellent color homogeneity
- Optimal contrast vision with warm white or neutral white LEDs for precision
- Offers four dimming levels for customizable brightness according to specific needs
- Intuitive and ergonomic design with an easily accessible membrane keyboard, allowing for straightforward one-handed operation
- Low power consumption with 16 premium LEDs and integrated converter, maintenance-free housing
- Strong, aluminum frame and spring-balanced friction joints
- Versatile mounting options include ceiling-mounting, pin-mounting on tables, walls, or rails, and compatibility with a rolling floor stand
Technical Specifications
- Product Type: Exam Light
- IP Rating: IP20
- Color Temperature: 3500K and 4500K, with the ability to switch between these temperatures.
- Color Rendering Index (CRI): ≥95
- Lumens: 60000
- Voltage: 100-240V AC
- Wattage: 21W
- Average Life Hours: 50000
- Work Equipment: Electronic Converter
- Color Finish: Grey/White
- Arm Length: 42.5"
- Arm Type: Articulating
- Lens Material: Polycarbonate
- Luminaire Body Material: Acrylonitrile Butadiene Styrene Copolymer
- Operation: Membrane Keypad
- Fitted with: 1 x LED module
- Plug: Hospital Grade
- Cord Length: 5.9 ft for all except for D15594000 (it is wired to the ceiling)
- Certification:
- ETL / cETL
- EN 60601-1
- EN 60601-2-41
| SKU / Model | Mounting Type | Product Dimensions | Product Weight | Class of Protection |

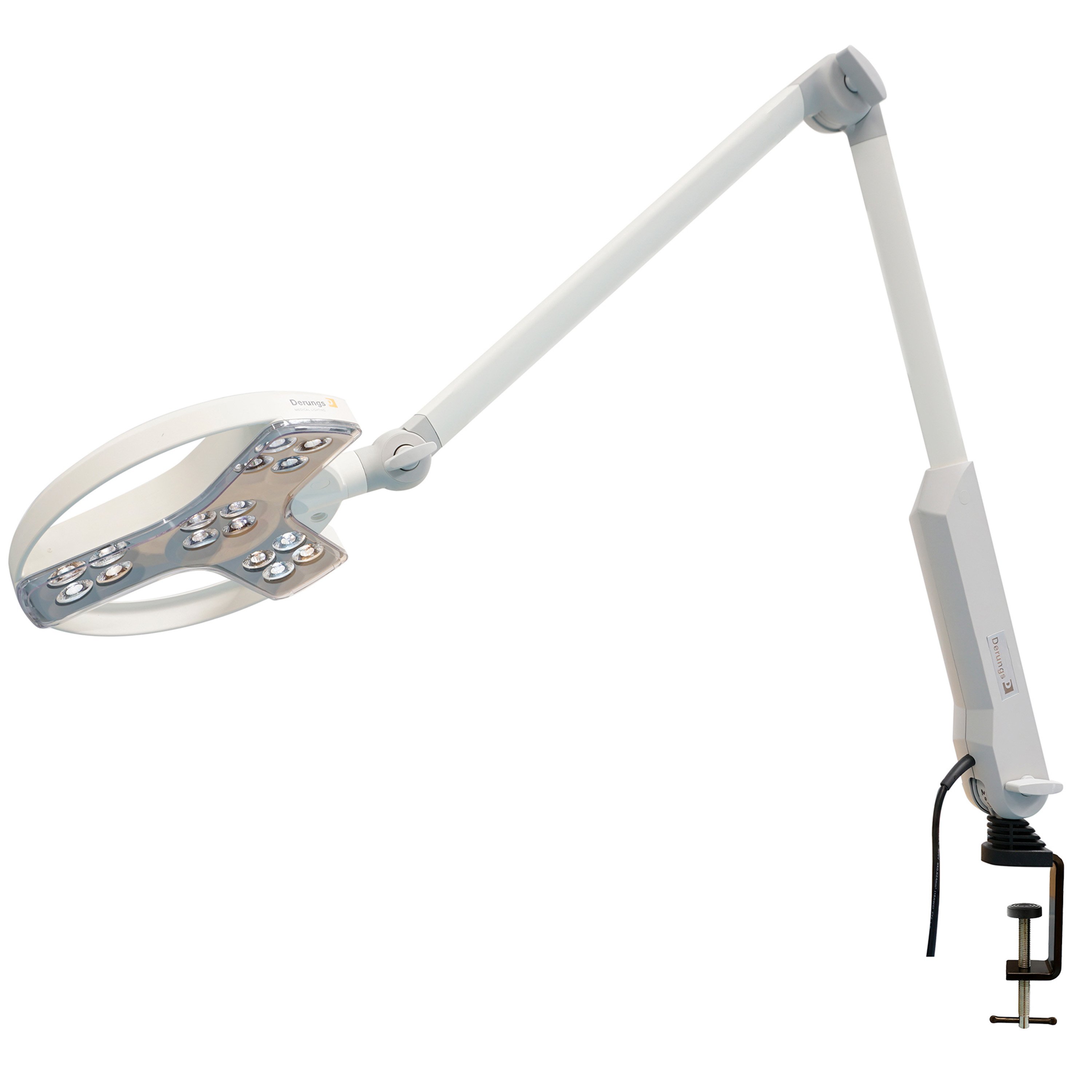

| D15461100 / P TX | Table Clamp | 9.4" L x 9.4" W x 42.5" H | 4.4 lbs | Class II |

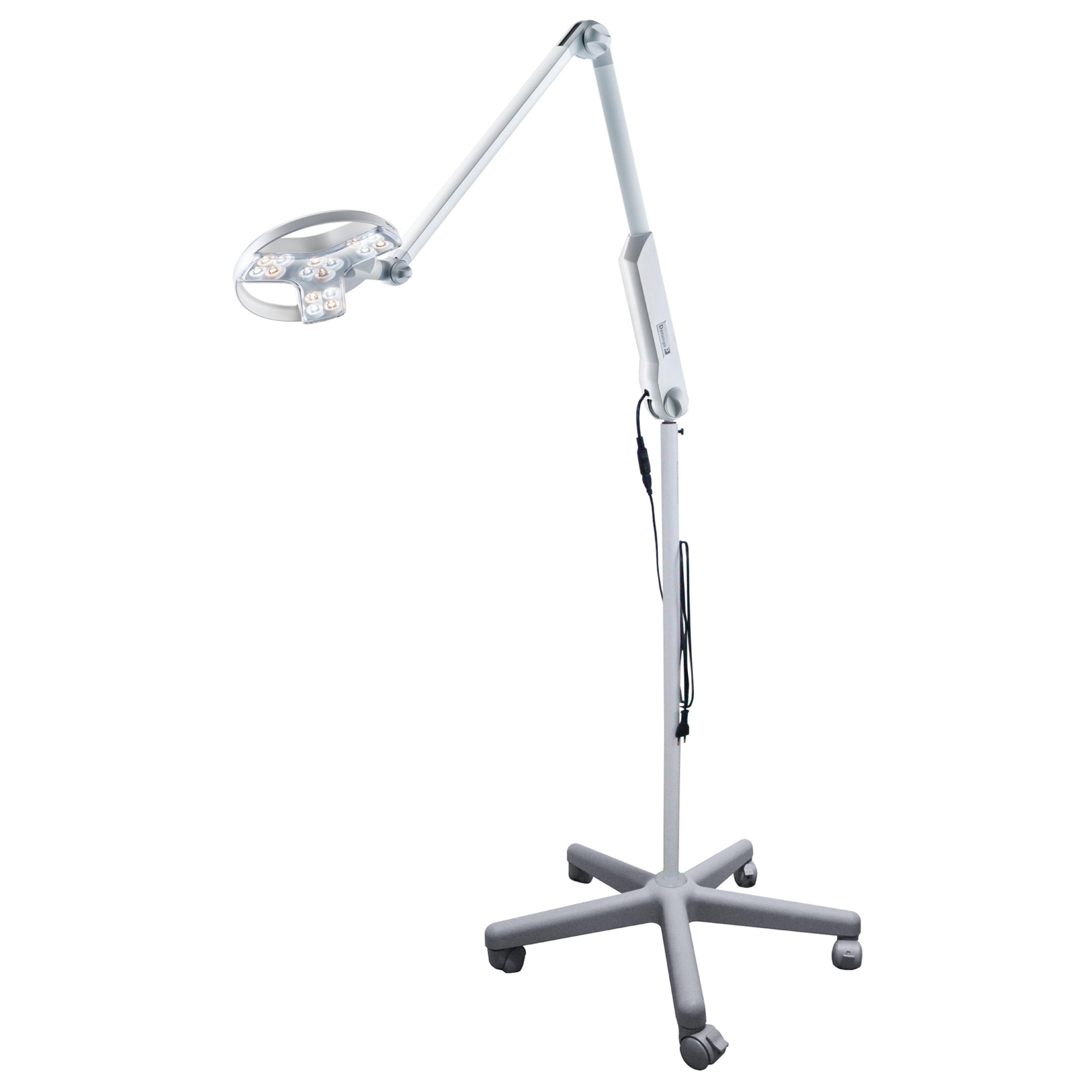

| D15461110 / P TX | Rolling Stand | 9.4" L x 9.4" W x 42.5" H | 4.4 lbs | Class II |
| D15461120 / P TX | Wall Mount | 9.4" L x 9.4" W x 42.5" H | 4.4 lbs | Class II |
| D15461150 / P TX | Rail Mount | 9.4" L x 9.4" W x 42.5" H | 4.4 lbs | Class II |

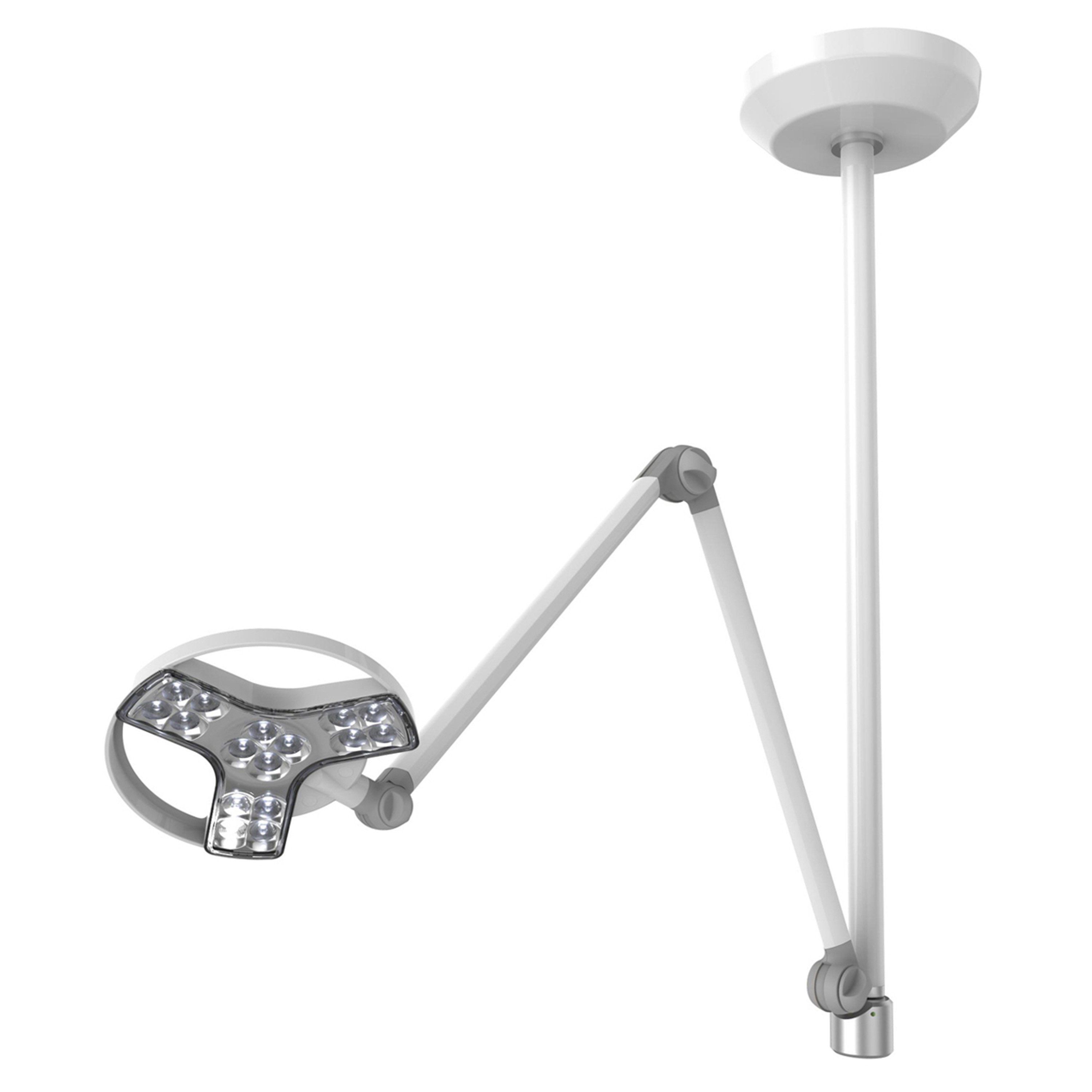

| D15594000 / C T1 | Ceiling Mount | 9.4" L x 9.4" W x 45.7" H | 19.8 lbs | Class I |
Specifications
| Manufacturer | Waldmann |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | Switzerland |
| Item Ships From | Illinois |
