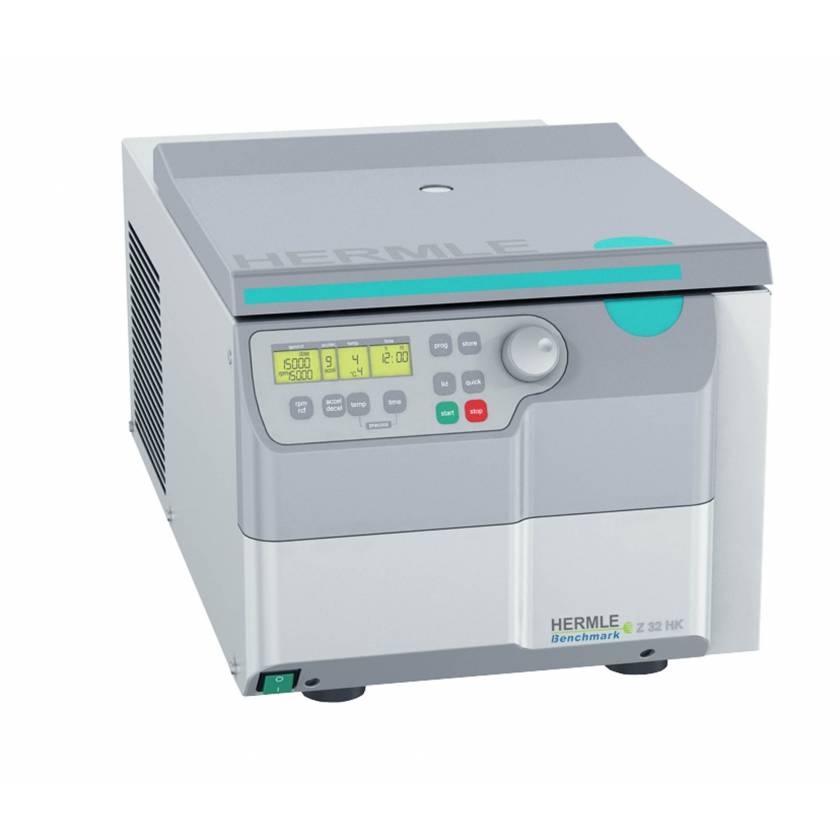

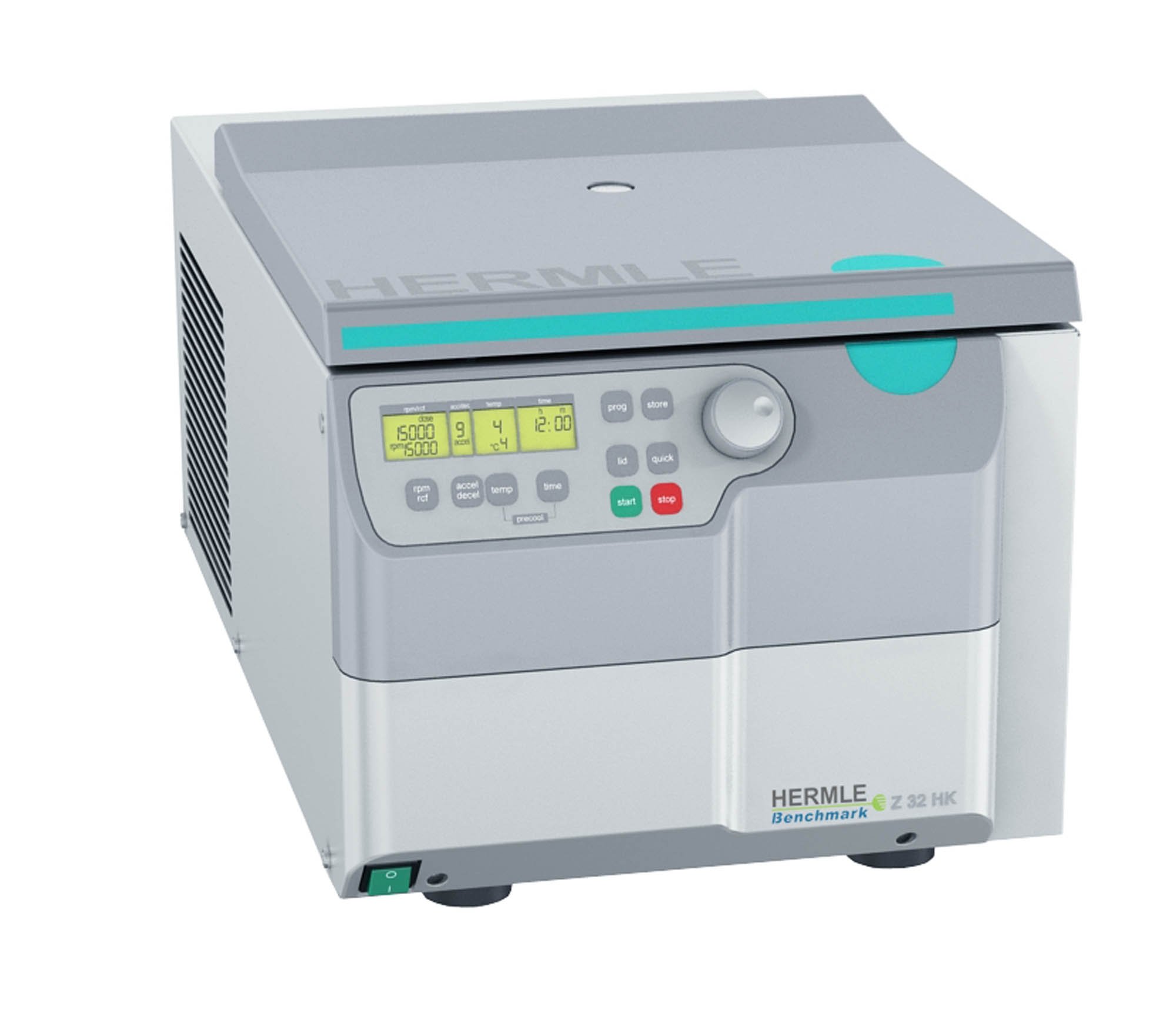

Z32-HK Refrigerated Centrifuge

• Compact, Super Speed Centrifuge, up to 38,007 xg
• Also accepts a variety of low speed swing out rotors
• Powerful Refrigeration

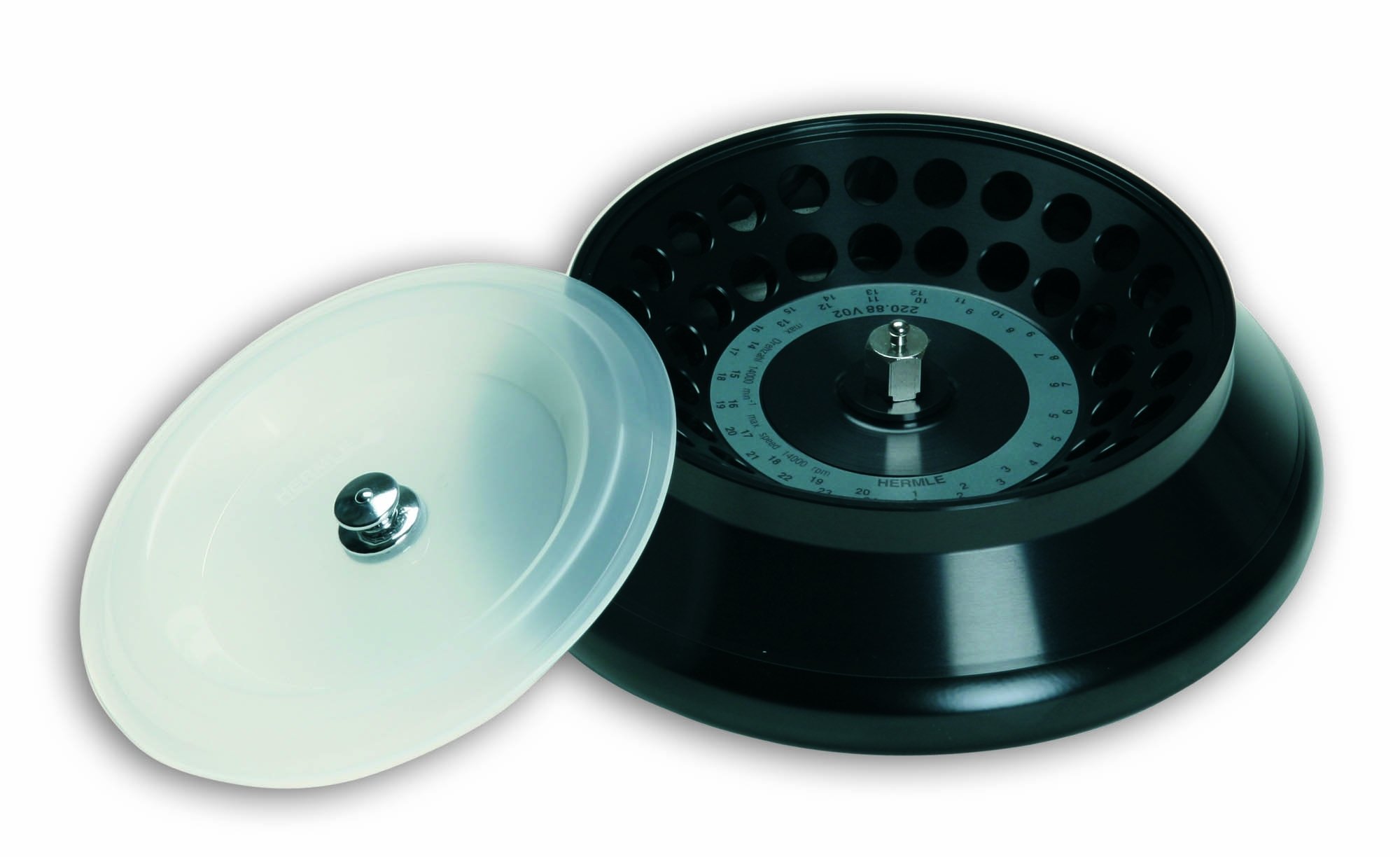

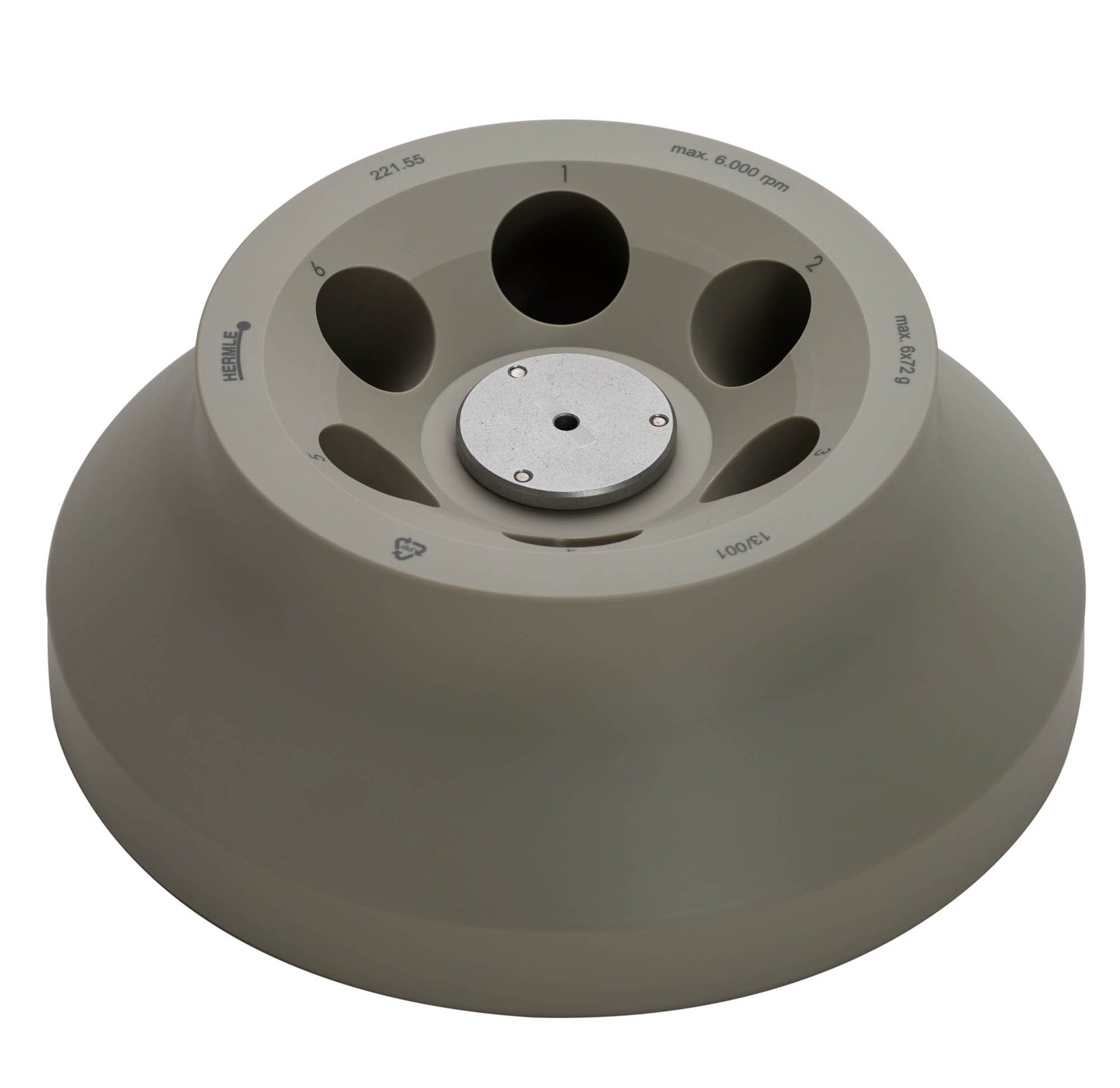

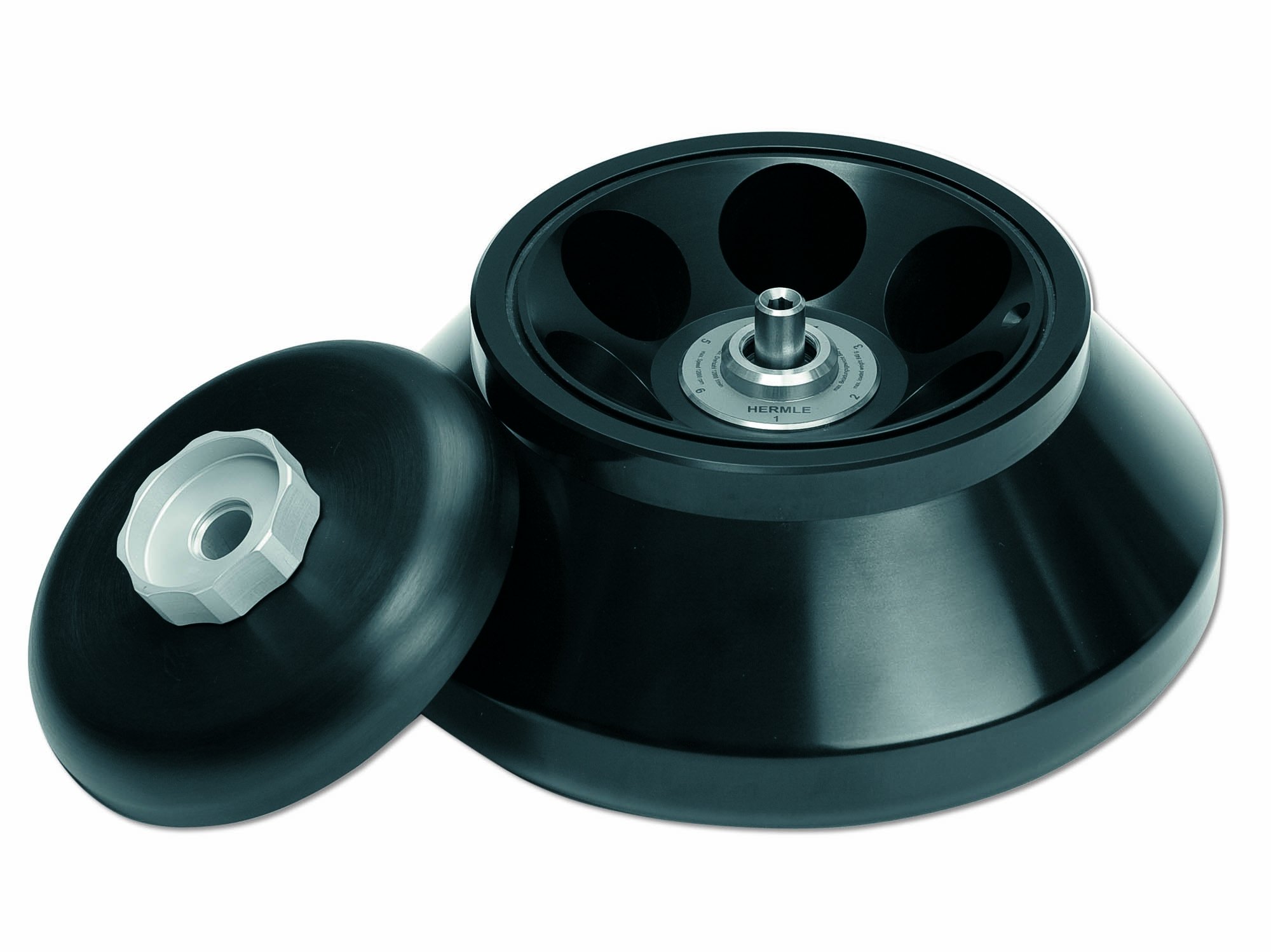

The Z32 HK utilizes much of the technology of our popular Z326 series, with a larger and more powerful motor drive, providing increased speed up to 20,000 rpm (38,007 xg). With 16 available rotor options, the Z32 HK is not only ideal for high speed separations, it would also be classified as a “universal” centrifuge, offering economy angled and swinging bucket rotors for lower speed applications. Tubes from 0.2ml up to 85ml can be accepted, and rotors can quickly be exchanged without any required programming, utilizing the instant rotor identification system.

Despite an impressive capacity of up to 4 x 145ml (or 6 x 85ml), the Z32-HK is surprisingly compact. The refrigeration system is conveniently located behind the rotor chamber, resulting in narrow design of less than 16 inches wide. Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.

Technical Data:

• Speed Range: 200 to 20,000 rpm
• Max. RCF: 38,007 xg
• Max. Capacity: 4 x 145ml
• Temp. Range: -20°C to 40°C
• Running Time:
  • 59 min 50 s / 10 s increments
  • 99 h 59 min / 1 min increments
• Dimensions (WxDxH): 15.7 x 27.5 x 14.1 in. (39.9 x 69.9 x 35.8 cm)
• Weight: 156 lbs (71 kg)
• Electrical: 120V, 60HZ, 1200W
